Acute Treatment

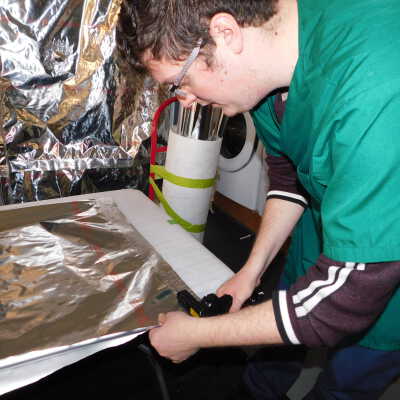

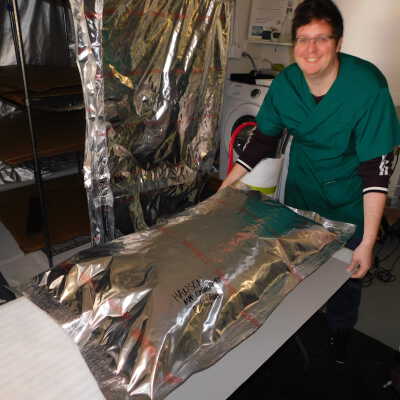

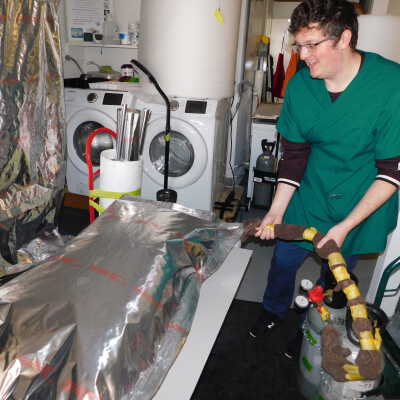

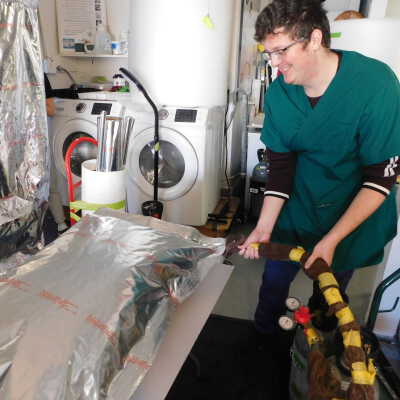

CO2 AnoxiaDate(s)
Jan 25, 2019 - Feb 25, 2019Treatment Notes

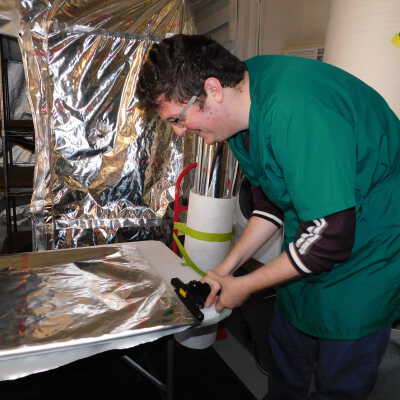

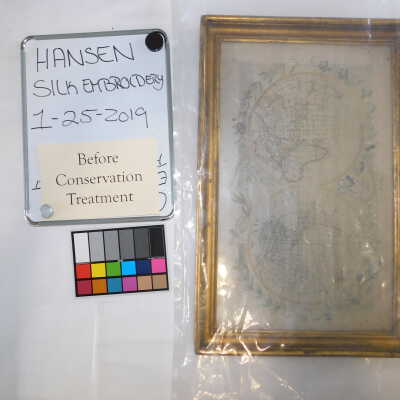

Anoxia bubble made for frame and silk to remove silverfish and insect eggs.Acute Treatment

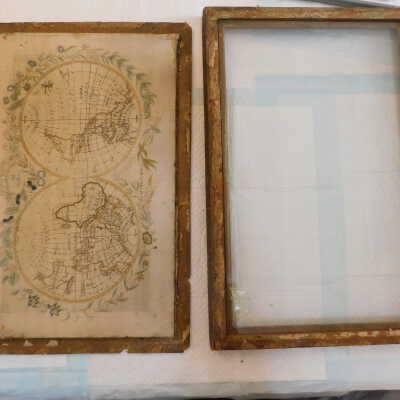

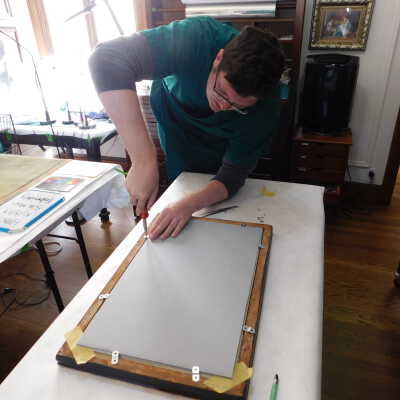

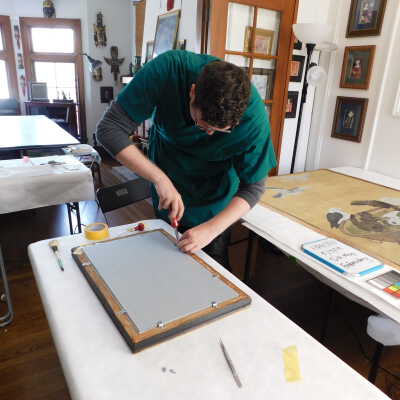

DisassembleDate(s)
Feb 25, 2019 - Feb 26, 2019Treatment Notes

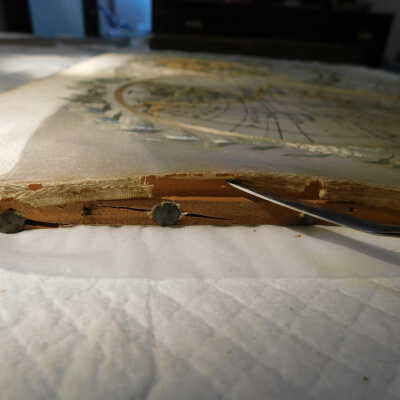

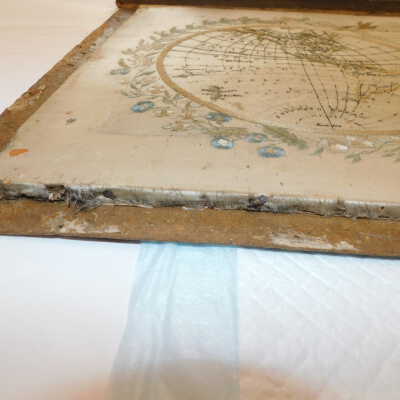

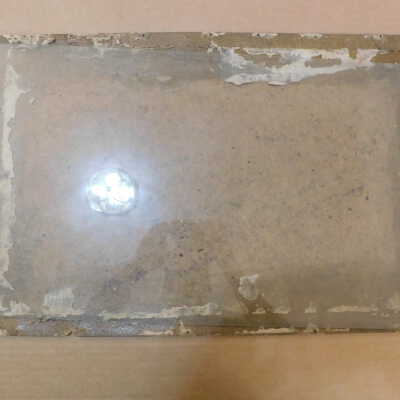

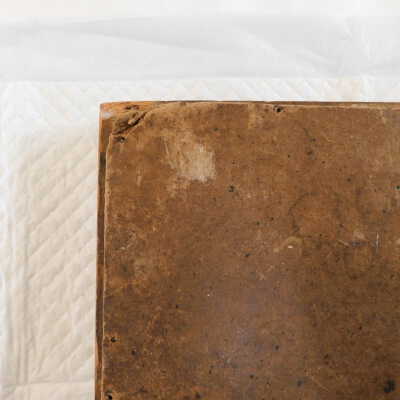

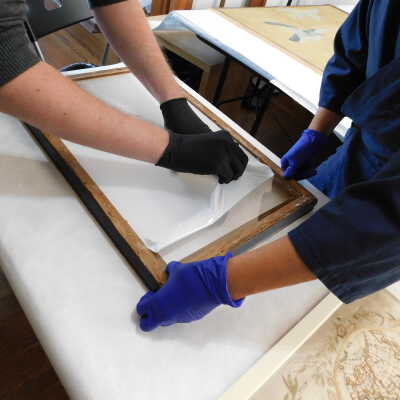

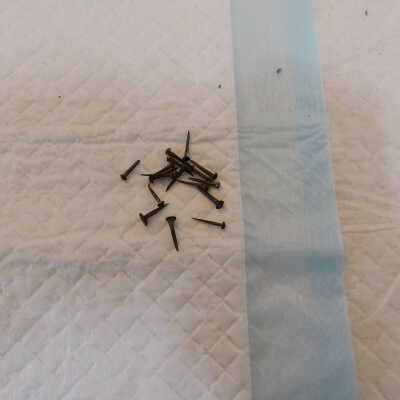

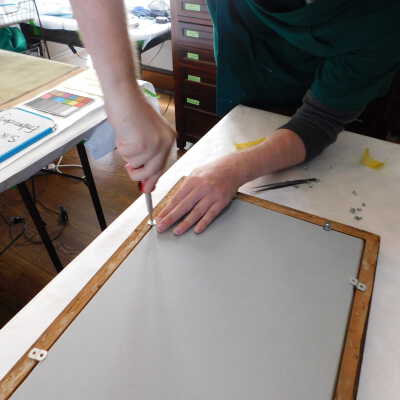

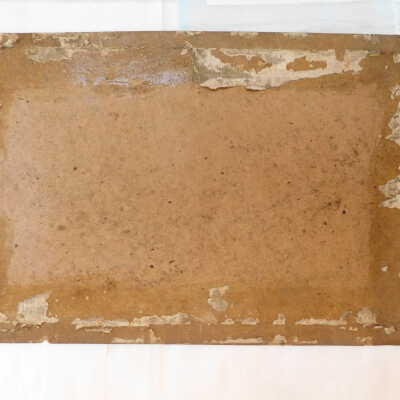

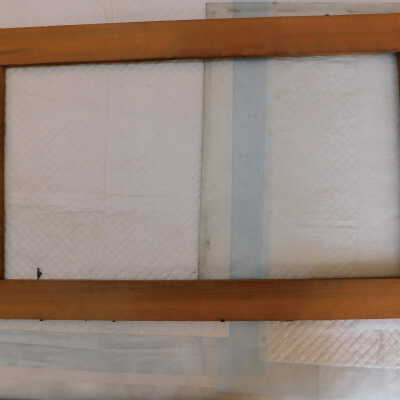

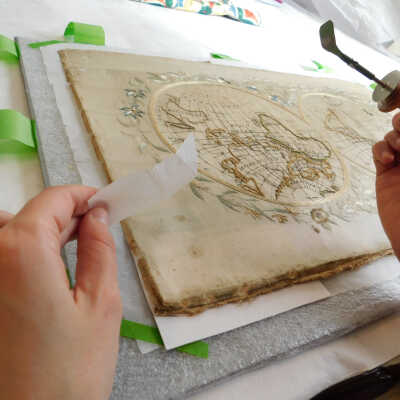

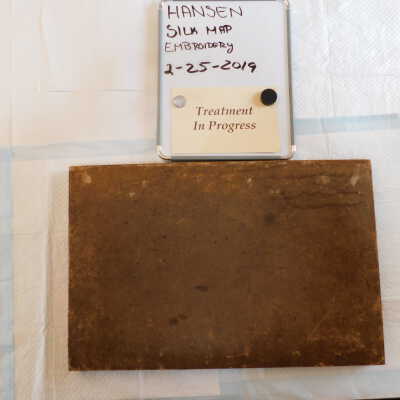

Removed from CO2 anoxia bubble. Nails and stretcher removed from backing board. Removed nails from strainerAcute Treatment
Hepa-VacuumDate(s)
Feb 25, 2019Treatment Notes

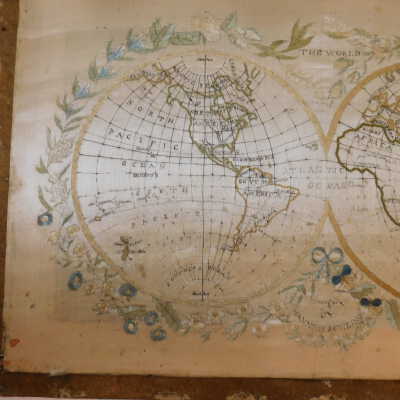

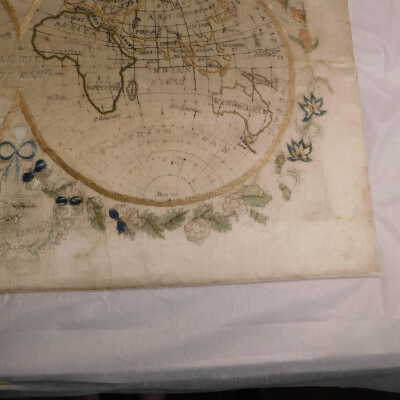

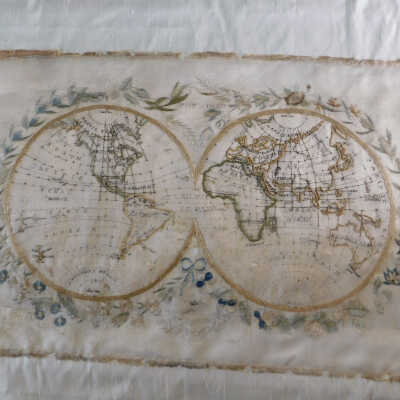

Vacuumed face of mapAcute Treatment
TestingDate(s)
Feb 26, 2019 - Feb 27, 2019Treatment Notes

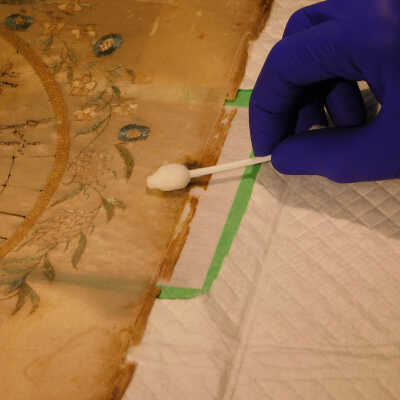

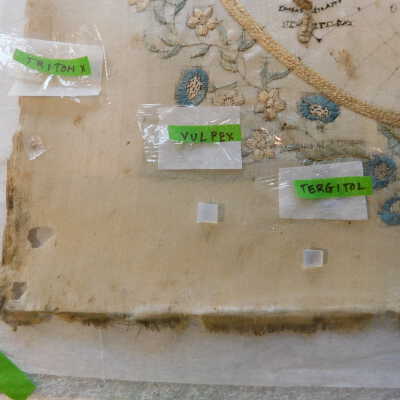

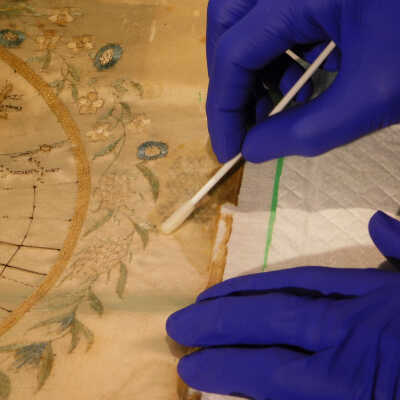

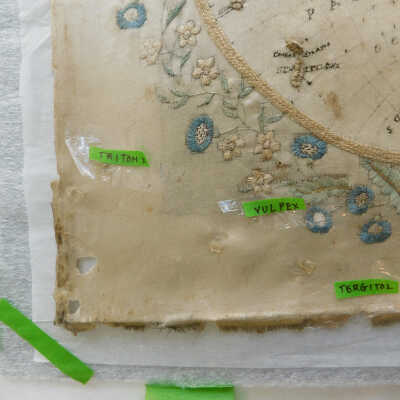

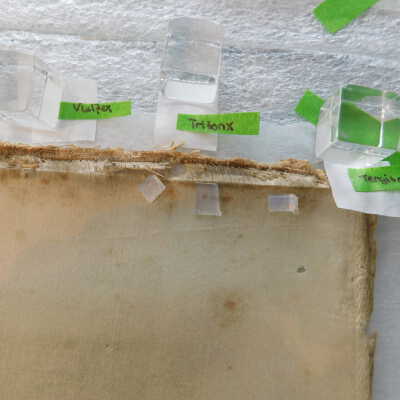

Tested alkaline buffering agent on areas of silk for fugitive colors (none found). Tested cleaning using dry swab. Used gels with surfactants to test cleaning along PR lower corner and PL upper corner (gel is 4% agarose with 1% surfactant vulpex, turgitol, and triton-x). Gels left until completely dry.Acute Treatment
RetouchingDate(s)
Feb 28, 2019Treatment Notes

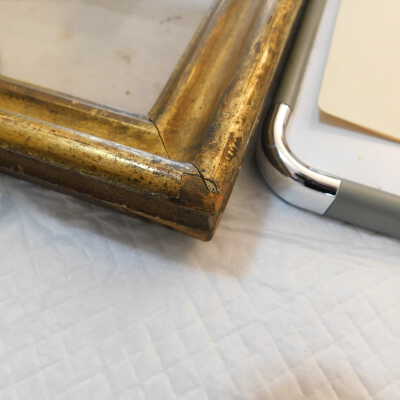

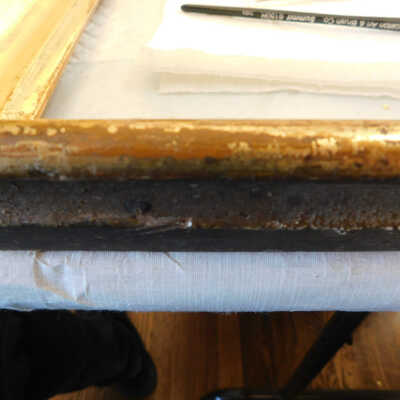

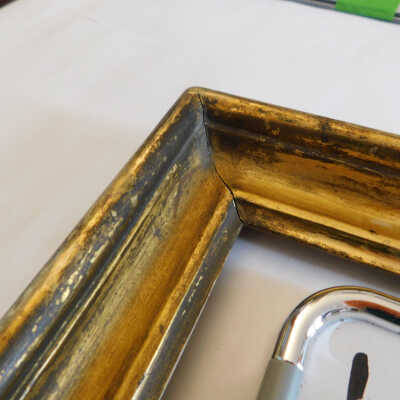

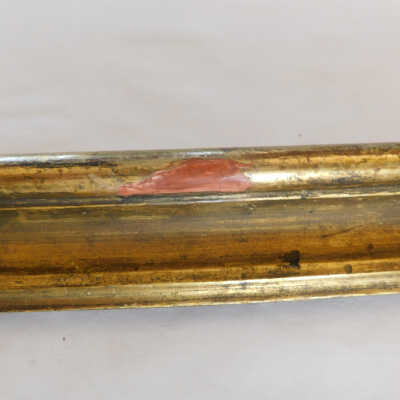

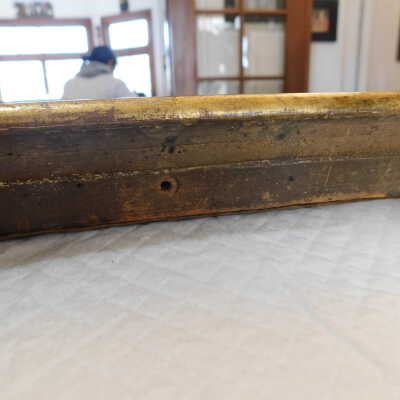

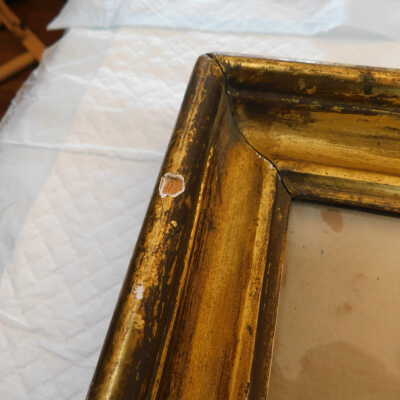

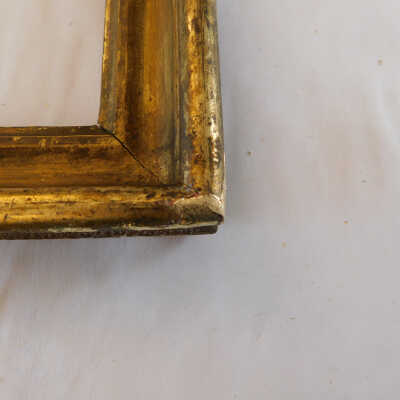

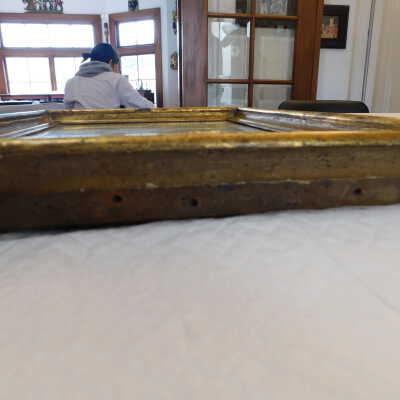

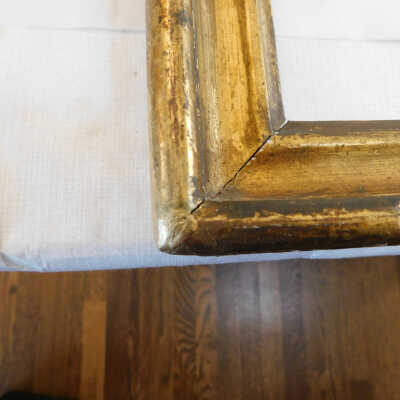

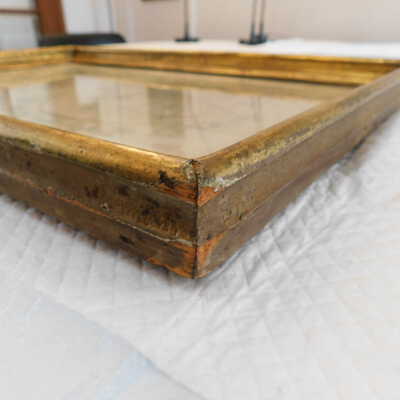

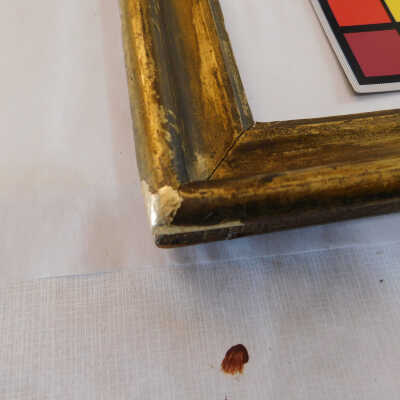

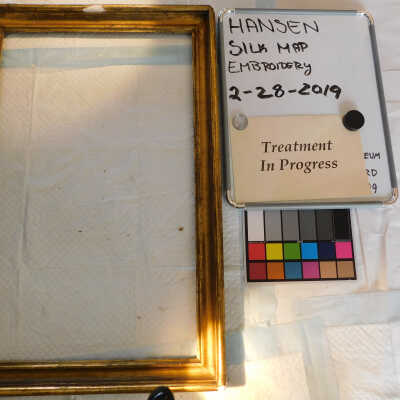

Filled frame with modostuc and covered fills in red bole. Filled sides of frame with only modostuc.Acute Treatment

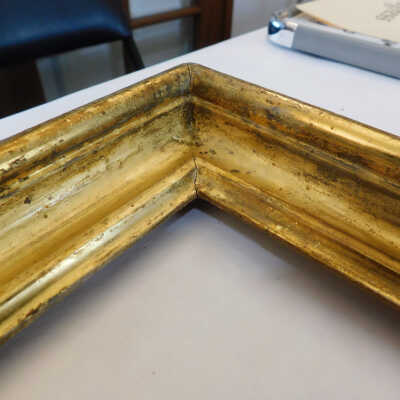

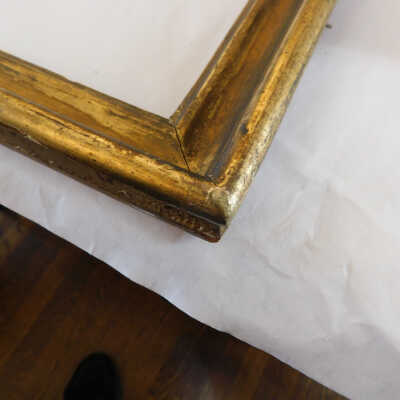

GildingDate(s)
Feb 28, 2019 - Mar 4, 2019Treatment Notes

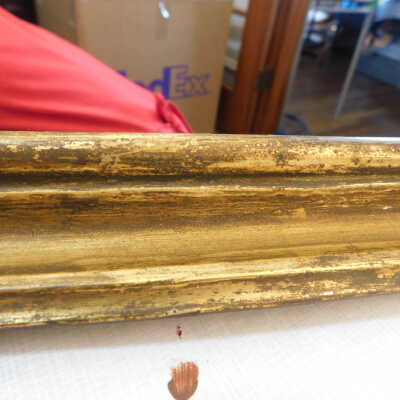

Gilded frame.Acute Treatment
RetouchingDate(s)
Mar 4, 2019Treatment Notes

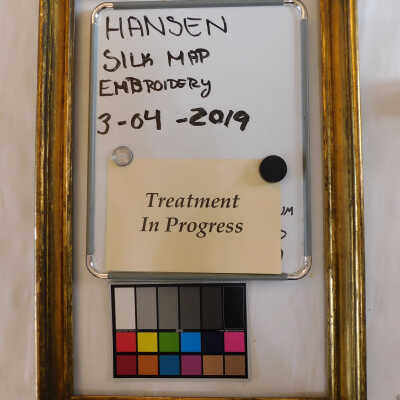

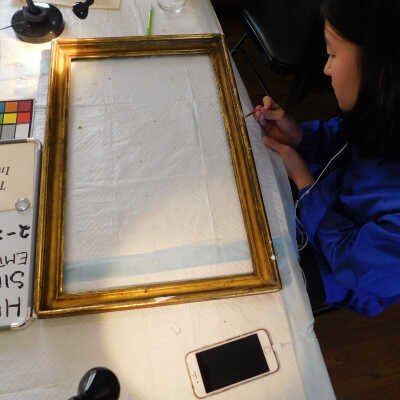

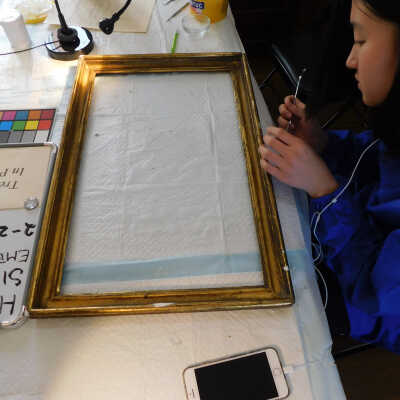

Began retouching gilded fills with Golden acrylic paint and flow improver.Acute Treatment
Surface CleanDate(s)
Mar 5, 2019 - Mar 12, 2019Treatment Notes

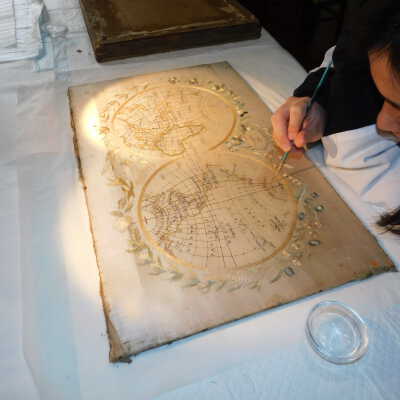

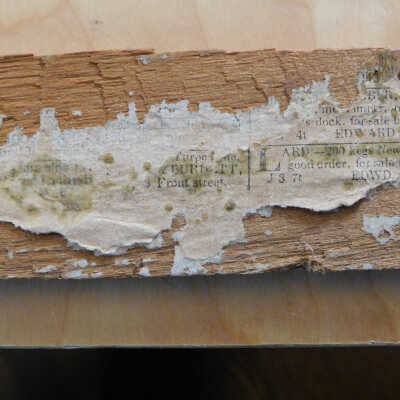

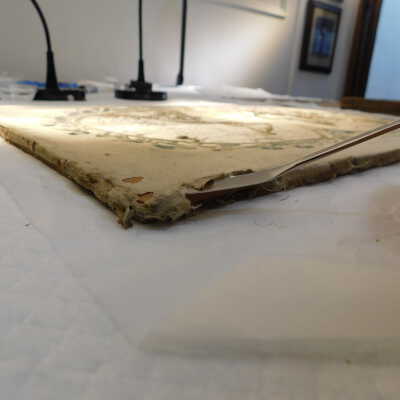

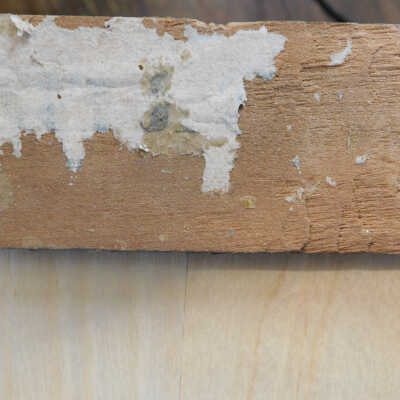

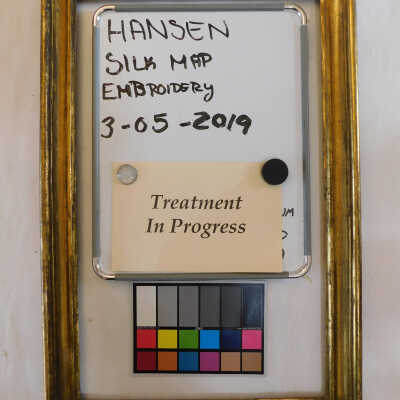

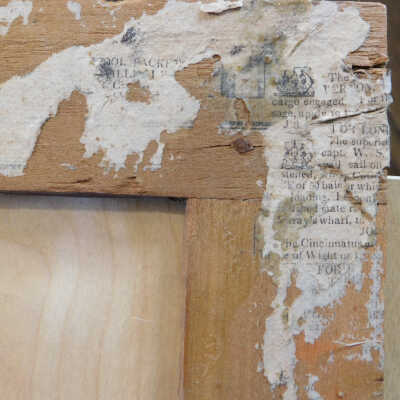

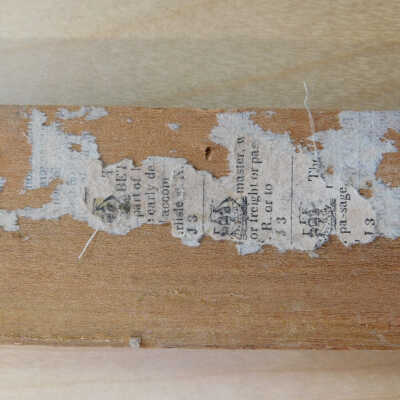

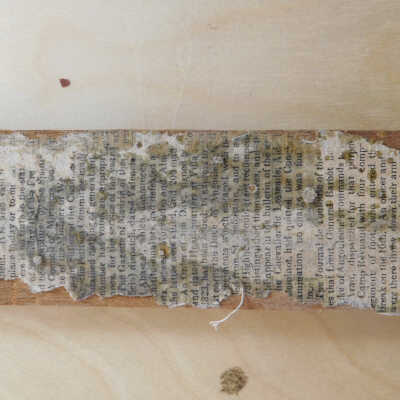

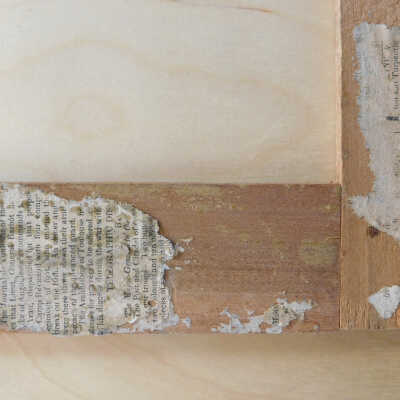

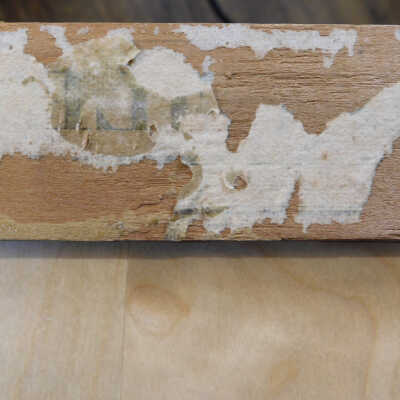

Using a combination of 70% and 91% isopropryl to remove grime from surface of frame. Used scalpel and sandpaper to remove excess paper and cardboard from back.Acute Treatment
RetouchingDate(s)
Mar 15, 2019Treatment Notes

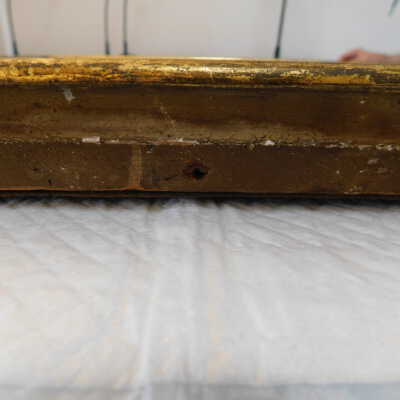

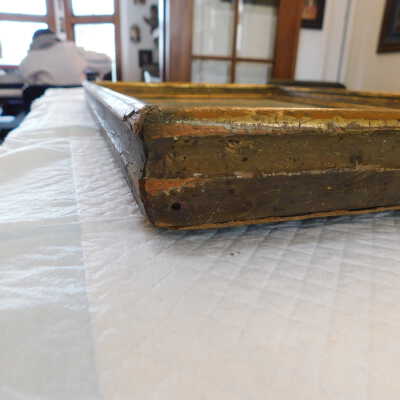

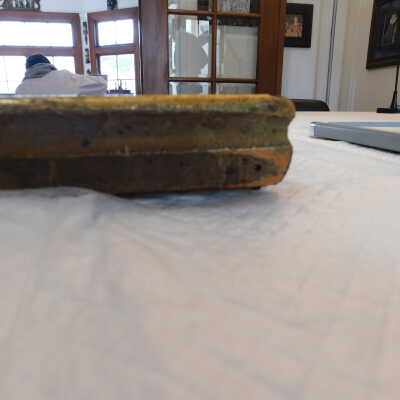

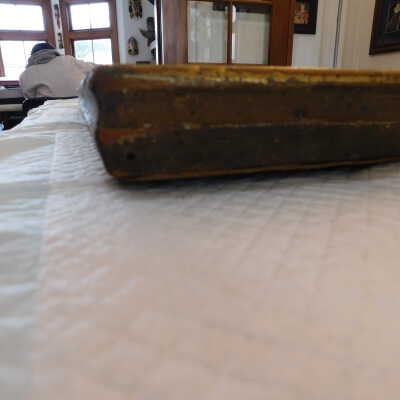

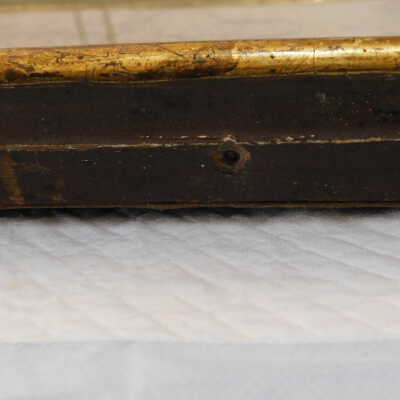

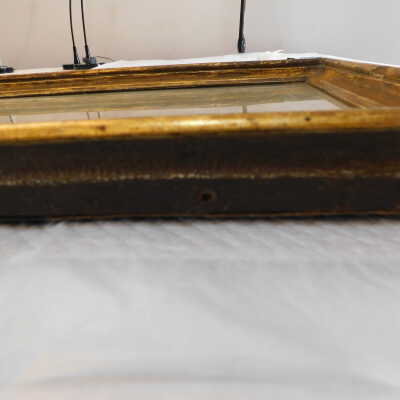

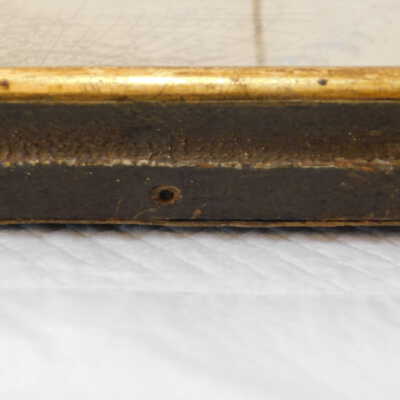

Painted side of frame with Van Dyke brown Golden Acrylic and Daniel Smith acrylic matte medium. Retouched with Van Dyke brown on gilding to match frame.Acute Treatment
TestingDate(s)
Mar 15, 2019Treatment Notes

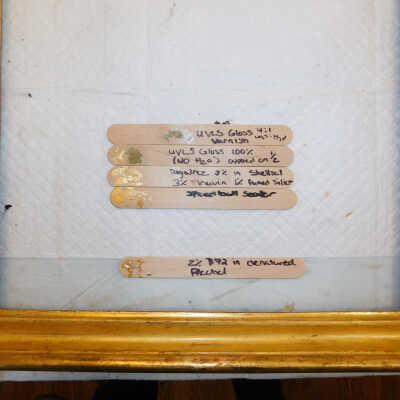

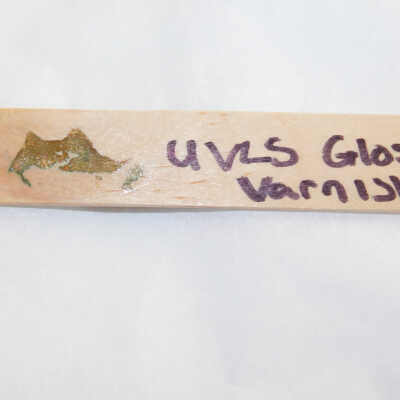

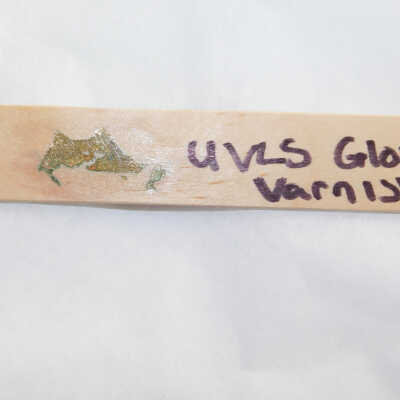

Tested UVLS Gloss varnish on token. The varnish turned the copper in leaf brown-green color (ammonia in varnish chemically changed the leaf).Acute Treatment
Varnish / RemovalDate(s)
Mar 18, 2019Treatment Notes
Used Regalrez 1094 (3%) in Shellsol and 3% tinuvin and 1% fumed silica on gilded areas as varnish.Acute Treatment

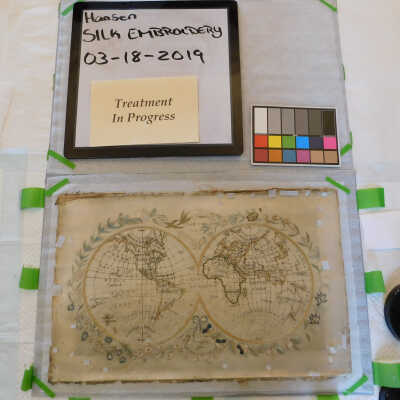

TestingDate(s)
Mar 18, 2019 - Mar 22, 2019Treatment Notes

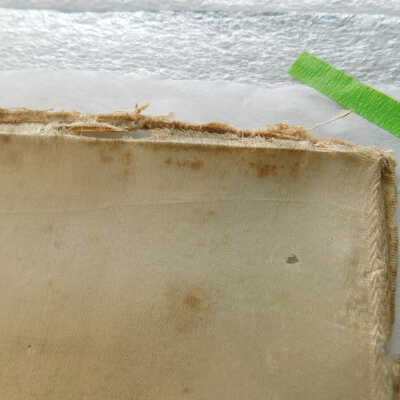

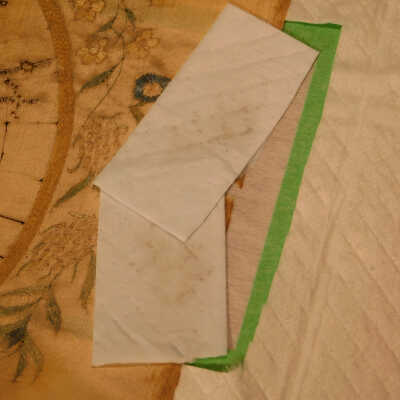

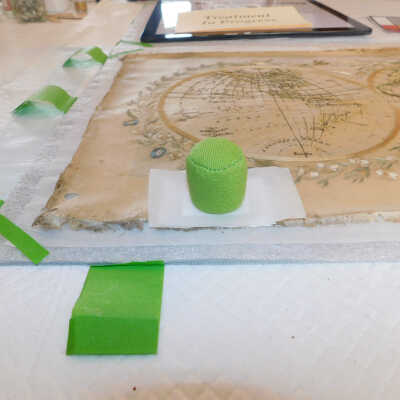

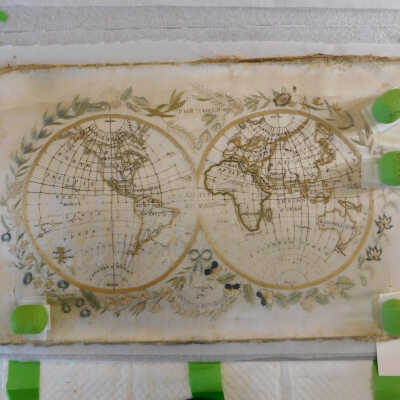

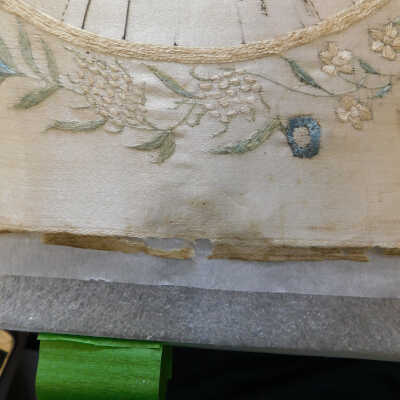

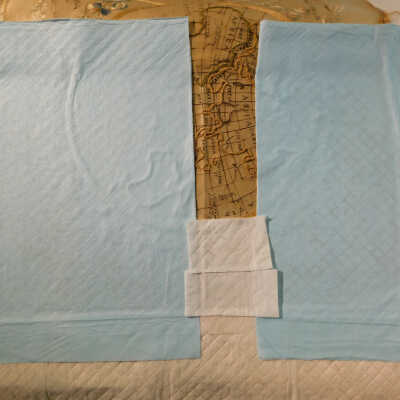

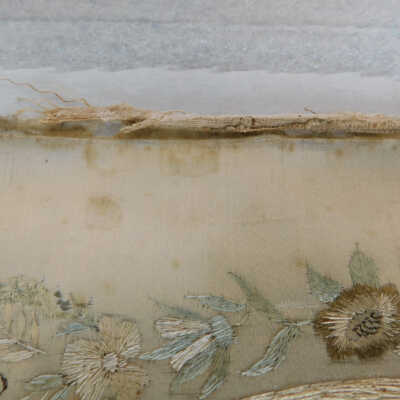

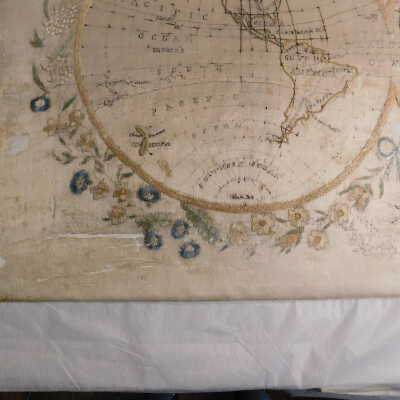

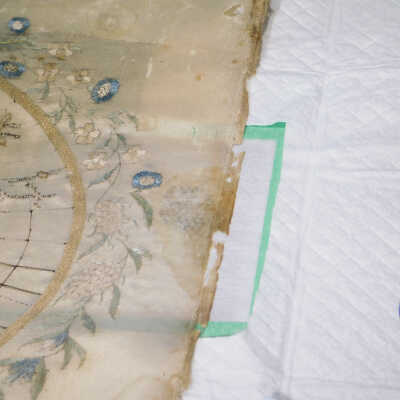

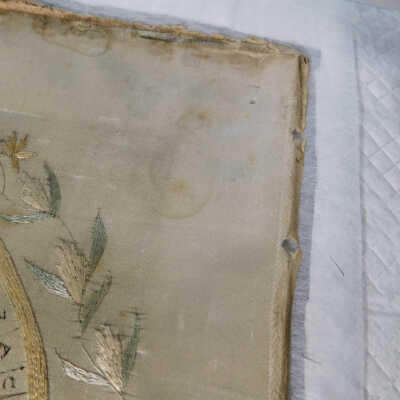

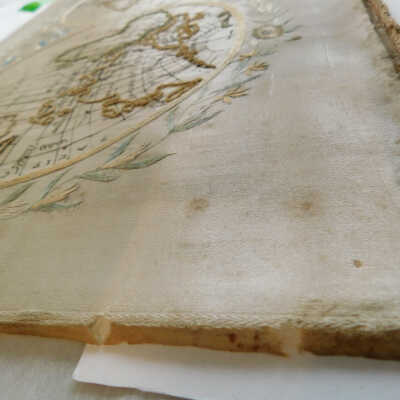

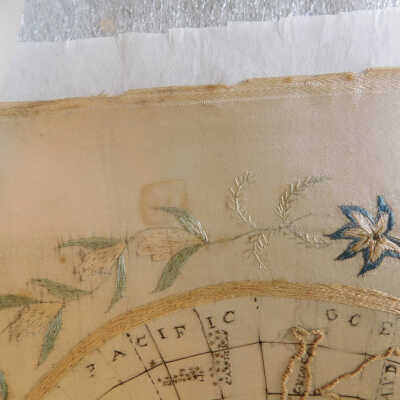

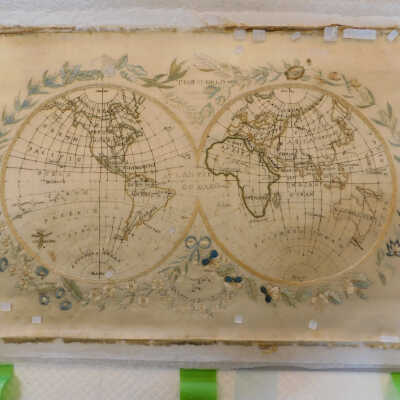

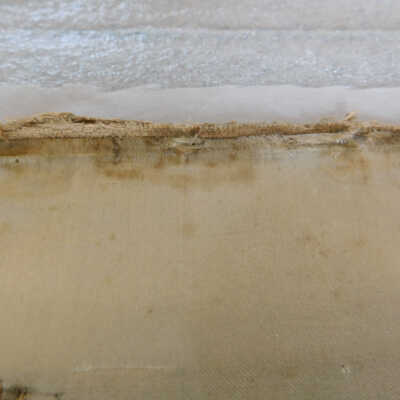

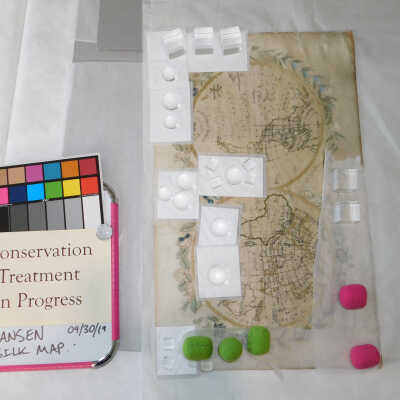

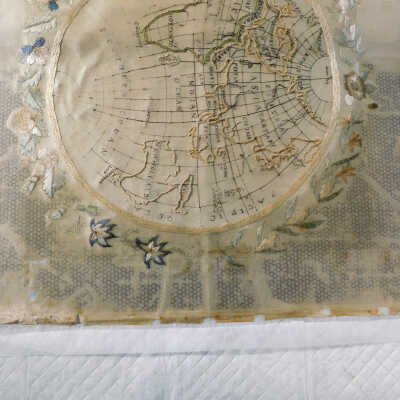

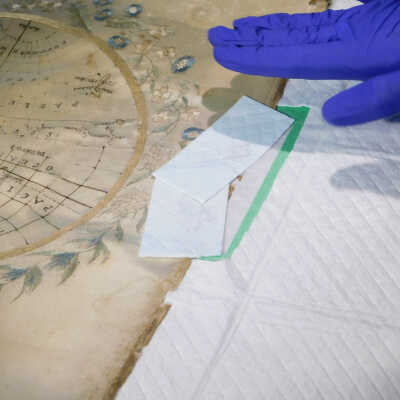

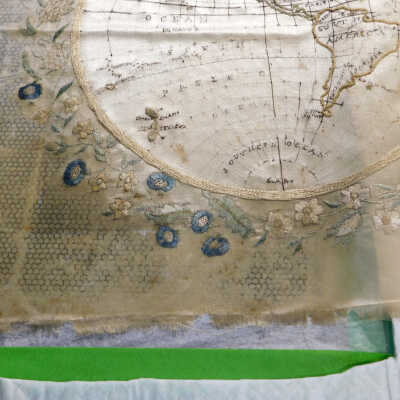

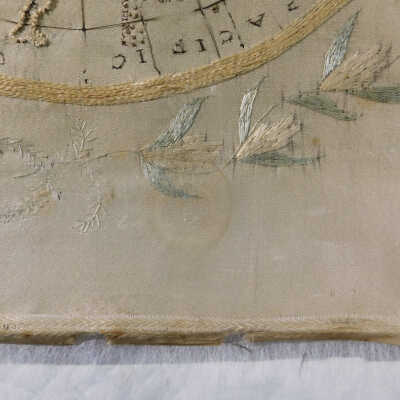

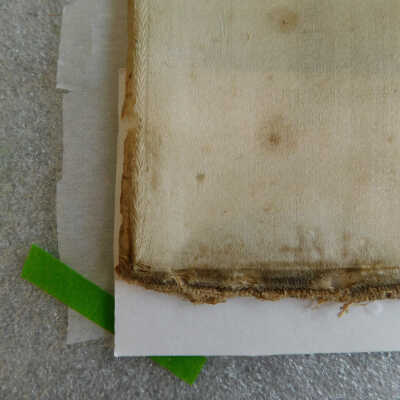

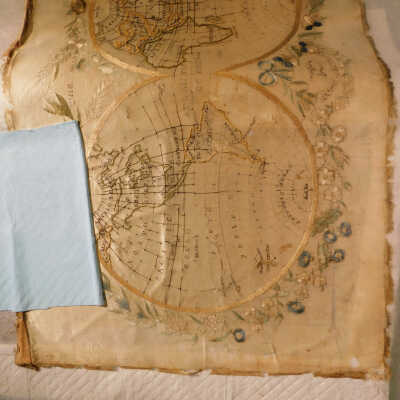

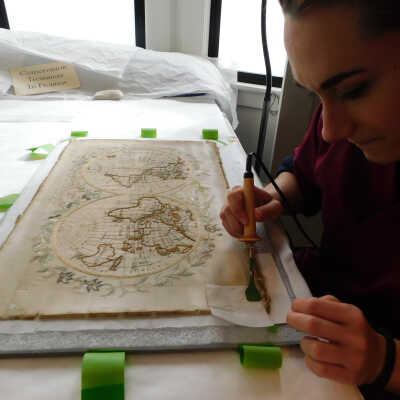

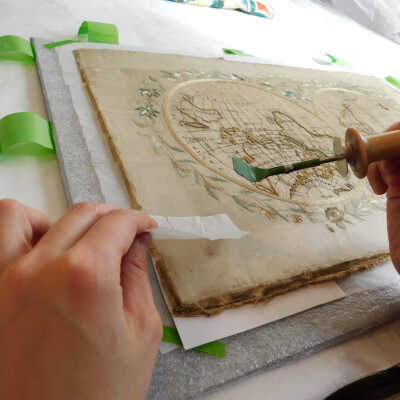

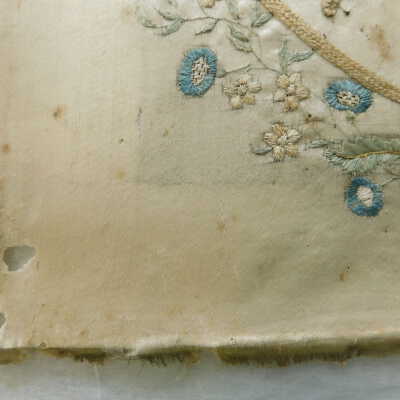

5.75% agarose with 2% triton-x gel placed on embroidery foxing. A combination of pellon, blotting paper, and silicone used with distilled water under pressure to remove tidelines. The same gel used on tide lines from pellon/blotting paper/silicone sandwich.Acute Treatment
Surface CleanDate(s)
Apr 22, 2019 - Apr 23, 2019Treatment Notes

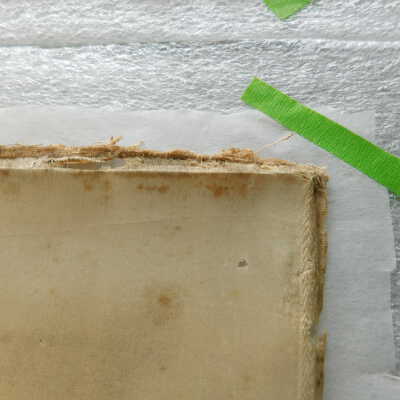

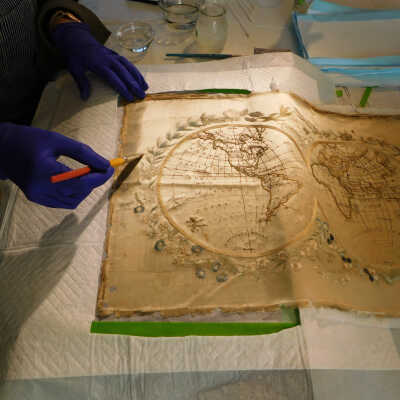

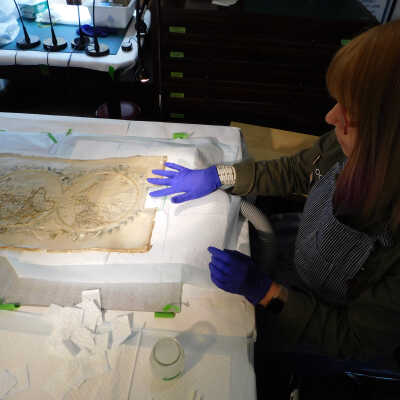

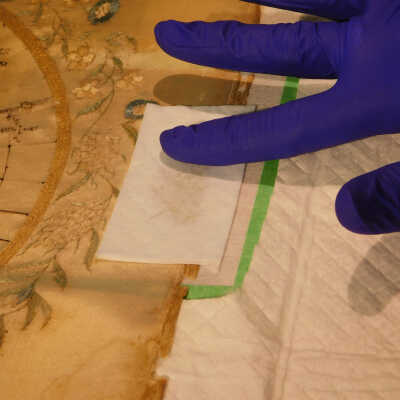

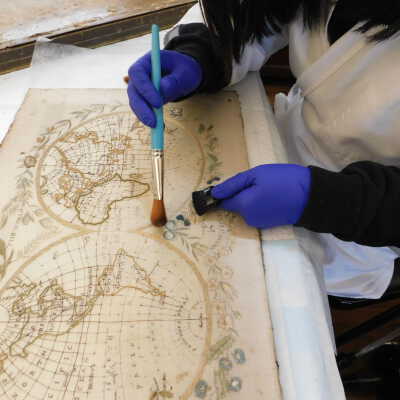

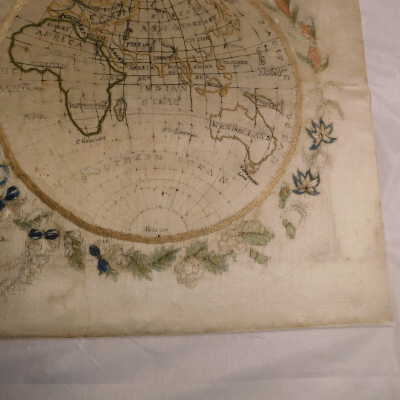

Brushed tidelines with cyclomethicone. 1:1 distilled water an 70% isopropyl alcohol with chloromine T, bleach gel, and orvus paste applied to surface. Suction platten used with three layers of hollytex as a barrier. Blotting done using surgical pads to increase rate of drying. Blotting done after all steps.
1. cyclomethicone
2. cleaning solution
3. 70% isopropyl
4. cyclomethicone
5. cleaning solution
6. cyclomethiconeAcute Treatment
TestingDate(s)
Apr 22, 2019Treatment Notes

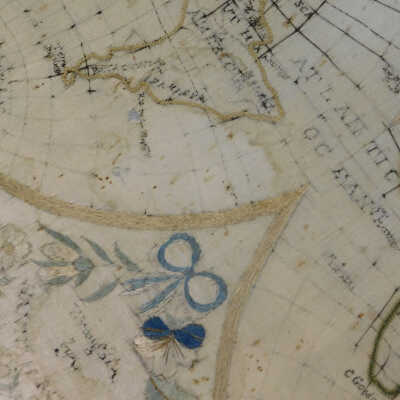

Test on dark blue dye. Results that dye is water sensitive. Cleaning solution not applied to those areas.Acute Treatment
Conditioner/MoisturizerDate(s)
Apr 23, 2019 - Apr 24, 2019Treatment Notes
Cyclomethicone moisturizer applied to whole surface.Acute Treatment

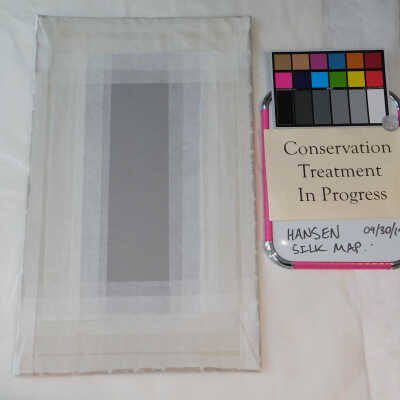

Lining SupportDate(s)
Apr 24, 2019 - Apr 25, 2019Treatment Notes

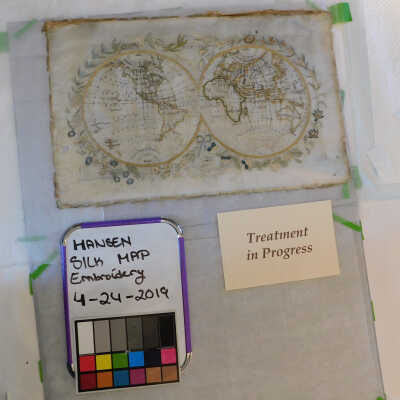

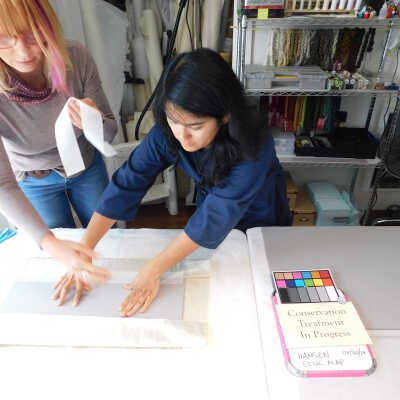

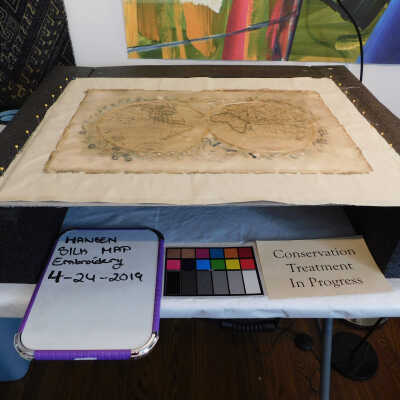

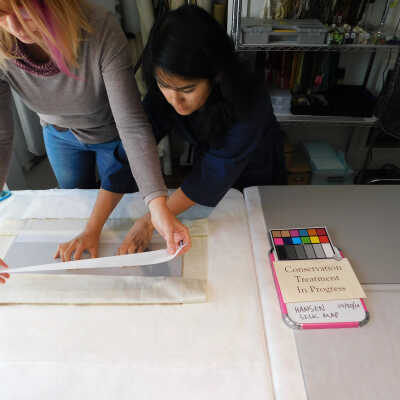

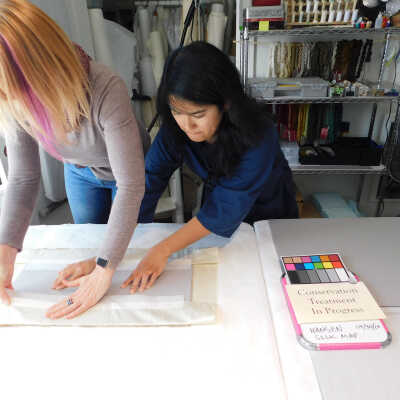

Ironed silk. Constructed sewing structure with ethafoam blocks and blueboard. Pinned silk embroidery to silk lining. Sewed around edges with silk-finish cotton thread, using backward looping stitches, 1/4" apart and 1/4" from edge. Sewed around both globes with same backward looping stitch and stitch length.Acute Treatment

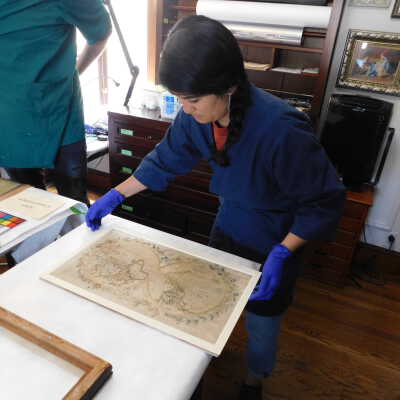

Display MountDate(s)
Apr 30, 2019Treatment Notes

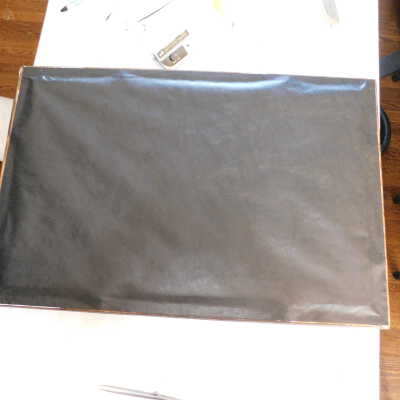

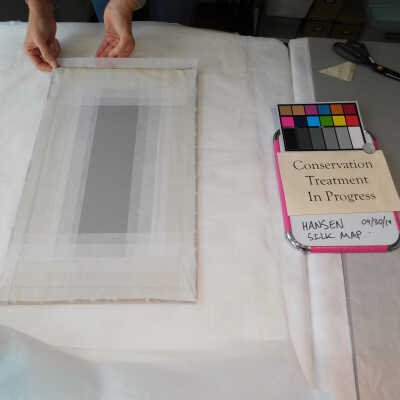

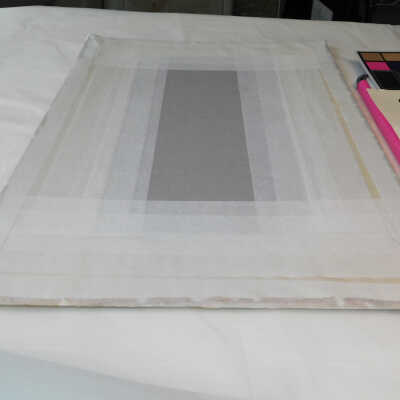

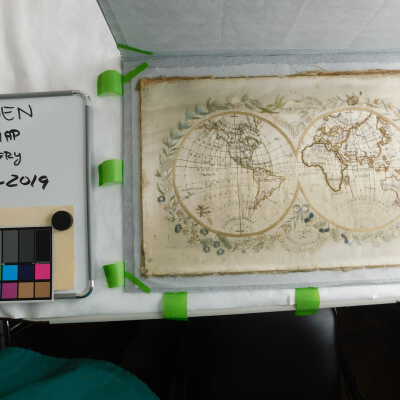

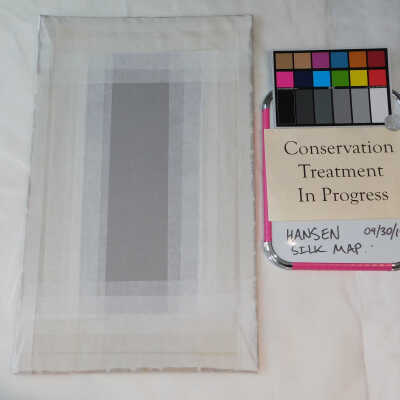

Mounted lining over blueboardAcute Treatment
ConsolidationDate(s)
Apr 30, 2019Treatment Notes
Methylcellulose consolidation of fragile silk substrate lining for supportAcute Treatment

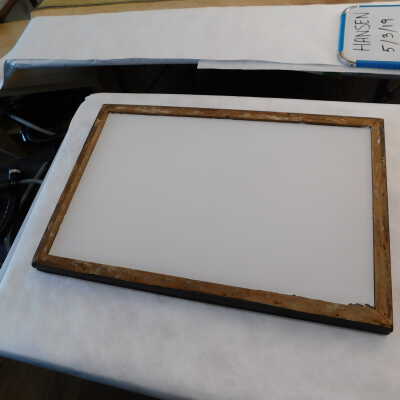

Display MountDate(s)
May 1, 2019Treatment Notes

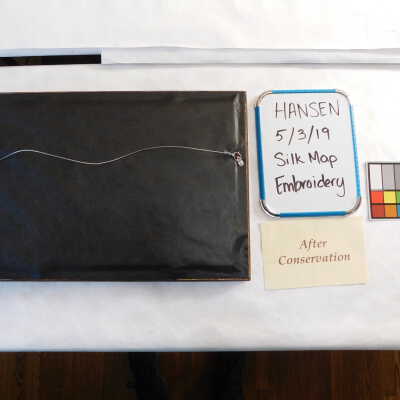

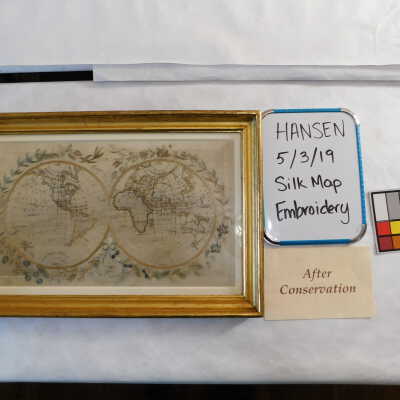

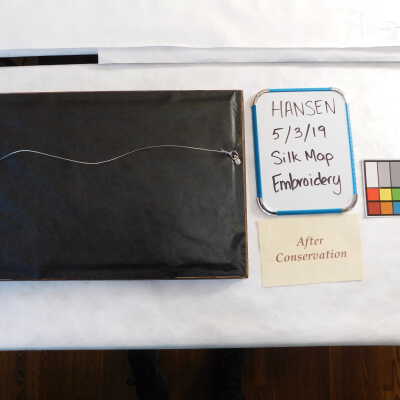

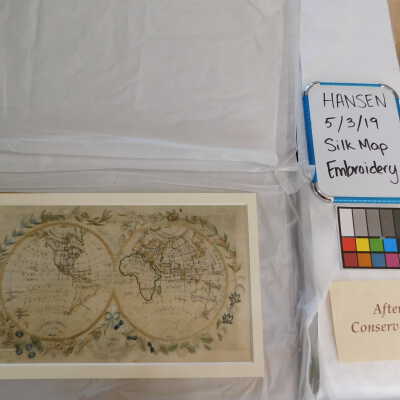

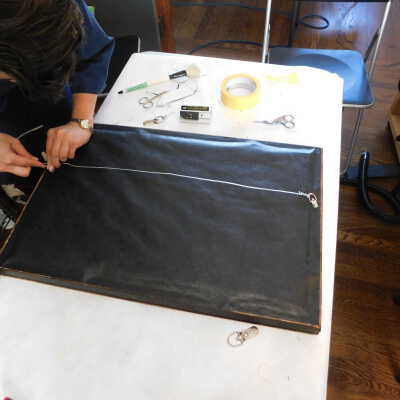

Framing install complete.
