Name/Title

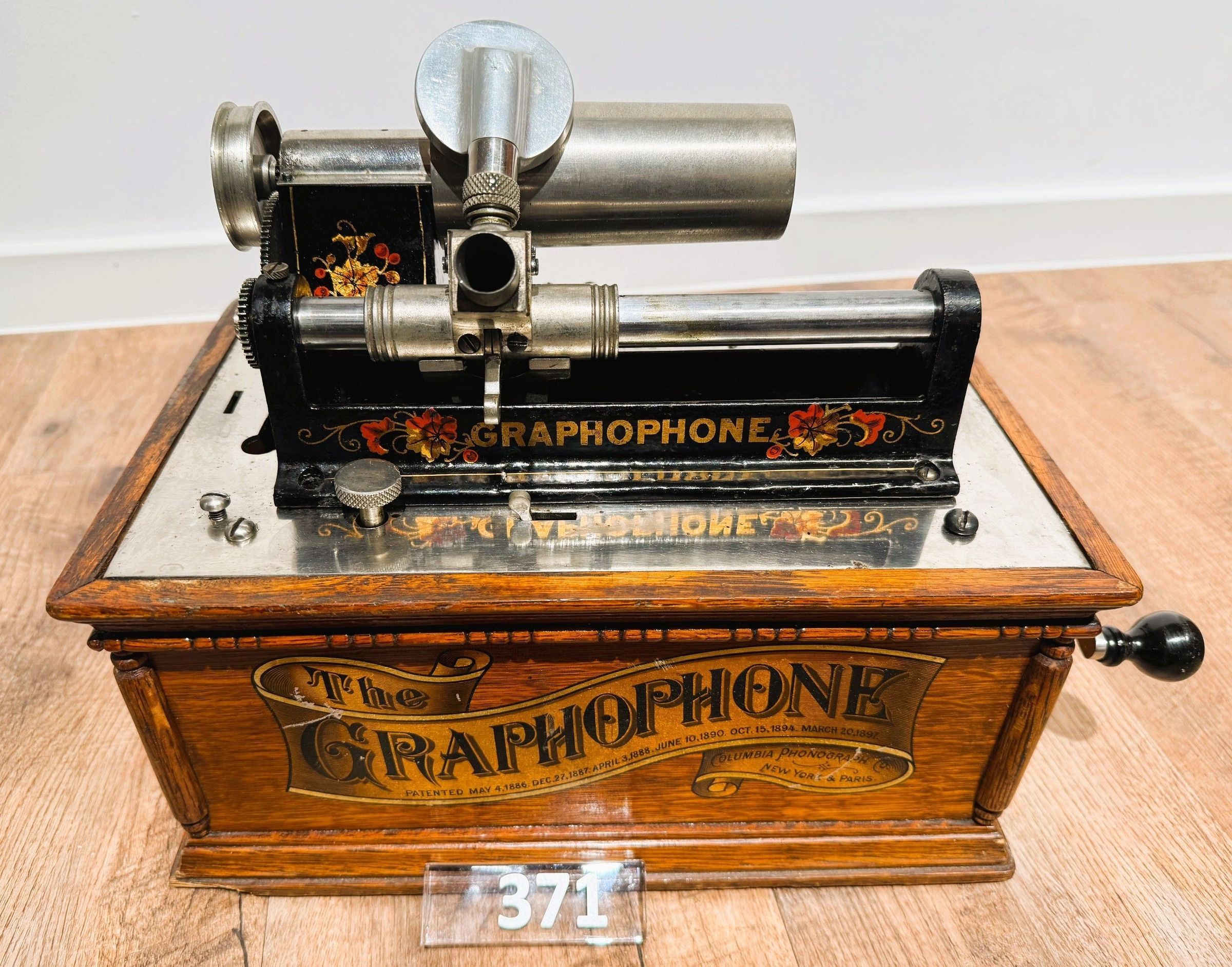

Graphophone Type ATEntry/Object ID
371Description

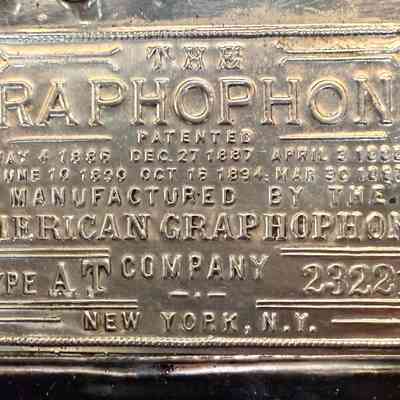

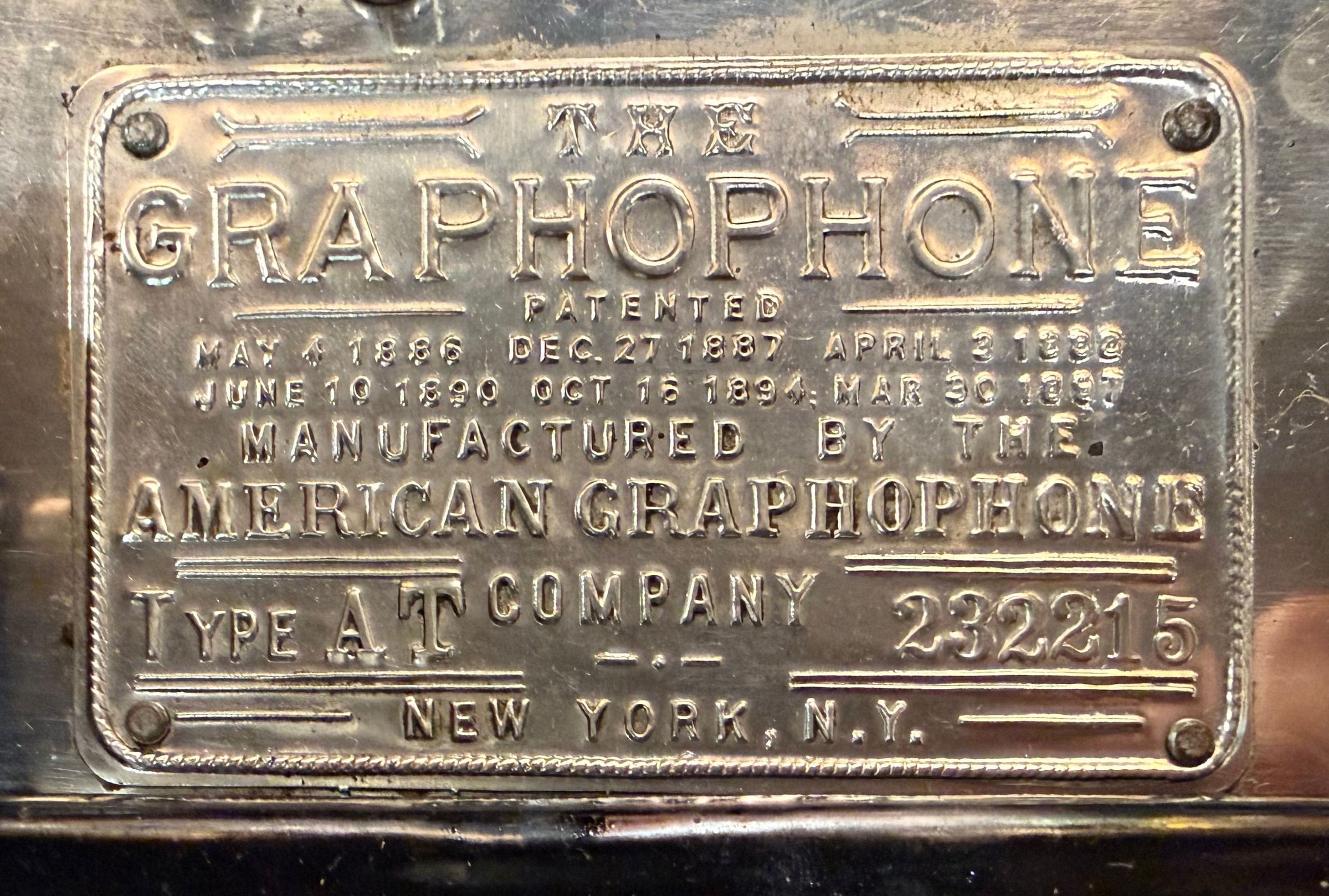

Manufacturer: American Graphophone Company, New York, N.Y.
Model: Type AT
Serial Number: 232215
Date: approx. 1898–1903
Type: Mechanical cylinder phonograph, tabletop model
Drive: Spring motor, hand-cranked
Recording Medium: Standard wax cylinders
Historical Background
The Graphophone Type AT is among the most important and successful home and general-purpose machines of early Columbia production. Introduced in the late 1890s, it remained in production for several years, making it one of the longest-running models of its era.
The model was developed at a time when the phonograph was evolving from a specialized technical device into an established element of middle-class daily life. Columbia responded to this shift with a new generation of machines that were not only functional but also visually appealing.

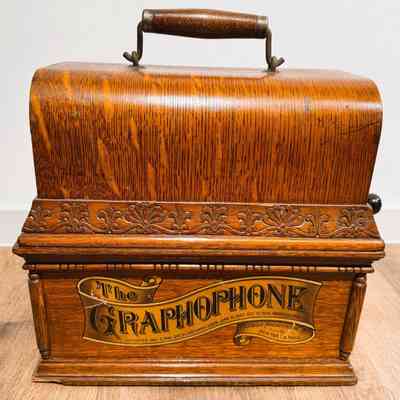

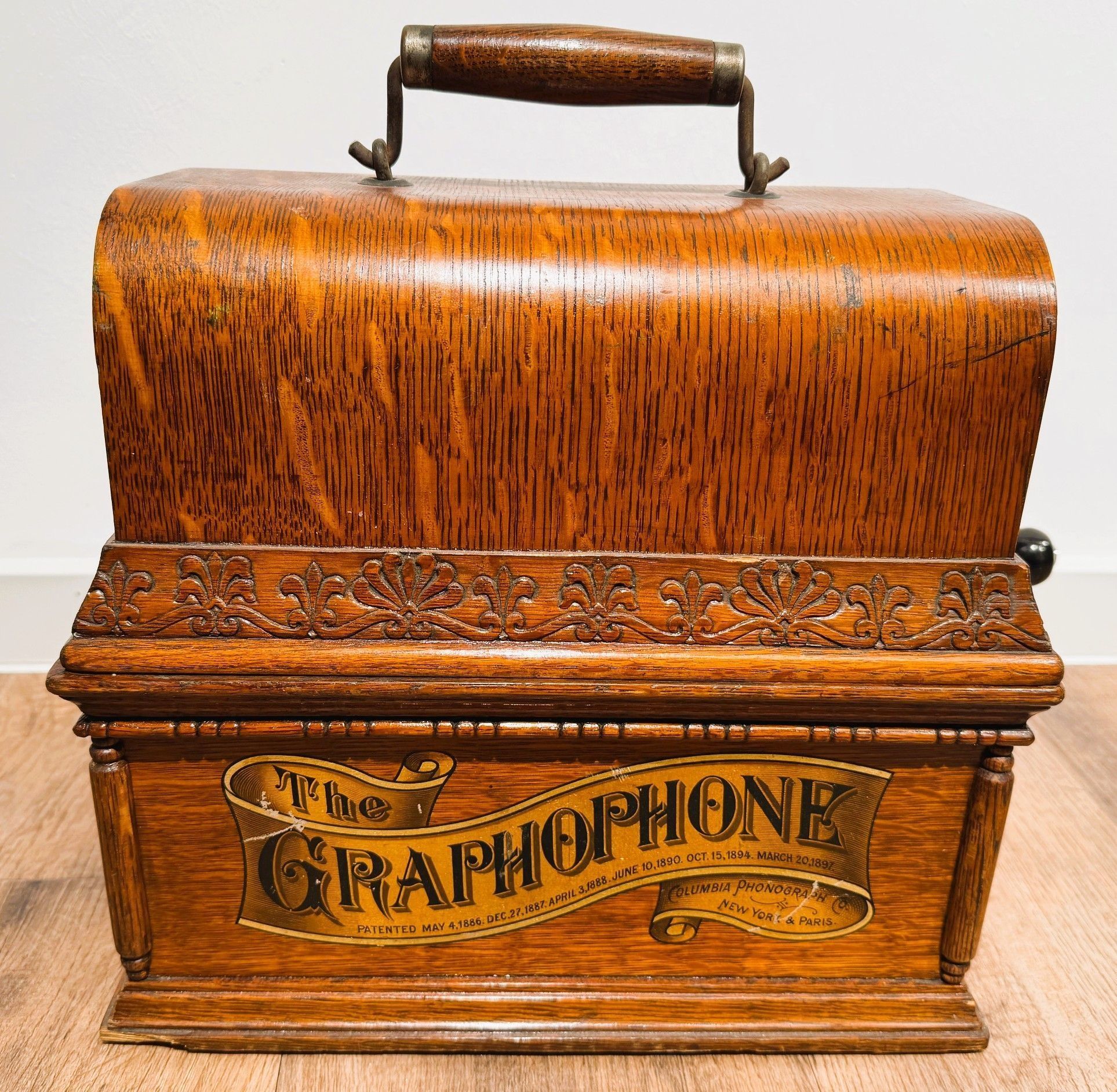

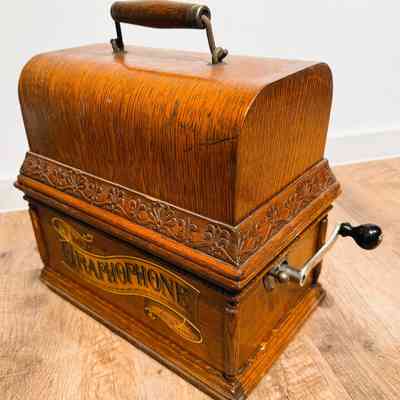

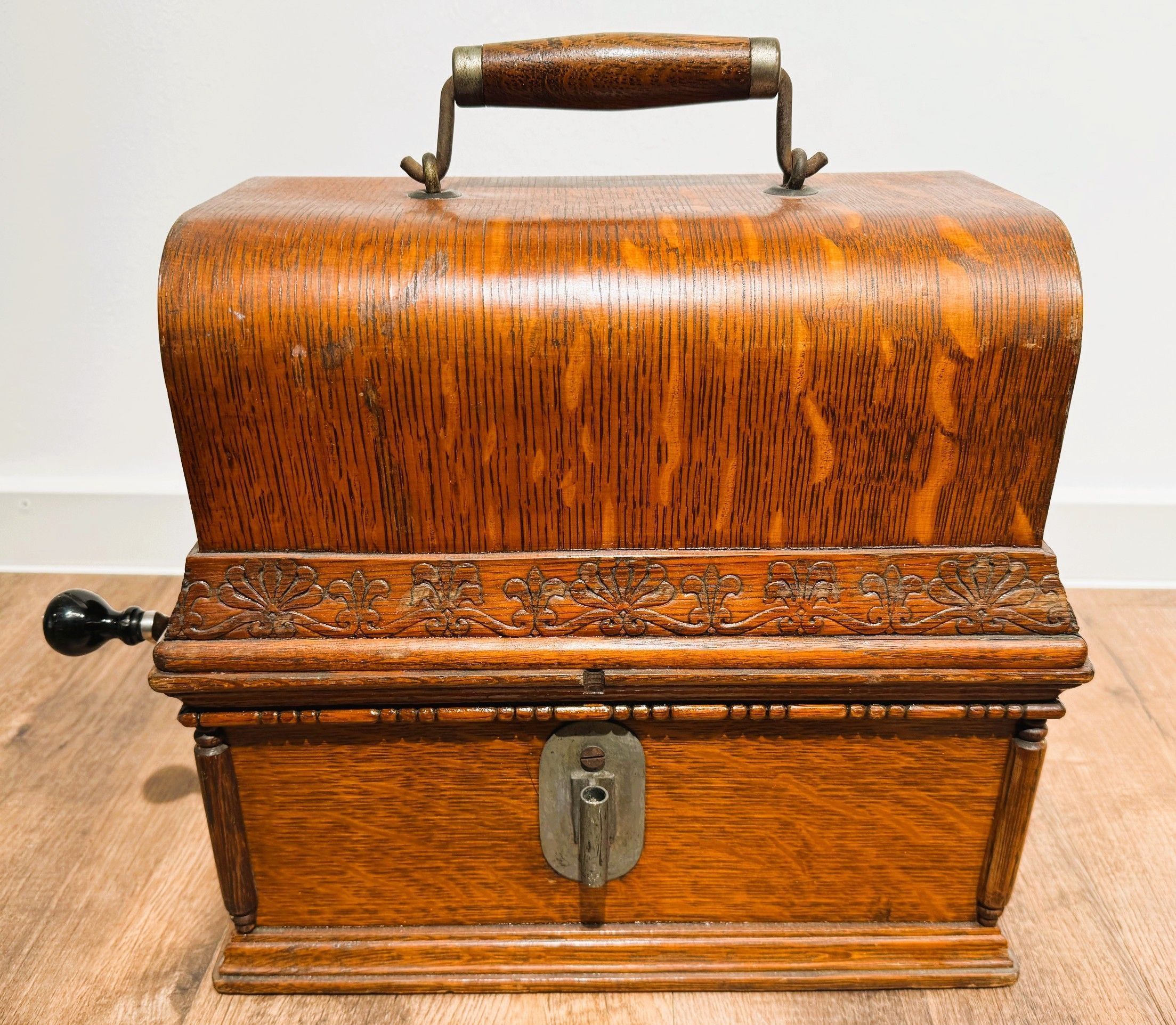

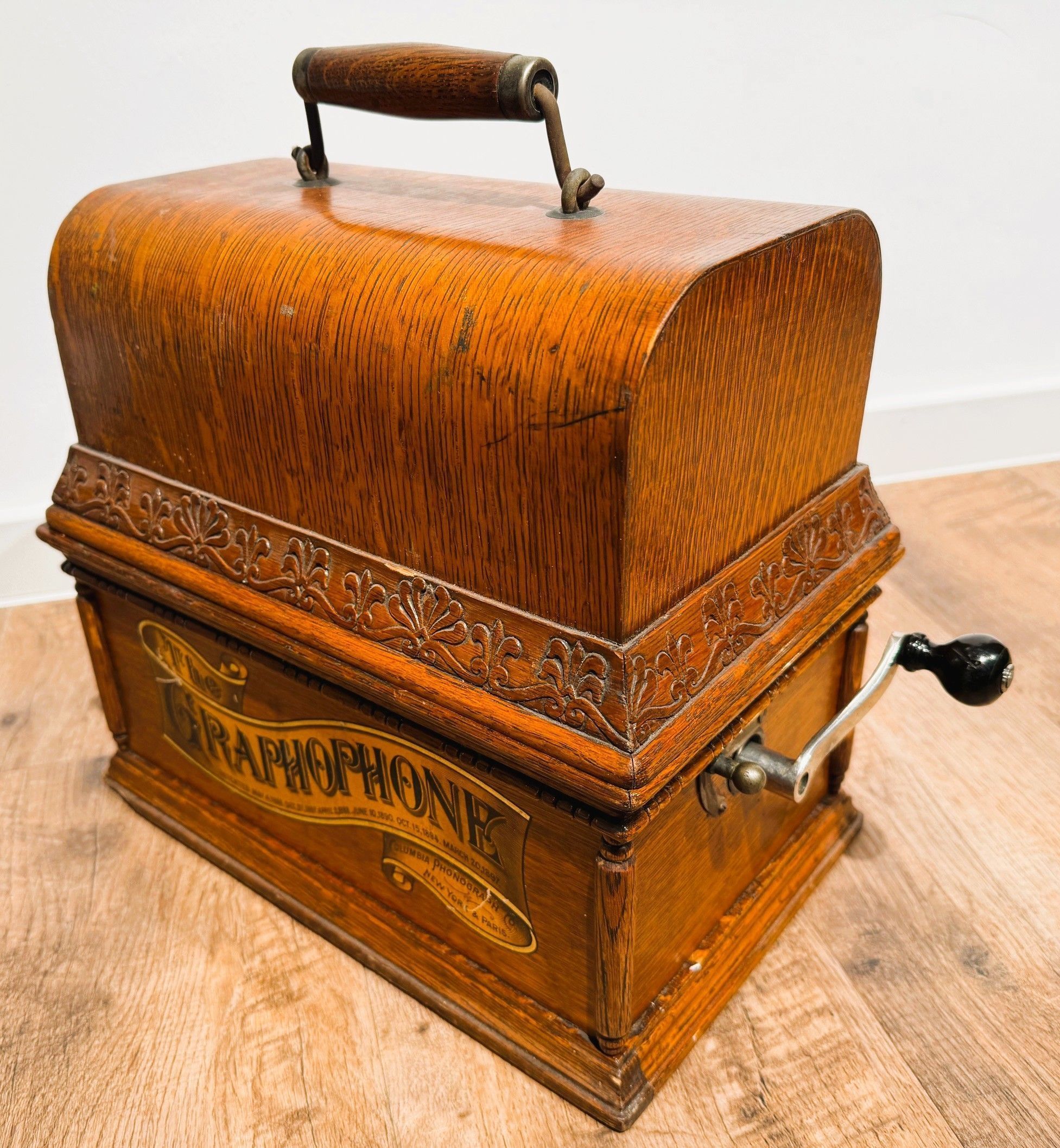

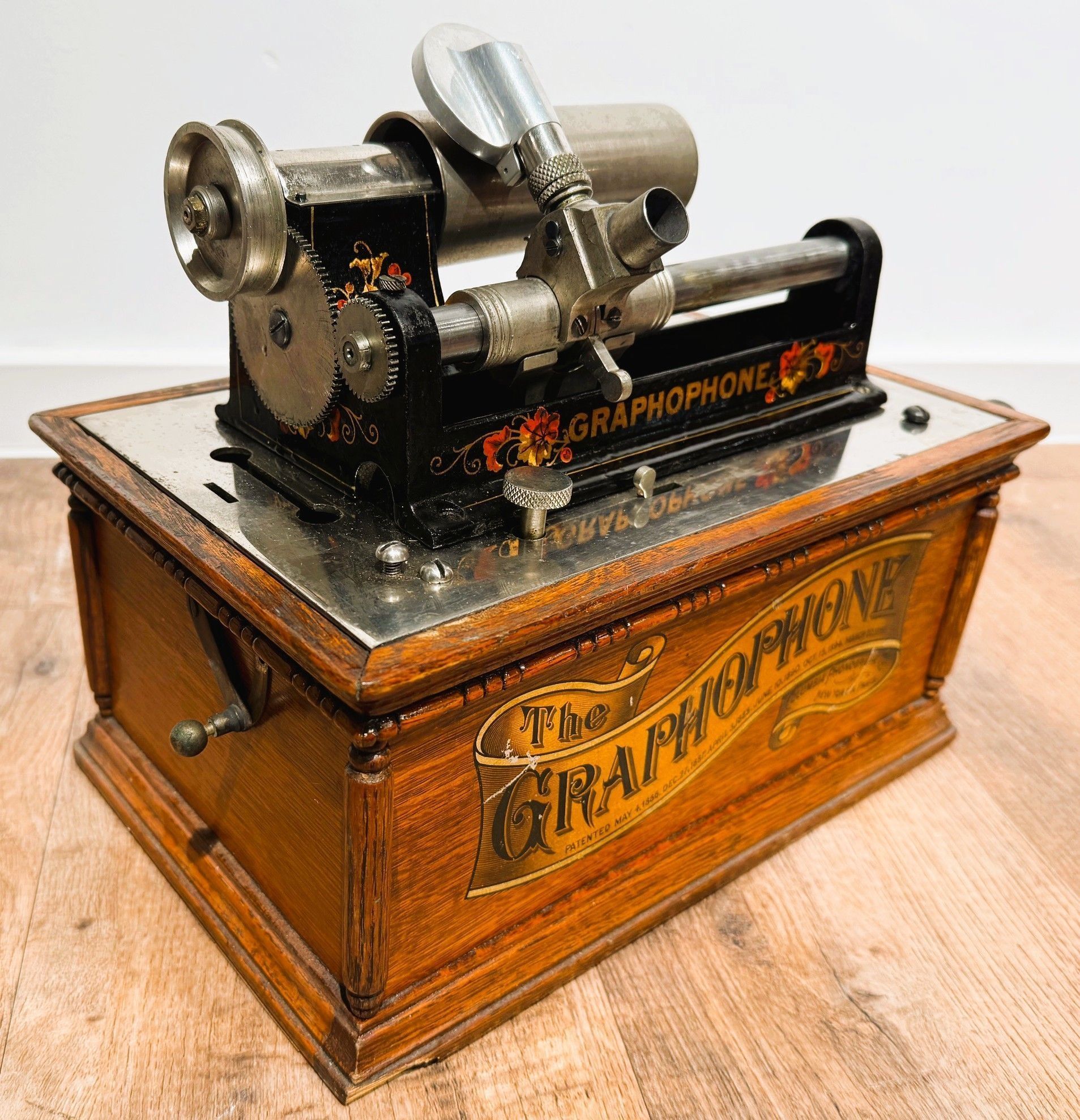

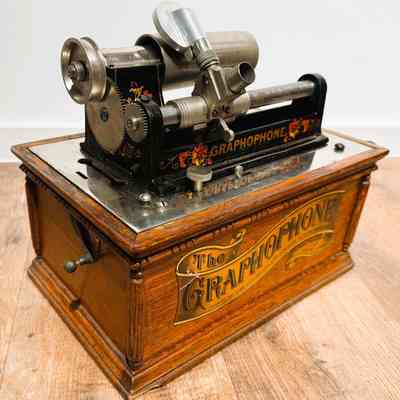

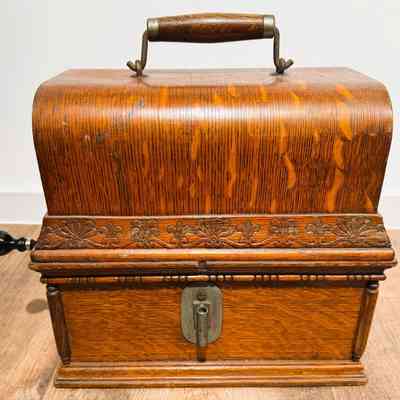

The Type AT was one of the first Graphophones deliberately designed as a piece of furniture. Its elaborately crafted oak cabinet with decorative elements was intended to integrate harmoniously into domestic interiors and to position the phonograph as a high-quality consumer product.
Technology and Construction
Technically, the Type AT is based on earlier Columbia models but represents a significant advancement.

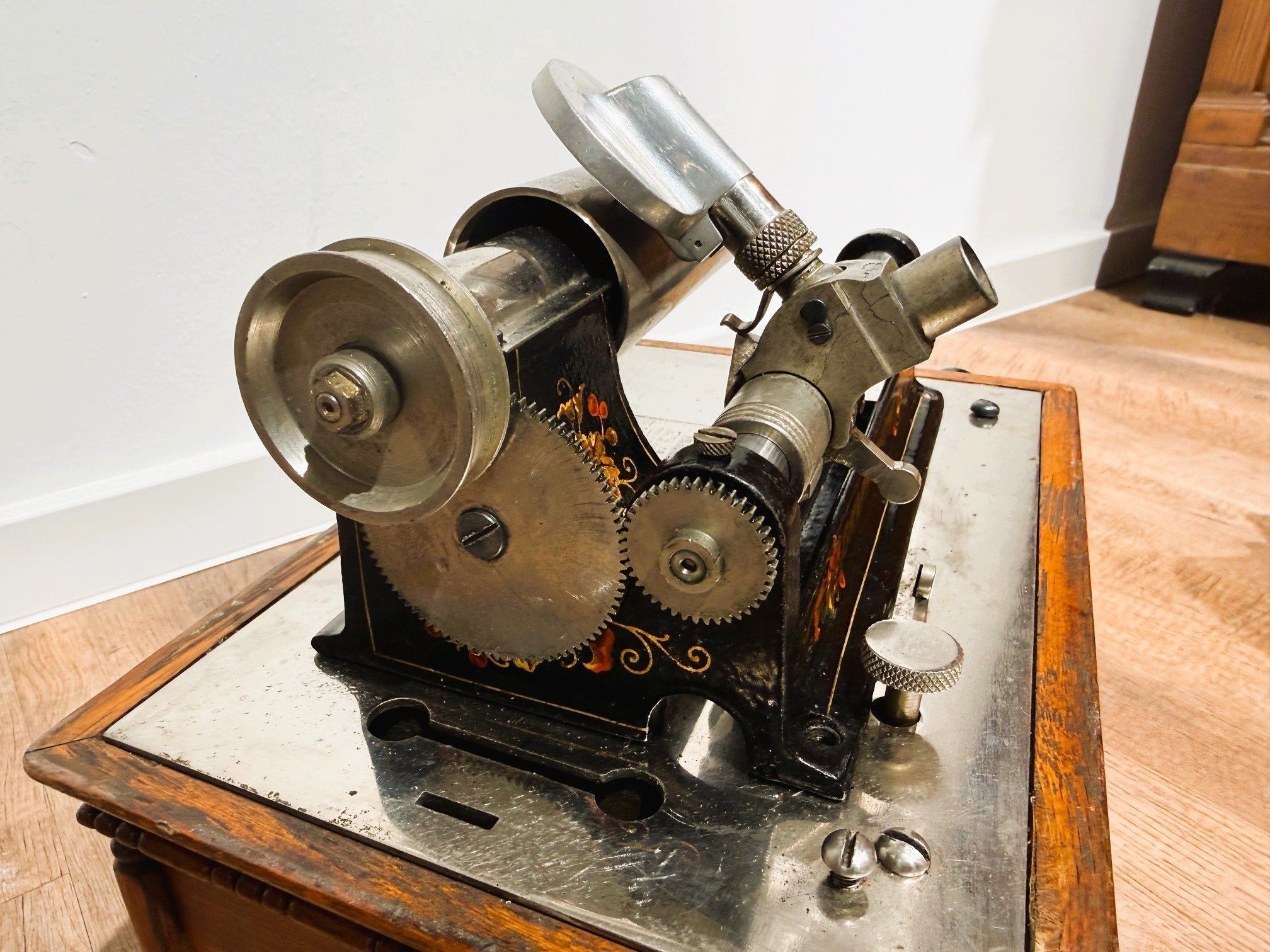

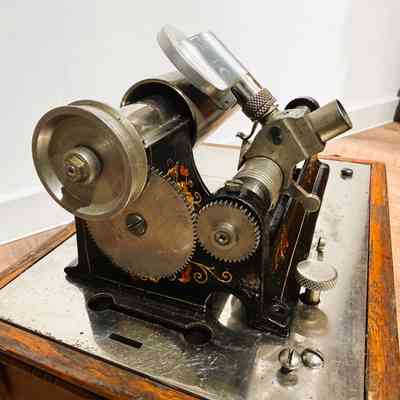

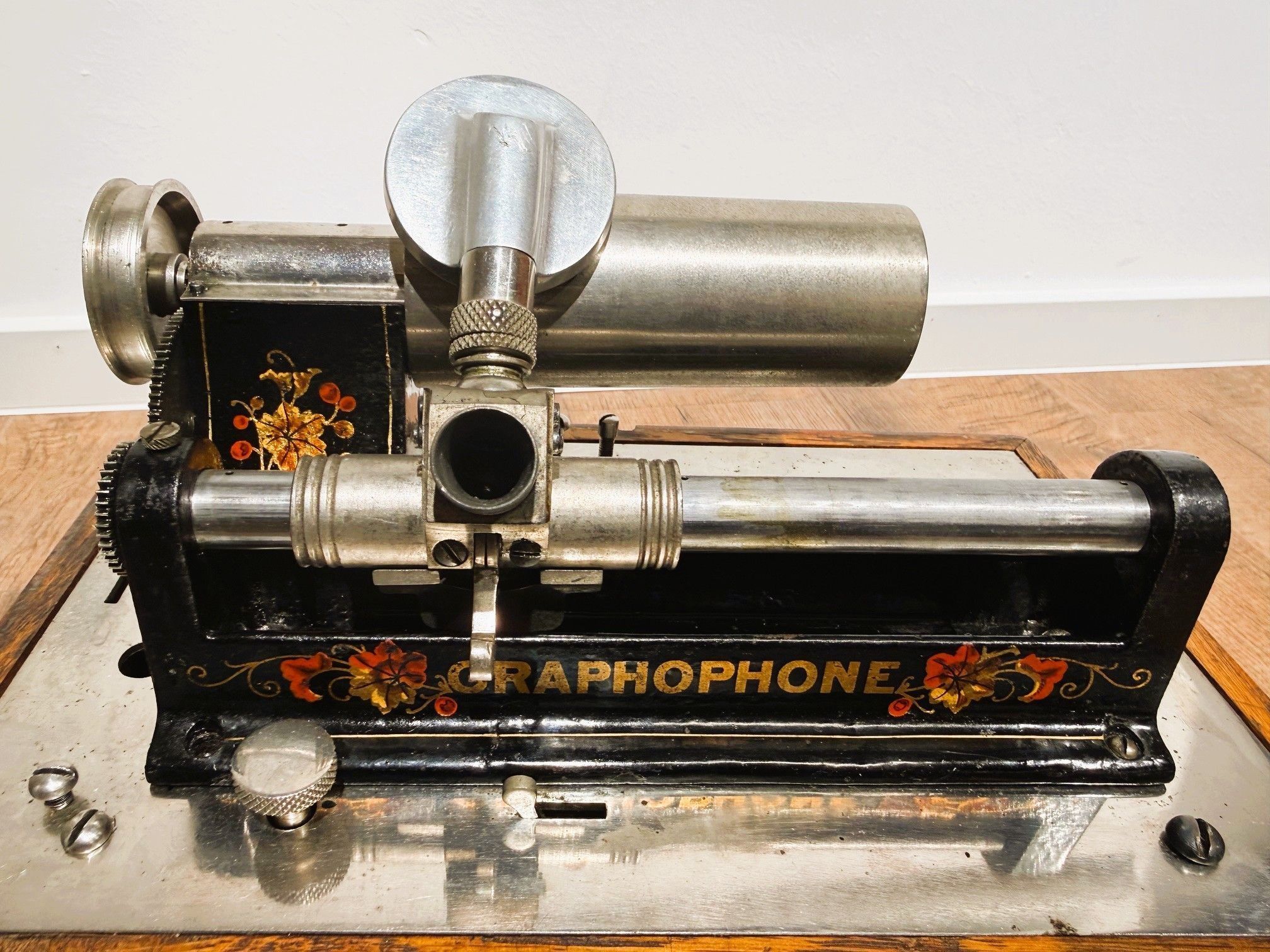

The machine features:
a double-spring motor providing smoother operation and longer playing time

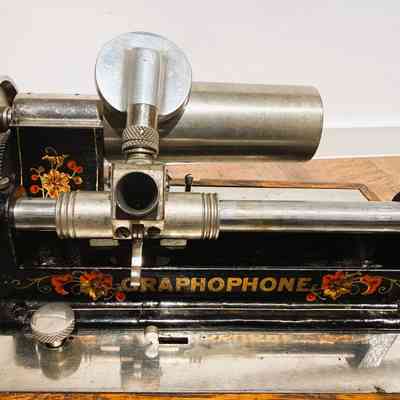

a feed screw for precise movement of the reproducer carriage
an open and robust gear mechanism
a solid cylinder mandrel
Important for classification:
The Type AT still belongs to the generation of early Columbia machines equipped with traditional, free-floating reproducers, clearly distinguishing it from later models with more advanced soundbox constructions.
Model Development and Variants
The Type AT was produced over several years in different versions.
Early machines are characterized by their decorative cabinet and an inclined carriage mounting. Later variants show structural modifications, including a more horizontal arrangement of the mechanism and simplified cabinet designs.
The present example belongs to the early, classic version, featuring an elaborately designed cabinet and a particularly representative appearance.
Significance within Development
The Graphophone Type AT represents a key moment in the history of sound recording:
It successfully combines:
technical reliability
industrial mass production
domestic-friendly design
With this, the phonograph finally evolved from an experimental apparatus into a marketable consumer product.
While earlier machines were often purely functional, the Type AT marks the beginning of a new era in which sound technology, design, and everyday usability were brought together.
