Alterations and Additions to Residence No. 59 Church Street, for Frank E. Whitman, Esq., New York City

Name/Title

Entry/Object ID

CHURCH.059.14

Scope and Content

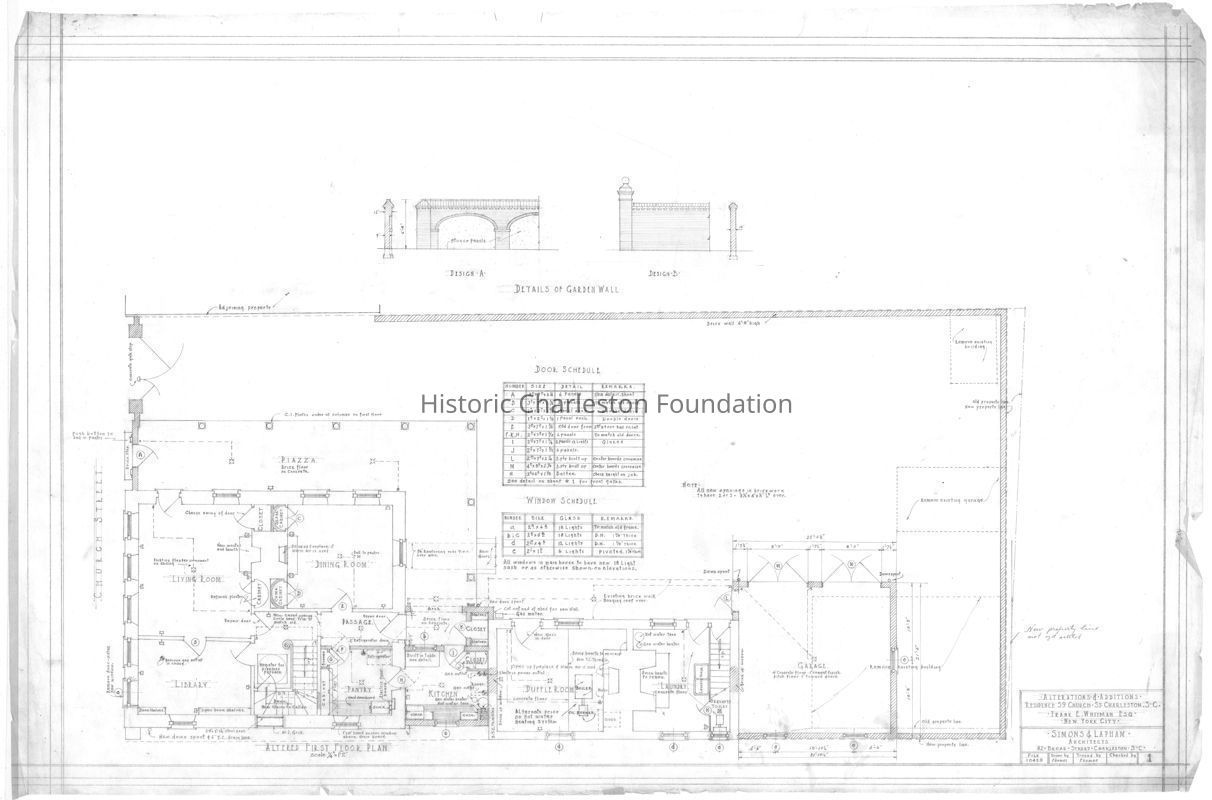

Title of drawing: Alterations & Additions to Residence No. 59 Church Street, for Frank E. Whitman, Esq., New York City Date of drawings: Undated (likely 1929) Name of creator: Simons & Lapham, Architects; drawn by [Stephen] Thomas Sheet 1: Details of garden wall (designs A&B), altered first floor plan with window and door schedules Sheet 2: Altered second floor plan, foundation plan, altered attic floor plan with window and door schedules Sheet 3a: Alternate street elevation, alternate south elevation Sheet 3: Existing first floor plan, existing second floor plan, existing attic floor plan Sheet 4: Existing street elevation, altered street elevation Sheet 5: Altered north elevation, altered south elevation "File 10429." For reference use only. Permission to reproduce must be obtained from the SC Historical Society.

Collection

Historic Charleston Foundation Property Records

Acquisition

Accession

CHURCH.059.

Source or Donor

59 Church Street (Thomas Rose House)

Acquisition Method

Collected by Staff

Lexicon

Nomenclature 4.0

Nomenclature Secondary Object Term

Drawing, Architectural

Nomenclature Primary Object Term

Projection

Nomenclature Sub-Class

Graphic Documents

Nomenclature Class

Documentary Objects

Nomenclature Category

Category 08: Communication Objects

Search Terms

Architectural drawings, Floor plans, Elevations, Thomas Rose House (Charleston, S.C.)--Designs and plans

Archive Details

Creator

Simons & Lapham Architects (Firm)

Archive Size/Extent

5 sheets, 26" x 40" + 1 sheet, 15" x 33" (photocopies)

Archive Notes

Date(s) Created: Undated (likely 1929) Date(s): likely 1929 Associated Material: SCHS, call no. 42-35, also contains the following additional drawings: Drawing 1: Title of Drawing: Frank E. Whitman Residence, Grill as Shown, Finish Red Oxide of Iron [1 page] Date: Nov. 11/ 1927 Creator(s): Savannah Iron and Wire Works; M. L. Stephenson, Contractor; Simons & Lapham, Architects; Drawn by E.J.W. Description: Drawing of grill with S&L revisions and note, " make one grill as shown, use Swedish Iron." One page. Notes: Order #9233. Numbered 1 drawing of 3 but only 1 page is in file. Drawing 2: Alterations for Apartment at Residence of Henry P. Staats Date: Undated [2 pages] Creator(s): Albert Simons, Architect Sheet 1: First floor plan, detail of new fireplace, detail of header in garage, south elevation Sheet 2: Second floor plan, west elevation, north elevation Drawing 3: Title of Drawing: Alterations & Additions to Residence No. 59 Church Street, for Frank E. Whitman, Esq., New York City [1 page] Date: Sept. 20, 1929 Creator(s): Simons & Lapham, Architects Description: Street elevation showing balcony and plan of balcony Finding Aids: See Finding Aid to Architectural Drawings, Maps, and Plats. See List of Properties; then locate Cabinet, Drawer, Folder. Level of Description: Item Location of Originals: Original drawing at SC Historical Society, under call no. 42-35
