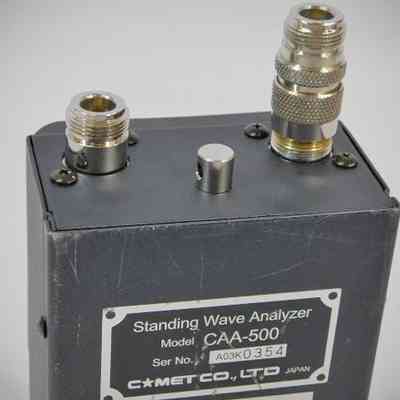

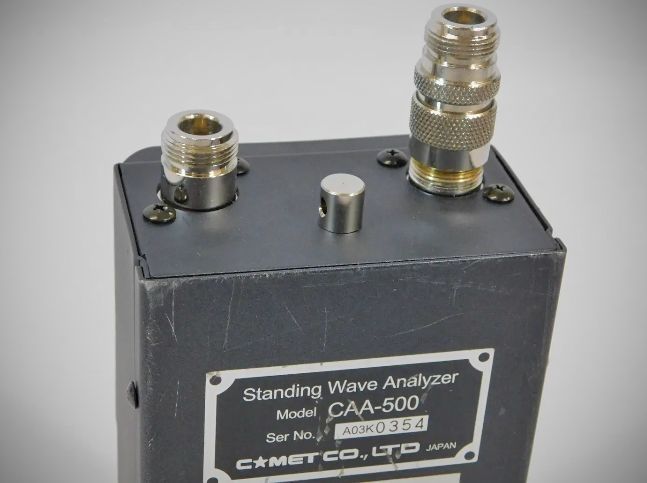

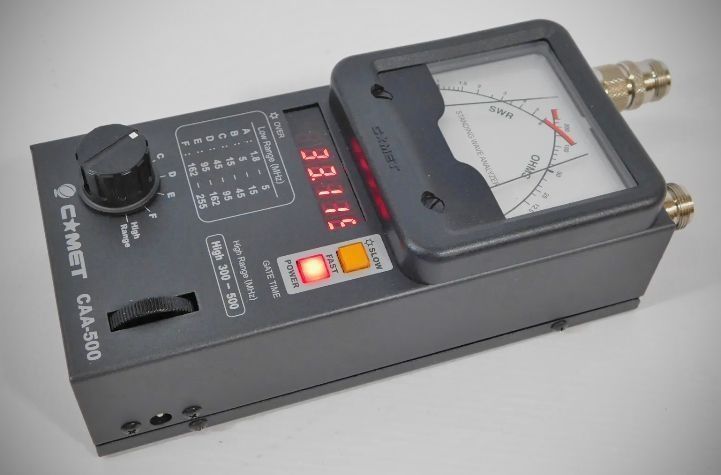

The COMET CAA-500 is a standing wave analyzer designed for antenna testing. It features a built-in broadband high-stability transmitter that allows for easy measurement of resonant frequency, SWR, and impedance. A key feature is its cross-needle meter display, which provides both SWR and impedance information simultaneously. For portability, it can operate for 12 hours continuously using standard AA alkaline batteries.
Frequency Range: 1.8-500MHz, 7 range division
RF Power: 0 dBm
SWR Measurable Range: 1.0~08
Impedance Range: 12.5~300Ω
Connectors: M-Female (A~F Range), N-Female (High Range)
Power: 6 AA Alkaline batteries or External DC 8~16V
Consumption Current: <180mA
Dimensions
(W) 86 x (H) 180 (195) x (D) 62 (65) [mm]
Weight
Approx. 900g (with Dry-cell)
