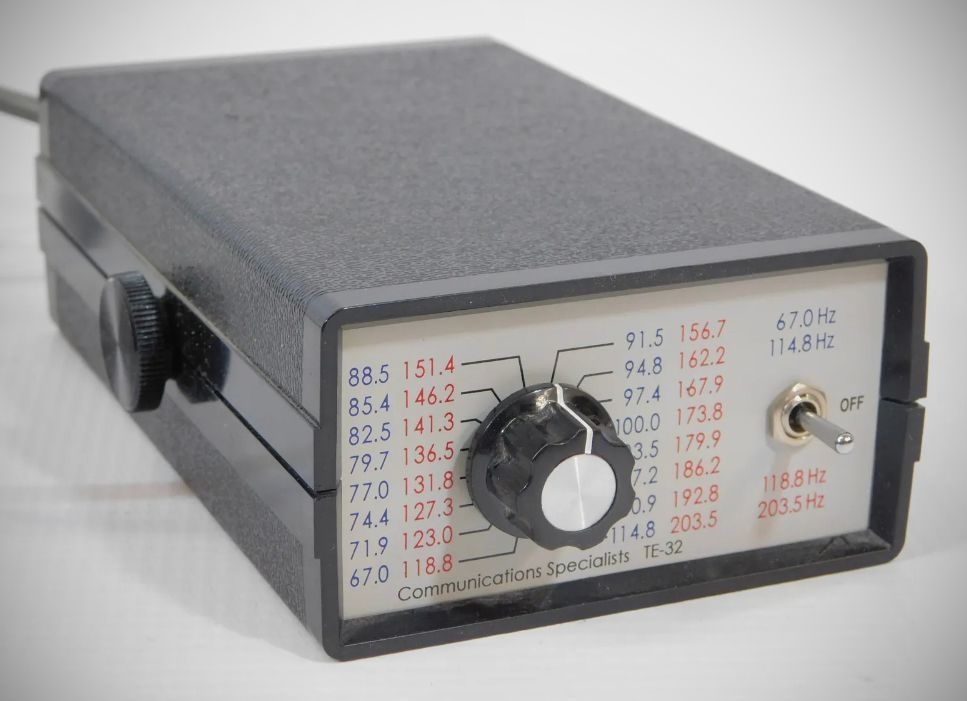

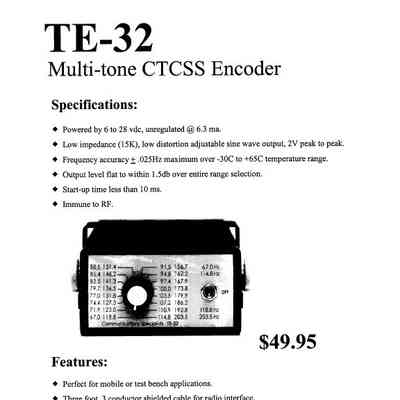

The TE-32 is a multi-tone Continuous Tone-Coded Squelch System (CTCSS) encoder designed for both mobile and test bench applications. Built around the SS-64 encoder model, it is housed in a high-impact plastic case and features a mounting bracket for easy installation.
The device allows for the selection of 32 different CTCSS tone frequencies using a combination of a 16-position rotary switch and a 3-position toggle range switch.
Tone Count: 32 EIA standard tones (67.0 Hz to 203.5 Hz)
Power Requirement: 6 to 28 VDC, unregulated @ 6.3 ma
Frequency Accuracy: ±0.025 Hz maximum from –30C to +65C
Low impedance (15K): low distortion adjustable sine wave
Output Level: 2V peak to peak; flat within 1.5db over entire range
Start-up Time: < 10 ms
RF Immunity: Fully immune to RF
