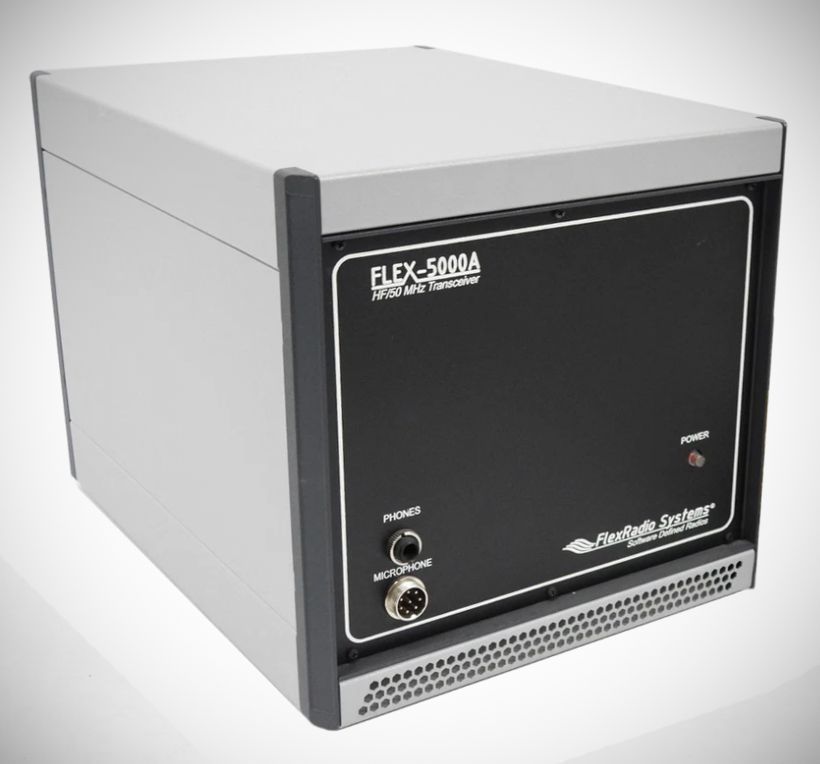

The FLEX-5000A is a software-defined radio transceiver using high-performance 24-bit A/D and D/A converter technology to provide world-class receiver performance.

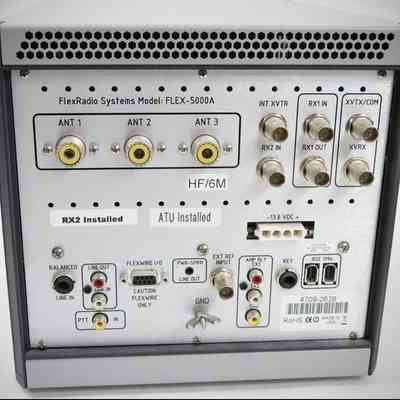

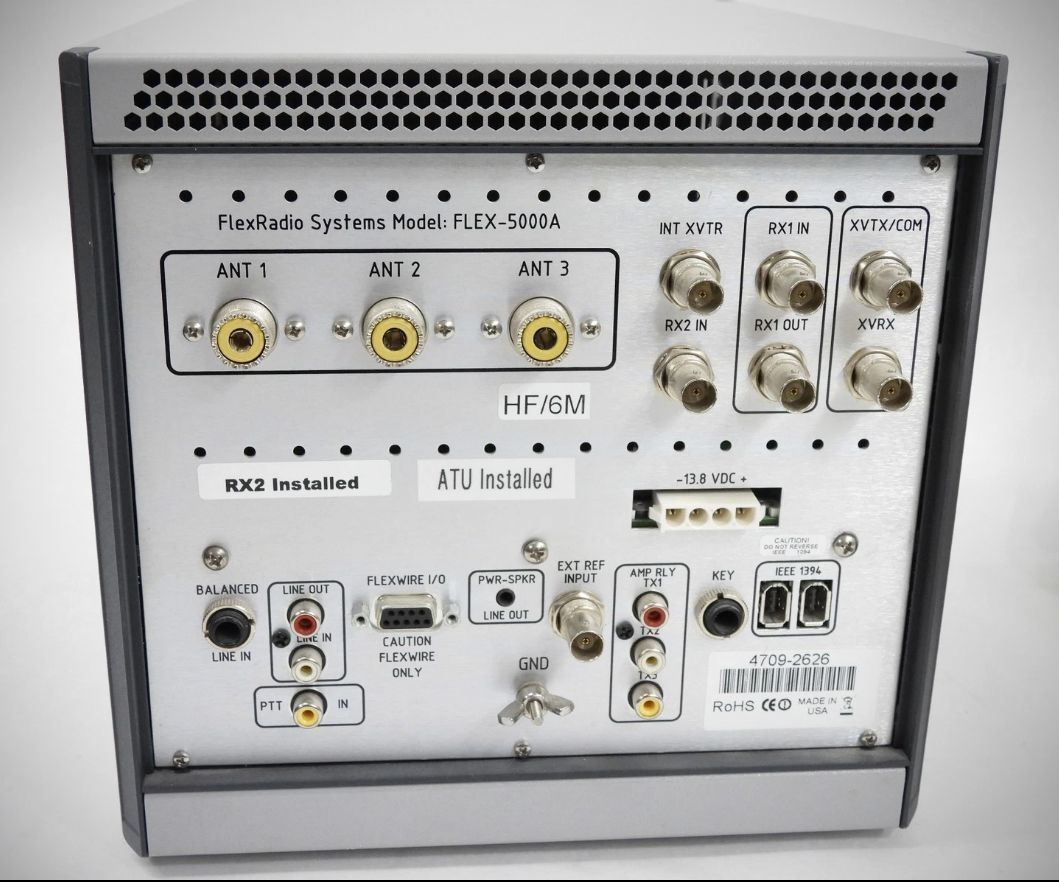

The FLEX-5000A is an HF-6M transceiver that utilizes FlexRadio’s unique Quadrature Sampling Detector (QSD) and Quadrature Sampling Encoder (QSE) technology. It is designed to work in conjunction with a PC running Windows (XP, Vista, or 7) via a FireWire connection. The system is powered by the PowerSDR software, which is a GPL open-source platform. The hardware includes multiple antenna ports, keying circuitry, and a full-featured transverter interface.
Features
– Broad Bandwidth: Offers 192 kHz of real-time receive bandwidth display with infinitely tunable filters.
– High Dynamic Range: Delivers greater than 99 dB of Two-Tone 3rd order dynamic range at 2 kHz spacing.
– Power Output: Features a highly linear 100-watt continuous duty amplifier suitable for all analog and digital transmission modes.
– Expandability: Includes options for a second fully synchronous receiver and an automatic antenna tuner (standard on the FLEX-5000AT model).
– Advanced Audio: Provides balanced and unbalanced audio options, including a 3-band or 10-band software equalizer.
Specifications
– Frequency Range (Rx): 10 kHz - 65 MHz (Operating); 160-6m (Specified performance)
– Frequency Range (Tx): 160-6m Amateur bands only
– Modes: CW, AM, LSB, USB, FM, RTTY, and Packet
– Power Output: 1-100 Watts PEP (CW/SSB); 25 Watts AM carrier
– Receiver IP3: +30 dBm at 14 MHz (preamp off, =<2 kHz spacing)
– Selectivity (-6/-60 dB)** | CW: 500/640 Hz; SSB: 2.39/2.54 kHz; AM: 6.60/6.74 kHz
– Frequency Stability: ±0.5 ppm TCXO (0º C – 50º C)
– Antenna Impedance: 50 Ohms nominal; 16-500 Ohms with optional tuner
Supply Voltage: 13.8 VDC ±10%
Current: (Rx): 1.5 amps, (Tx): 25 amps max
