Note

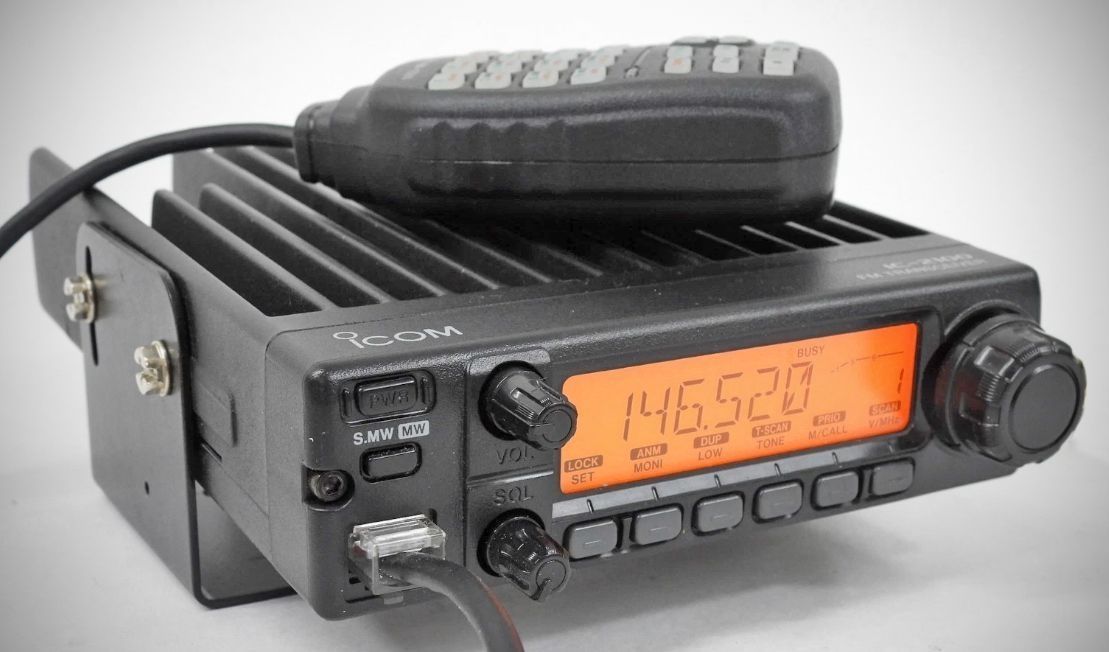

The Icom IC-2100H is a rugged 2-meter FM mobile transceiver built with a one-piece die-cast aluminum chassis for superior heat dissipation and durability. It is designed for high-power operation, delivering up to 55W of RF output. The radio features a large, customizable alphanumeric display and a straightforward user interface. The device is built for mobile operation with a cooling fan to ensure stable long-term performance.
Features
– High Output Power: Delivers a powerful 55W of output.
– Alphanumeric Memory: Features 113 memory channels, including 1 call channel and 3 pairs of scan edges, which can be labeled with 6-character names.
– User-Friendly Interface: Equipped with a large, multi-function display and a front-panel layout that includes a tuning dial and dedicated buttons for quick access to common functions like power selection and duplex settings.
– Advanced Scanning: Offers multiple scan types, including programmed scan, memory scan, and priority watch, with adjustable scan resume conditions.
– Subaudible Tones: Includes a built-in CTCSS (Continuous Tone-Coded Squelch System) encoder and decoder for repeater access and quiet standby.
– Rugged Design: Meets military standards for shock and vibration and features a one-piece die-cast aluminum chassis for excellent heat dissipation.
– Wireless Operation Capability: Supports wireless remote control when used with the optional HM-90 wireless microphone and EX-1759 infrared receiver.
Specifications
Output Power: High: 55 W; Mid: ~10 W; Low: ~5 W
– Frequency Coverage
Transmit: 144–148 MHz
Receive: 136–174 MHz
– Mode: FM
– Number of Memory Channels: 113 (including 3 scan edge pairs, 6 scratch pad memories, and 1 call channel)
– Tuning Steps: 5, 10, 12.5, 15, 20, 25, 30, and 50 kHz
– Receiver System: Double-conversion superheterodyne
– Sensitivity: Less than 0.18 µV (at 12 dB SINAD)
– Audio Output Power: More than 2.4 W at 10% distortion with an 8 Ω load
– Spurious Emissions: Less than -60 dB
– Operating Temperature: −10∘C to +60∘C (+14∘F to +140∘F)
– Antenna Impedance: 50 Ω (PL-259 connector)
Power Requirements
13.8 V DC ±15%
Current Drain
Transmit (Max Power): 12.0 A
Receive (Max Audio): 1.0 A
Receive (Standby): 0.8 A
