The AT-200ProII is a 250-watt automatic tuner. The AT-200ProII provides fully- and semi-automatic antenna tuning across the entire HF spectrum plus 6 meters, at power levels up to 250 watts (100W on 6m). It will tune dipoles, verticals, Yagis, or virtually any coax-fed antenna.
It will match an amazing range of antennas and impedances, far greater than that of the built-in tuners on many transceivers.
While very similar, the "II" version introduced a few refinements:
– Improved LED Logic: The bar graphs were updated for better readability.
– Refined Algorithms: Faster and more accurate matching in difficult high-impedance scenarios.
– Firmware Tweaks: Better handling of the antenna switching logic via the front panel.
SPECIFICATIONS
– 1.0 to 250 watt power range (SSB and CW), 100W on 6M.
– 1.8 to 54.0 MHz coverage. Built-in frequency sensor.
– Tunes 6 to 1,000 ohm loads (16 to 150 on 6m), 6 to 4,000 ohms with optional 4:1 balun.
– Tuning time 0.2 to 15 seconds full tune, 0.2 seconds memory tune.
– Over 4,000 memories for instantaneous band changing.

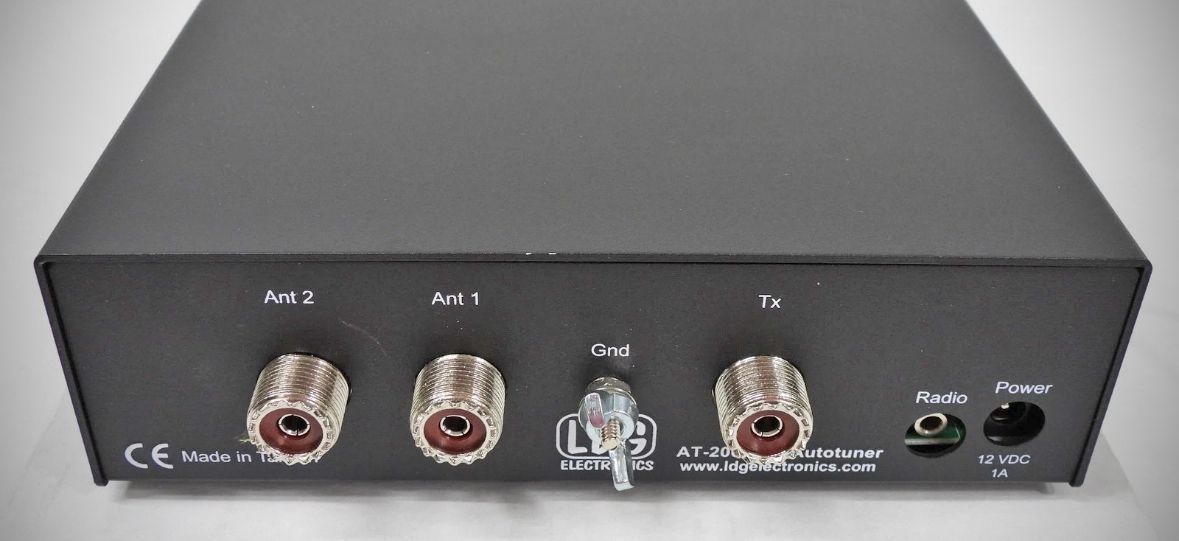

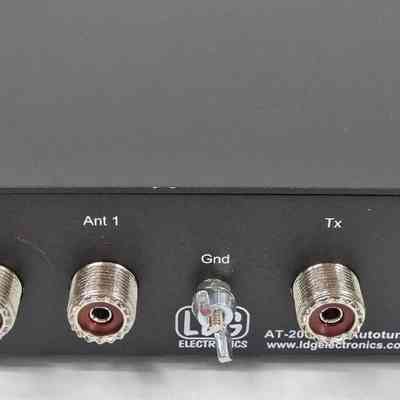

– Built-in 2-port antenna switch, with 2,000 memories each.

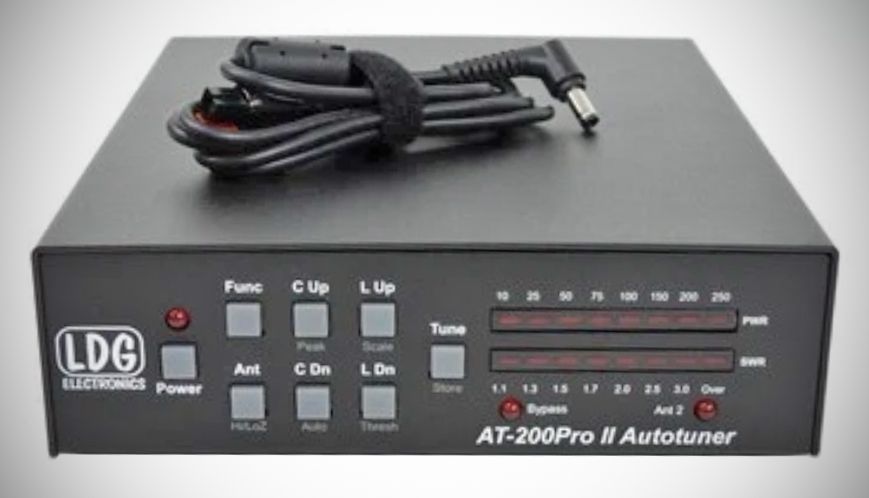

– LED bargraph displays power level, SWR, and status.
– Antenna Indicator LED shows the currently selected antenna.
– Bypass Indicator LED
– User-selectable operating parameters: Auto/Semi, 250/25 watt scale, and more.
– Optional Radio interface cables for Icom and Yaesu are available.
Power requirements: 11 to 16 VDC @ 1A max.
