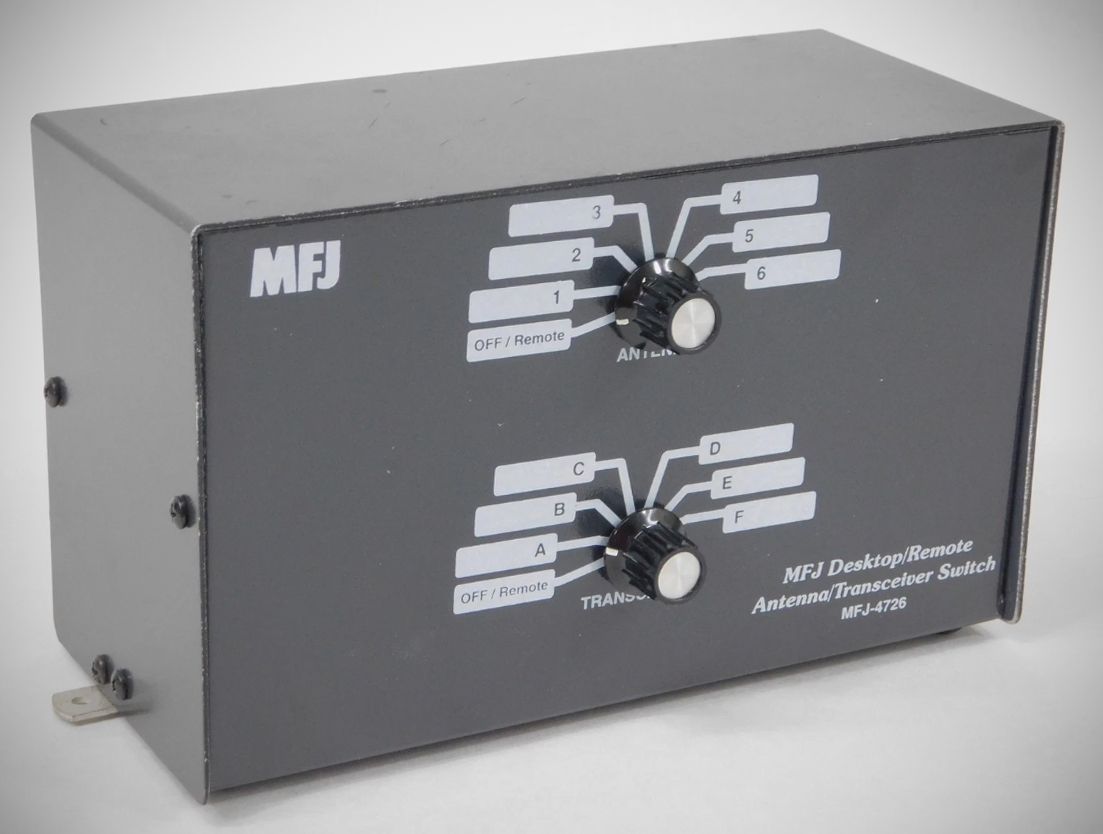

MFJ 4726 Desktop/Remote 6-Position Antenna/Transceiver Switches are versatile, multi-function switches designed to switch up to six 50 ohm antenna systems to six transceivers in any combination. They handle high power up to 1,500 watts and their sealed relays offer excellent life and connection reliability.

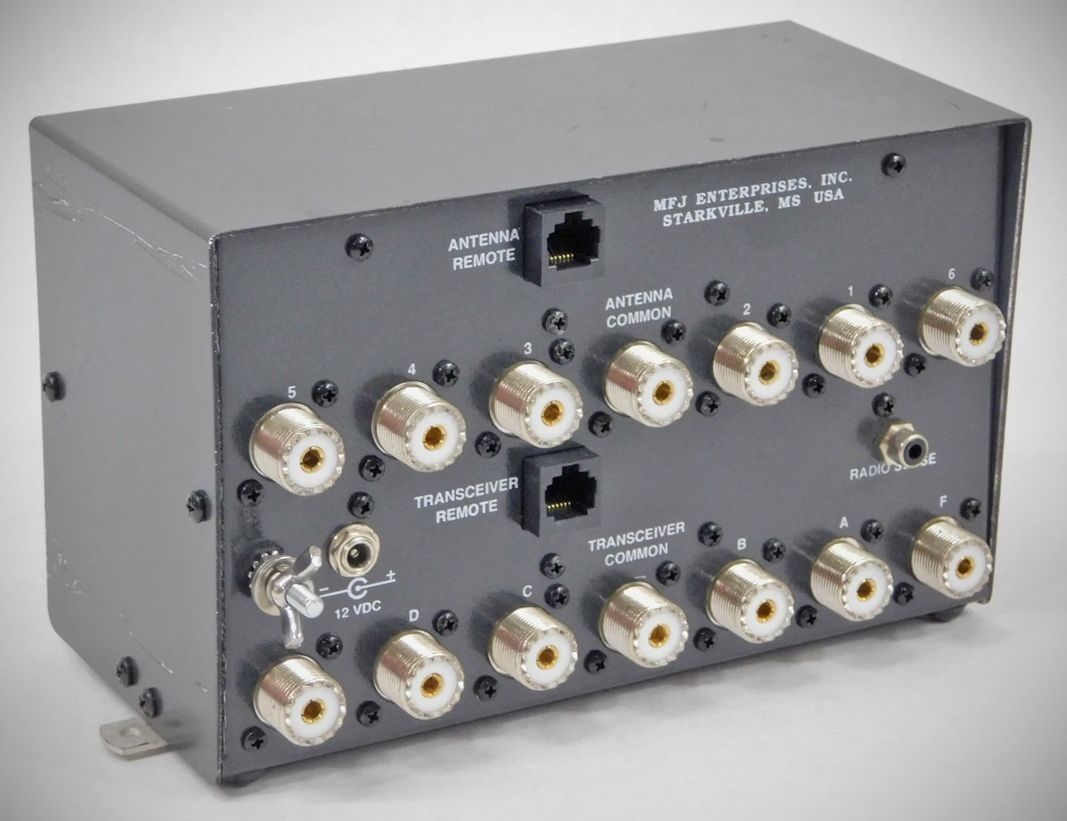

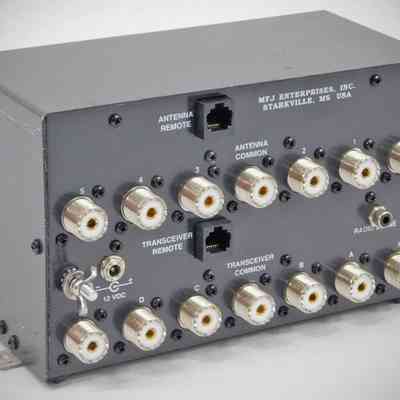

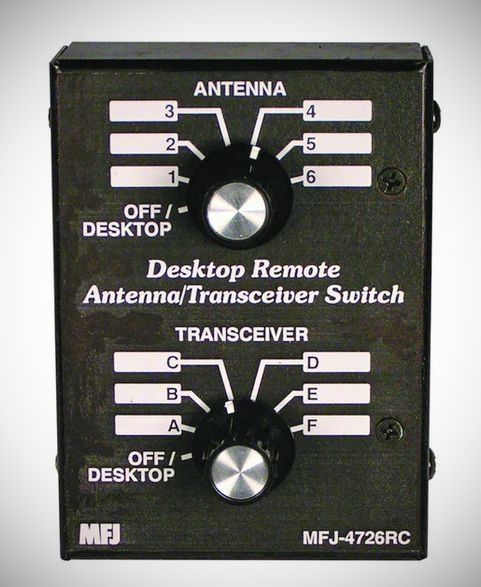

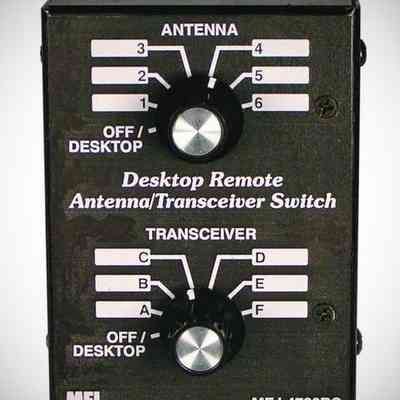

These units are operational from 1-60 MHz (low SWR 1-30 MHz). They can be placed on the desk, under the desk, or even in another room (remote control required, sold separately). In the off/remote position, all inputs are grounded or control is transferred to the MFJ-4726RC remote control. All unused inputs are grounded. You can connect a sense line to your transceiver so that, when it's off, all inputs are automatically grounded. All RF connectors are SO-239 (UHF female).
These switches feature an ultra-fast gas discharge tube lightning surge protector that protects the transceiver and safely shunts static electricity and lightning-induced surges safely to ground. They do not protect against a direct lightning hit.
MFJ 4726 Desktop/Remote 6-Position Antenna/Transceiver Switches will work well in nearly any system requiring the switching of coaxial lines, especially those requiring good quality 50 ohm RF switches.
