The MFJ-868(B) measures peak or average forward and reflected power as well as standing wave ratio. It is designed to operate on 1.8-60 MHz.
The unit has three power scales, which are selected with the front panel switch. The high power scale measures 0-2000 watts forward or reflected power. The mid power scale measures 0-200 watts forward and reflected power. The low power scale measures 0-20 watts forward and reflected power. A power saver circuit turns the meter on only when RF power is being measured.

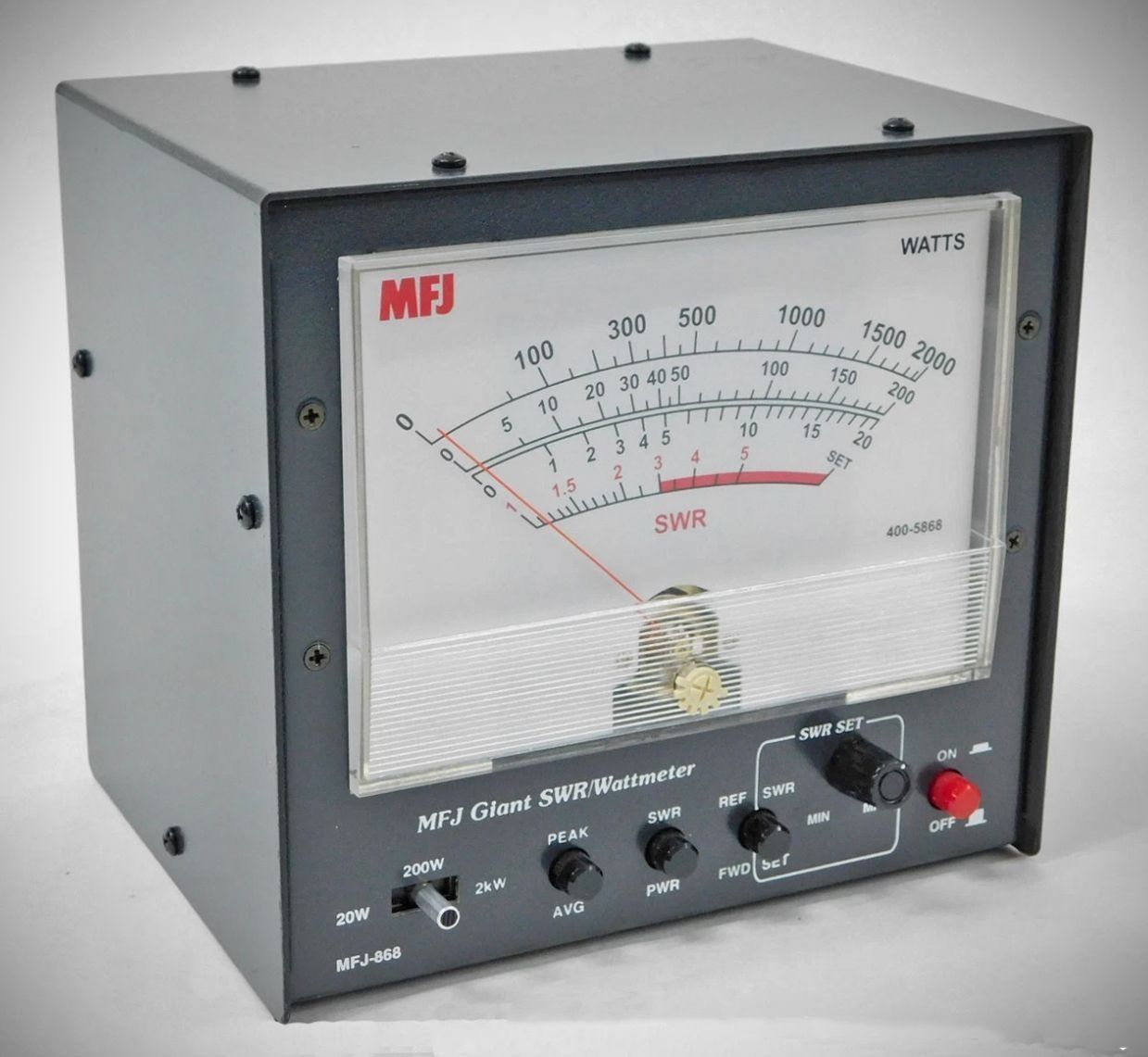

The MFJ-868B utilizes a large illuminated 6.5-inch single-needle meter to read the SWR from 1:1 to ∞.
Basic features
• Easy-to-Read Scales: Large numbers and pickets make reading a breeze.
• Power Saver Circuit: Meter turns on only when transmitting.
• Three Power Scales: 20/200/2000 Watt power scales.
• Forward and Reflected: Measures forward power and reflected power.
• Peak or Average Reading: Measures Peak or Average power.
• Power or SWR: Measures Power and SWR.
• Easy-to-Set SWR: Easy set for accurate SWR measurements.
• Frequency Range: 1.8 - 60 MHz.
• Input/Output Impedance: 50 Ohms.
