### Description

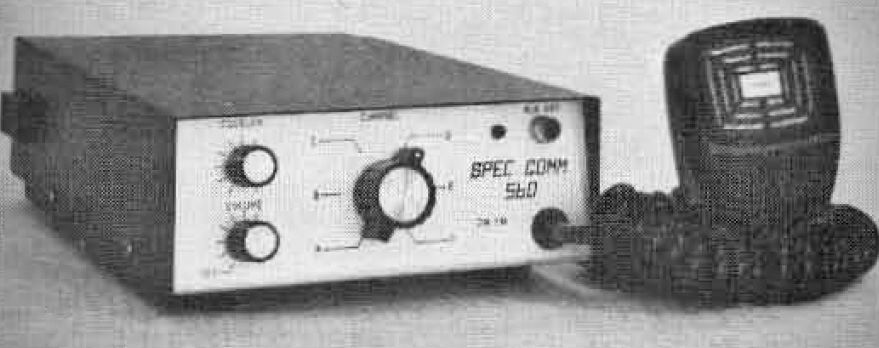

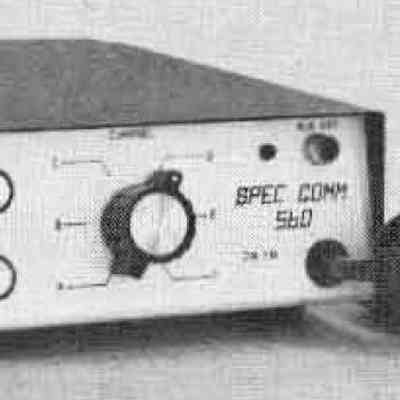

The SpecComm 560 is an "expandable" 5-watt 2-meter FM transceiver designed to offer state-of-the-art performance and versatility at an affordable price. Engineered with extensive integrated circuitry and a wide dynamic range FET front end, it provides high reliability along with excellent intermodulation and overload protection. It could be used mobile, as a base station, or over-the-shoulder portable with optional antenna and carrying pack.
Key features include:
A six-pole monolithic crystal filter operating at a 10.7 MHz single-conversion I.F. for superior adjacent channel rejection.
A low-distortion phase modulator with speech clipping (up to 12 dB) for clear, strong transmit audio.
A fully VSWR-protected final stage transistor, eliminating the need for complex shutdown circuits.
Support for modular clip-on accessories to configure the unit for portable (over-the-shoulder), mobile, or fixed operation.
Uses standard, readily available TR22-type crystals.
Specifications
– Sensitivity: 0.5 µV (typ.) 20 dB quieting
– Bandwidth :±0.5 kHz @ -6 dB; 20 kHz @ -60 dB
– Front End: FET w/ wide dynamic range mixer for very low I.M.
– I.F.: 10.7 MHz, single conversion
– Squelch: Fast attack; noise operated
– Audio Output: 2 watts (nom.), 3–8 ohm speaker
– Power Output: 5 watts (typ.) @ 12.5 VDC
– Modulation: Low distortion phase modulator, w/ up to 12 dB of Speech Clipping
– Deviation: Adjustable; factory set to ±5 kHz
– Final Stage: Fully VSWR protected
– Microphone: Hi Z Ceramic, (Turner)
– Frequency Range: 146 to 148 MHz
– 12(6) channels w/ trimmer caps on all crystals
– Reverse polarity protected
– Built-in speaker
– Electronic T/R switching
Accessories
Portable BP-1 (Ni-Cad battery, charger, antenna, carrying strap), $89.95

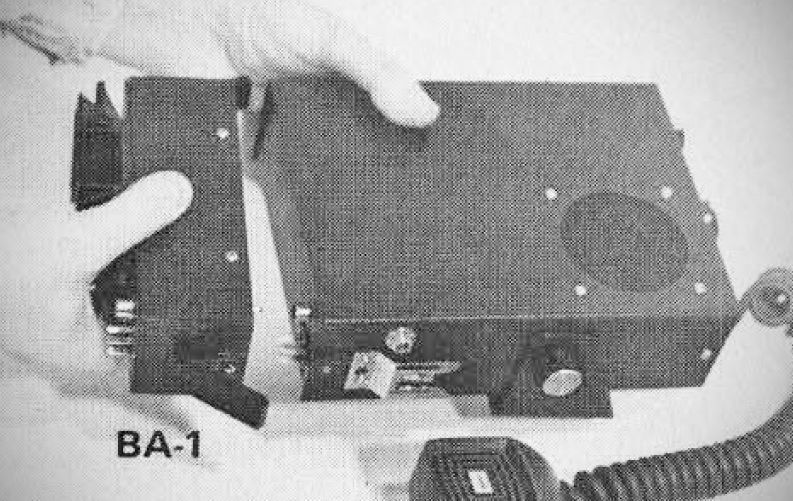

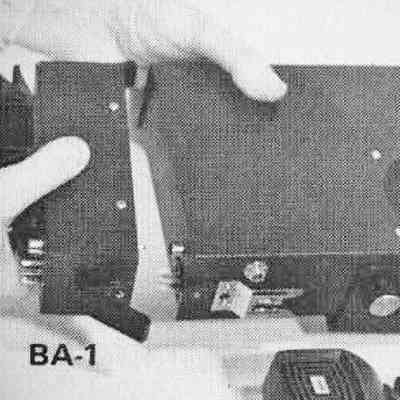

Mobile BA-1 (with 25 watt Amplifier) $84.95
Base AC-1 (AC Supply) $49.95
Companion Synthesizer (SC-1800M)
Model 512, 12 channel, $249.95
Model 560, 6 channel, $224.95
References

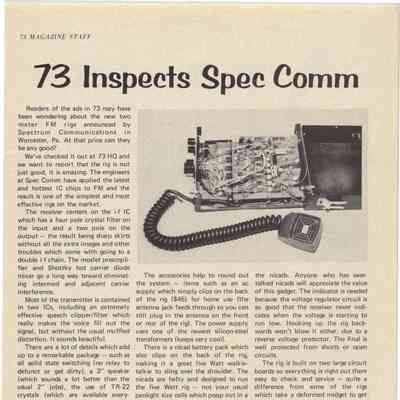

Review. 73, Apr 1975, p. 9.
