Note
The Vectronics VEC-512 is a rebranded MFJ-212 "Matchmaker."
The VEC-512 is a specialized device designed to facilitate antenna tuning without the need for active transmission. By utilizing internal noise generation, it allows operators to achieve a precise match while protecting equipment and maintaining radio silence.
The unit is an easy-to-use bridge device that installs directly between a transceiver and an antenna tuner. It functions by generating a modulated "white noise" signal that the operator listens for through the receiver. By adjusting the antenna tuner until this noise reaches a minimum point—either by ear or by observing the S-meter—the operator can identify a 1:1 SWR match without radiating power.
Features
– Silent Tuning: Enables tuning of an antenna system without transmitting a single milliwatt, preventing interference (QRM) to other operators.
– RF Guard Protection: Features a bypass circuit that automatically protects the unit from damage if the transceiver is accidentally keyed during the tuning process.
– Equipment Safety: Helps avoid overheating and electrical arcing in transceivers and tuners caused by high SWR during traditional tune-ups.
– Modulated Signal: The tuning noise is pulsed and modulated, making it easily distinguishable from standard atmospheric background noise.
– Dual Power Options: Can be operated using an external DC power supply or an internal battery for portable use.
Specifications
– Frequency Range: 160 meters through 6 meters
– Input Power: 12 VDC, 300 mA
– Power Connector: 2.1 mm coaxial plug (Center positive, sleeve ground)
–Battery Option: 9V Alkaline battery (internal)

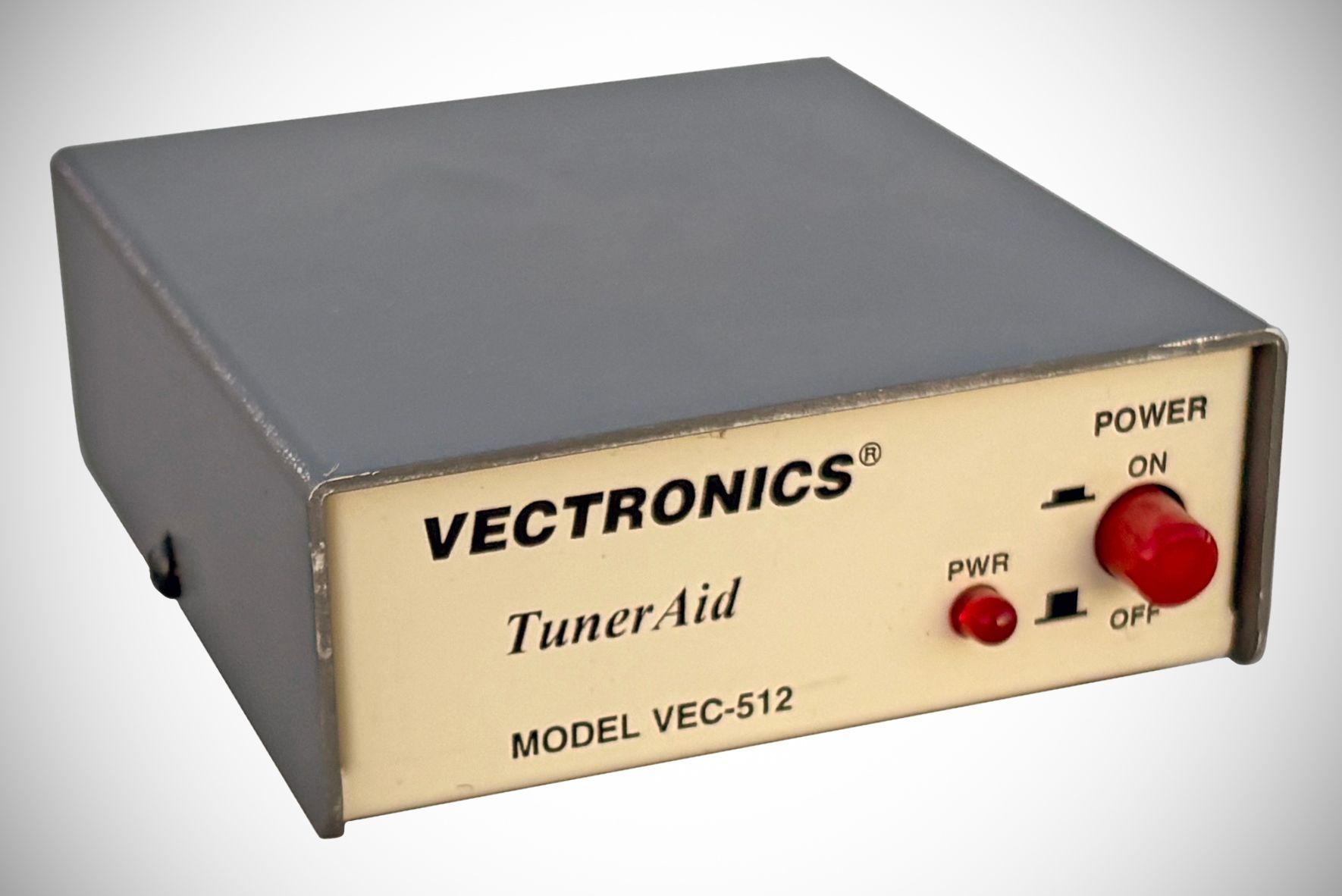

– Indicators: Flashing PWR LED when active

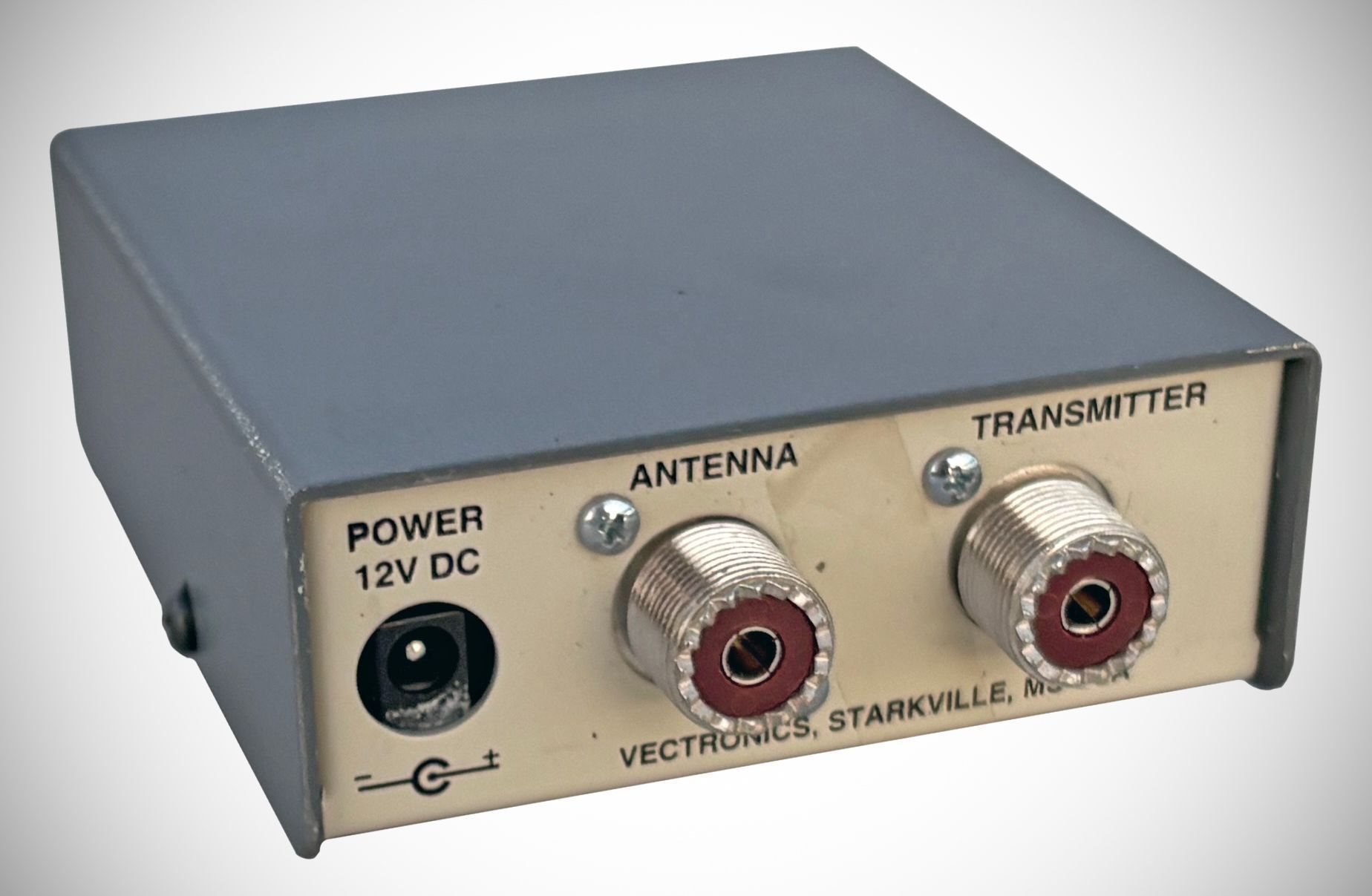

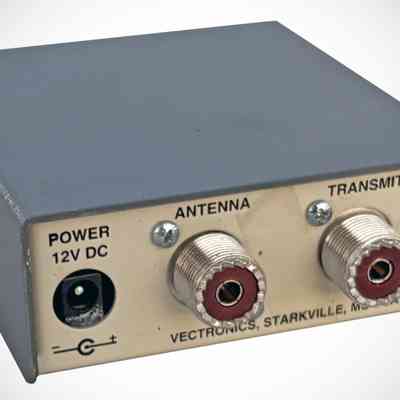

– Rear Terminals: TRANSMITTER and ANTENNA jacks
