** Workman SX-144/430

Object/Artifact

-

Radio Alpha

Image: hamandhifi.com

Image: hamandhifi.com

Name/Title

** Workman SX-144/430

Description

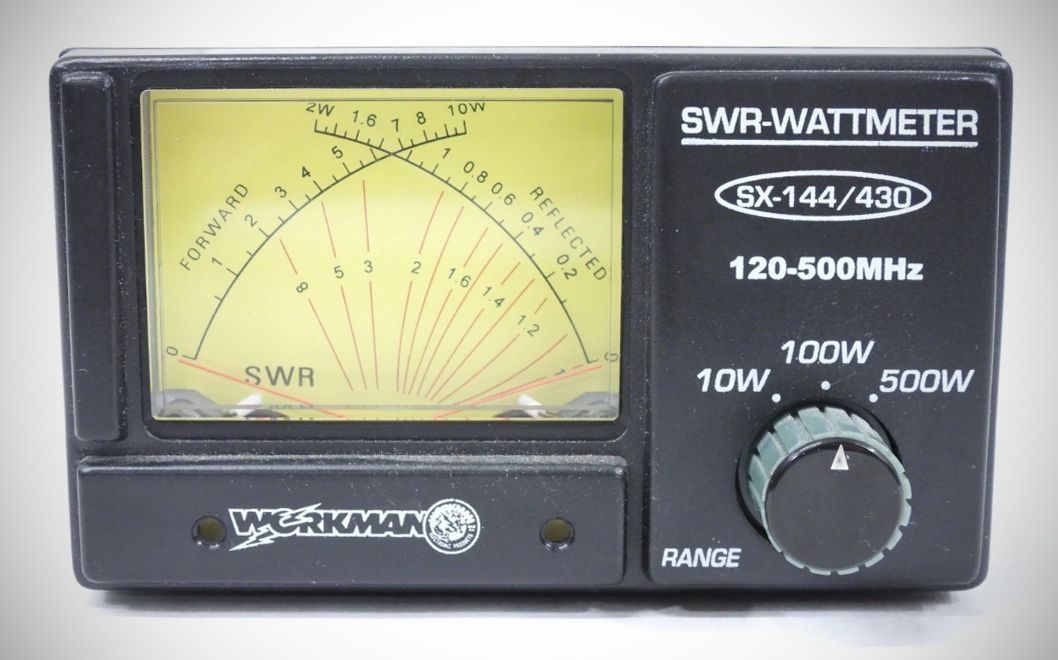

120–500 MHz SWR / Wattmeter

Category

Wattmeter, VHF, Wattmeter, UHF, SWR Meter

Made/Created

Manufacturer

Workman

Dimensions

Height

3-1/8 in

Width

5-1/8 in

Depth

5-1/2 in

Weight

1-5/16 lb

General Notes

Note

Specifications: – Frequency Range: 120–500 MHz – Input/Output Impedance: 50 – Power Range: 500W – Forward / Reflection power ratio: 5:1 – Forward Power: 10W/100W/500W (3 steps) – Reverse Power: 2W, 20W, 100W (3 steps) – Power measuring accuracy: ±10% (F.S.) – Meter Illumination: 12 VDC
