Note
Lafayette catalog number 73, p. 128.
Radio News, Dec 1938, p. 5.
Radio News, Dec 1941, p. 43.
Lafayette catalog number 87 (New York), p. 93.
Lafayette catalog number 88, p. 122.
Some ads referred to these as "student midget kits."
These were available in one, two, and three tube versions, or you could get the one tube version and add to it later, if desired. Only a BCB coil was included with the kits. Oddly (or not), the tubes were not included with the upgrade kits.
A variety of plug-in coils provide coverage from 17 to 1500 meters (approximately 18 MHz to 200 kHz), and "long wave."
One tube version uses
(1) 1E4G tube
(1) 1.5 volt A battery
(1) 45 volt B battery
For use with headphones. Has a regeneration control as well as main tuning.
Two tube version uses
(1) 1E4G tube
(1) 1C5G
(1) 1.5 volt A battery
(2) 45 volt B battery
(1) 7.5 volt C battery
"More gain and greater disance that one tube version."

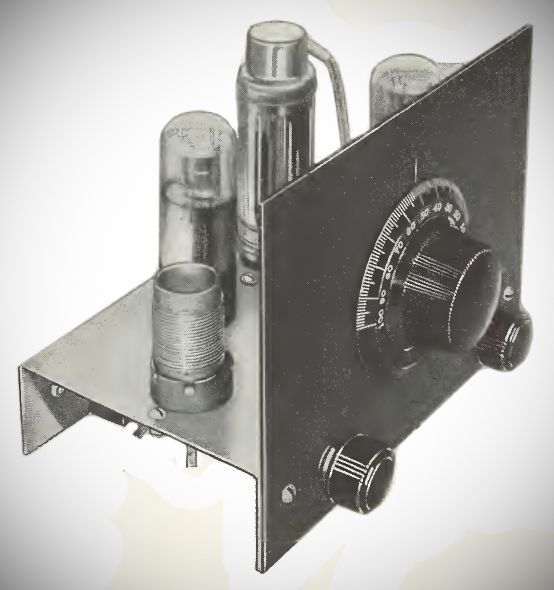

Three tube version uses
(1) 1E4G tube
(1) 1C5G
(1) 1H5G
(1) 1.5 volt A battery
(2) 45 volt B battery
(1) 7.5 volt C battery
"A really deluxe job that will operate a speaker with good volume."
Has volume control for use with headphones.
