Note
QST, Feb 1937, p. 2.
Radio Craft, Mar 1937, p. 551.
Lafayette catalog number 69, p. 99.

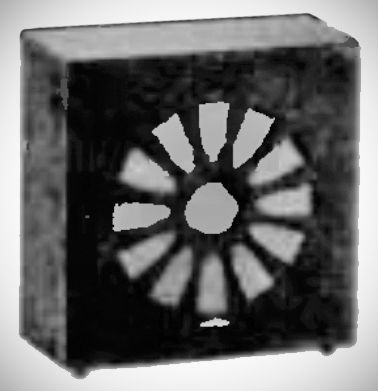

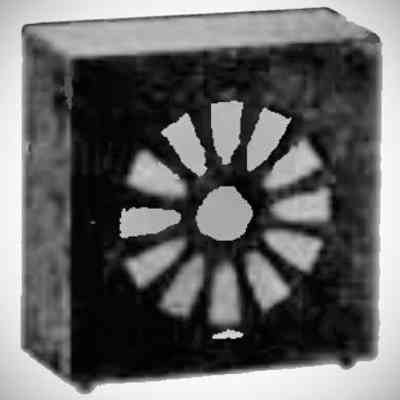

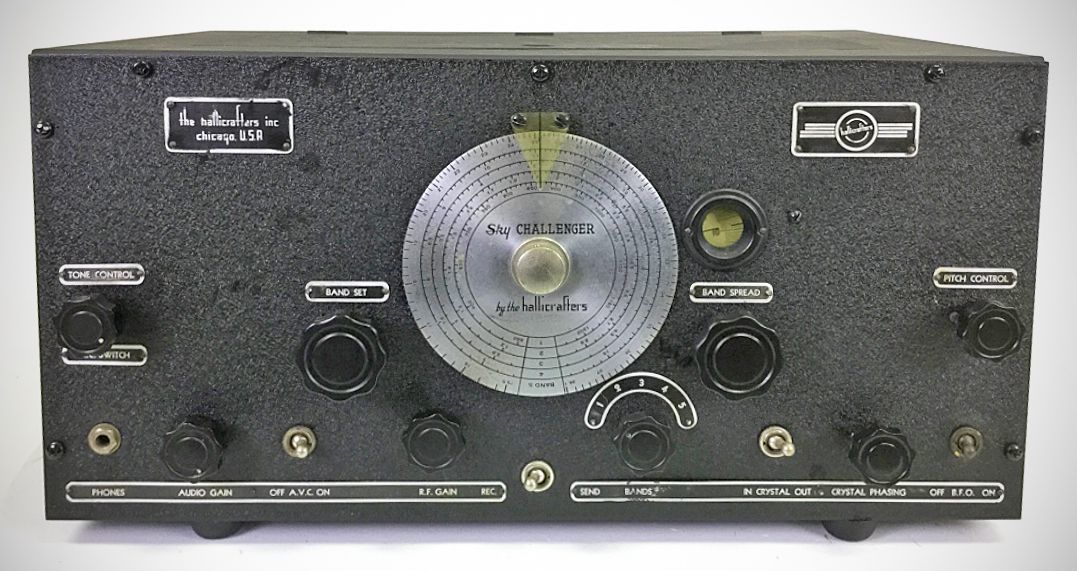

Superheterodyne. "SX" version includes a crystal filter. Requires external speaker.Two version have been noted. The most common a one-piece tob, back, and sides. The other in which the front and bottom are one piece, making access to the underside of the chassis impossible without removing the front panel.
Coverage: 540 kHz to 38.1 MHz
IF: 465 kHz

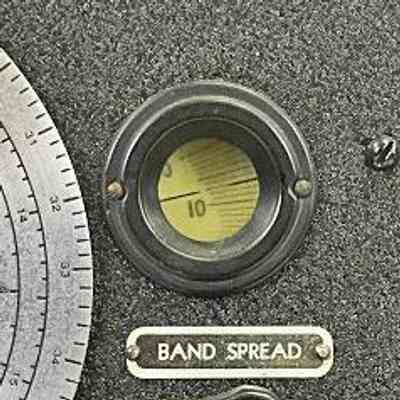

Bandspread
BFO
Power: 120 VAC
Tubes: (1) 80 (1) 6F6, (4) 6K7, (1) 6Q7, (1) 6C5, (1) 6L7
References
Brief review: Radio, Jan 1938, p. 99.
