Note
QST, Feb 1948, p. 103.
Lafayette catalog number 89, p 176.
Lafayette-Concord (1949 #949), p. 143.
Allied Radio catalog 1951 (copyright 1950), p. 137.

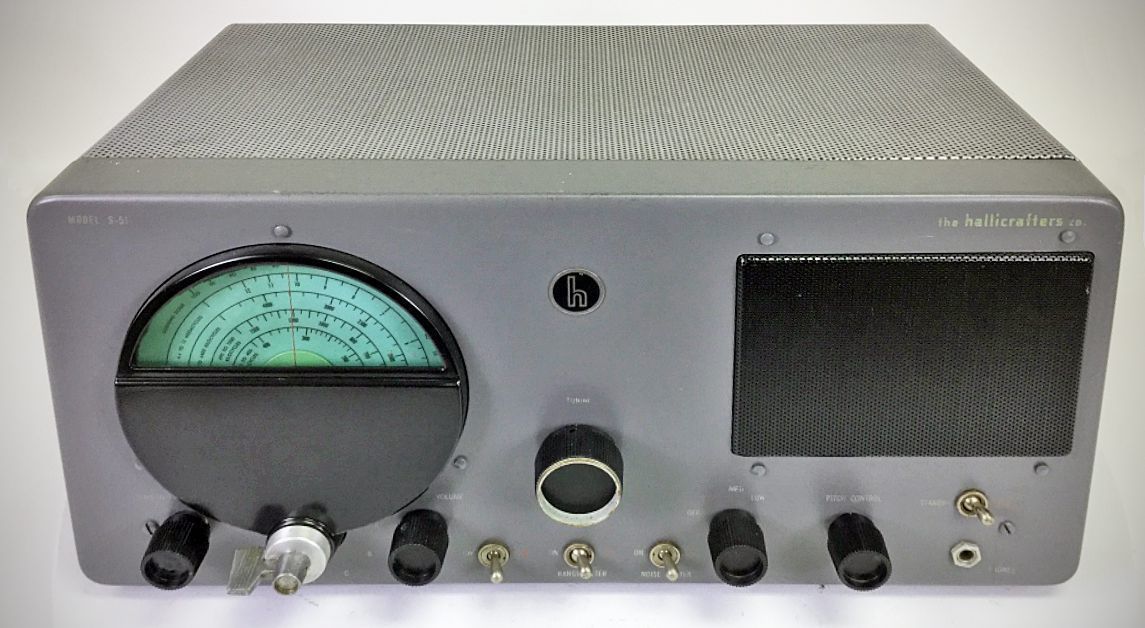

Single conversion superheterodyne circuit includes BFO, ANL, flywheel tuning, mute, standby, sensitivity, and three pre-tuned channels (not crystal controlled--set by opening the cover and making some internal adjustments). Also includes a headphone jack, a built-in speaker, and connections for an external speaker.
Note small gap in coverage.

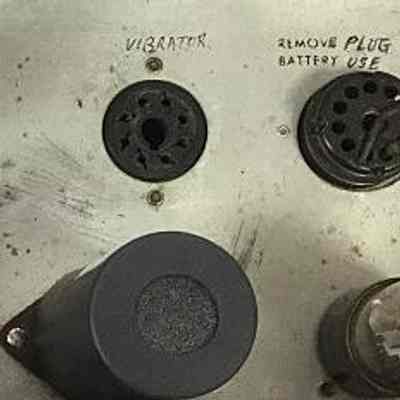

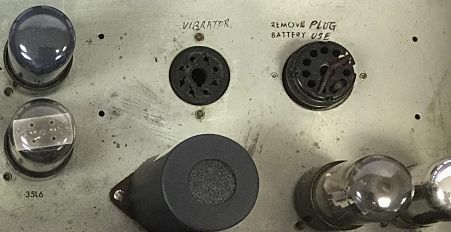

Optional power adapters for 6, 12, and 32 volts DC.
Caution: Transfomerless circuit.

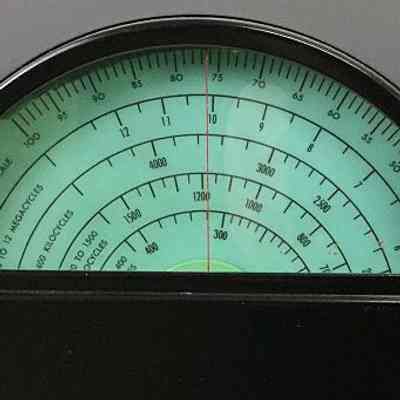

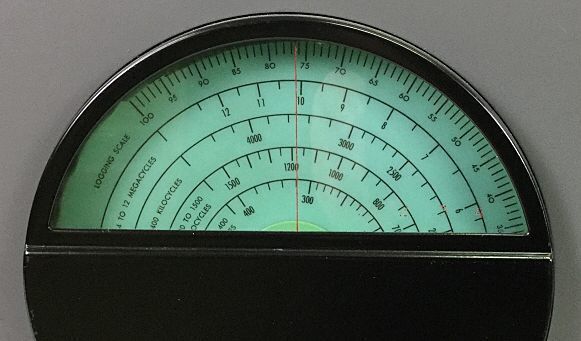

Coverage: 132 to 405 kHz; 485 kHz to 13 MHz
IF: 455 kHz
Modes: AM, CW
BFO
ANL
Built-in speaker
Audio output: 1 watt, 3.2 Ω
Power: 120 volt AC-DC

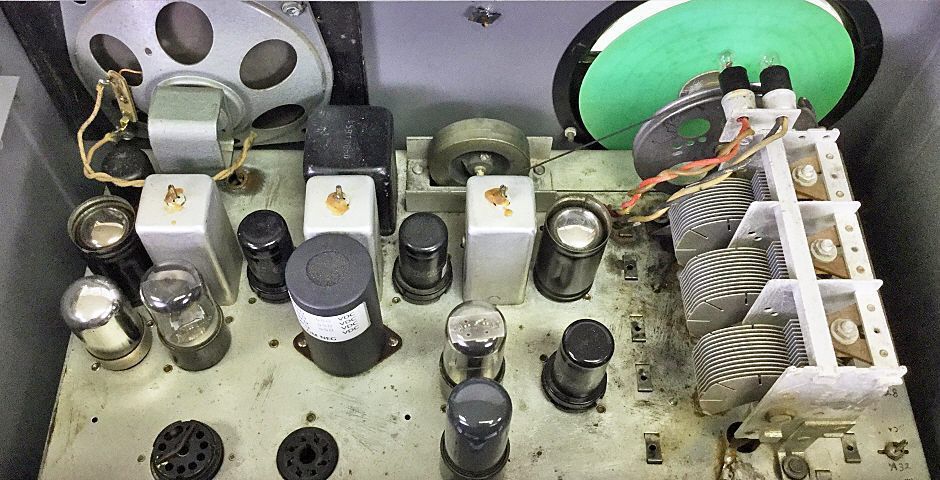

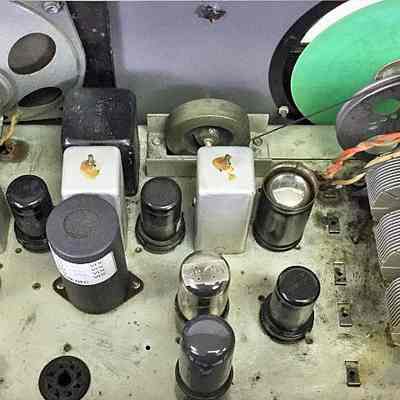

Tubes: (10 total): (4) 6SS7, (1) 7A8, (1) 7C6, (1) 7A6, (1) 6V6, (1) 35L6, (1) 35Z5
