A single conversion superheterodyne circuit.

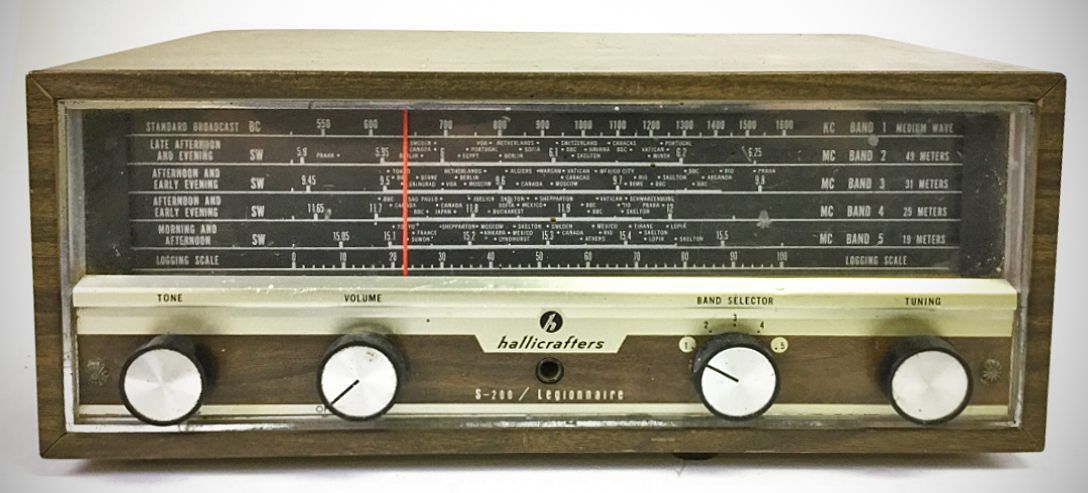

The S-200's limited coverage and AM-only reception make it useful strictly for international broadcast use. It features a built-in speaker, a tone control, and a buiilt-in ferrite bar antenna for BCB reception.

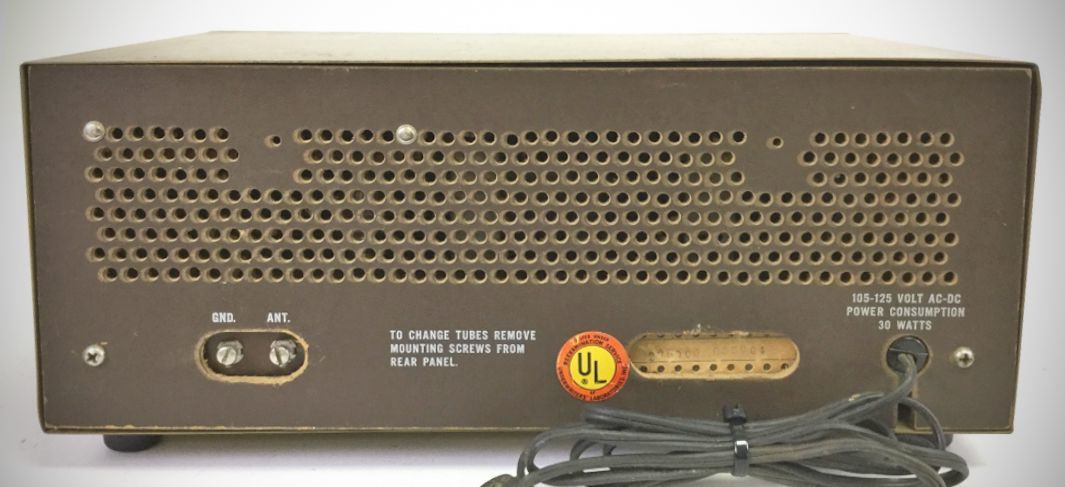

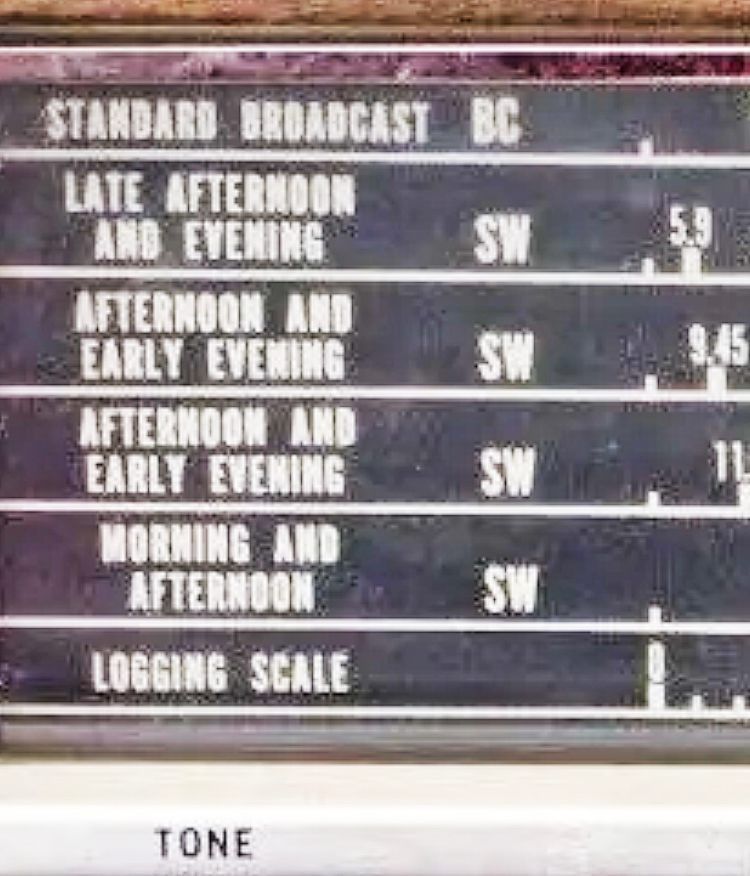

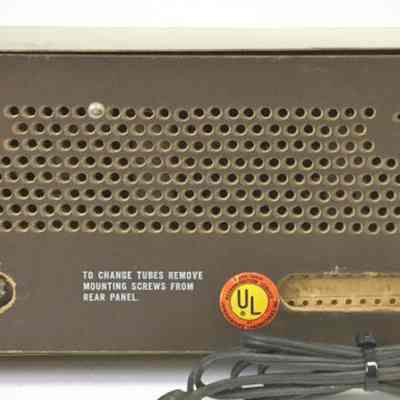

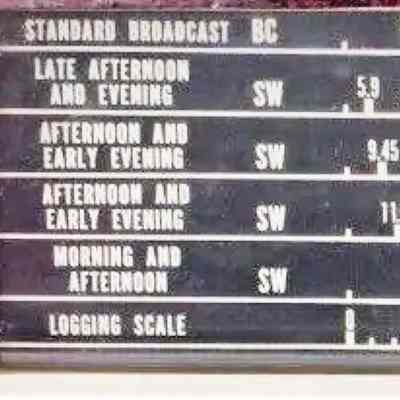

The right side of the panel has labels suggesting the best times for listening.
Caution: Transformerless circuit.
Coverage:
540 to 1600 kHz
5.9 to 6.2 MHz
9.45 to 9.8 MHz
11.65 to 12.05 MHz
15.05 to 15.55 MHz
IF: 455 kHz
Power: 120 volts AC-DC, 30 watts
Tubes (4 total): (1) 12BE6, (1) 12BA6, (1) 12AV6, (1) 50C5, (1) diode
