Note

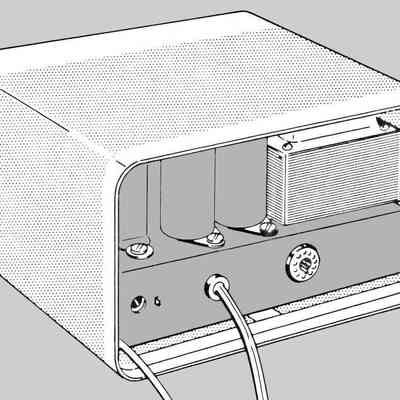

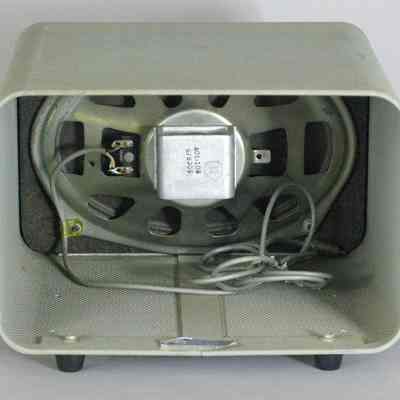

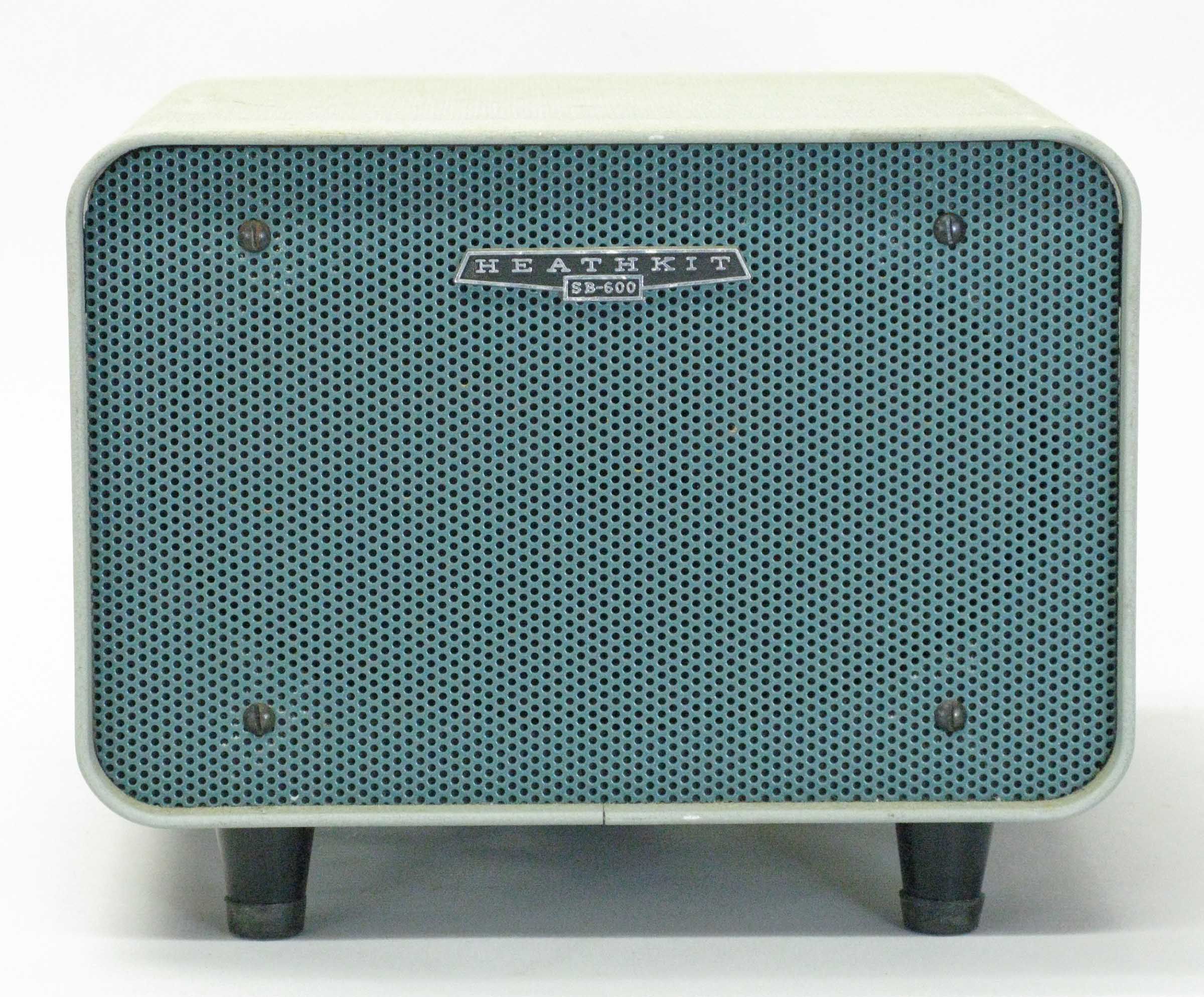

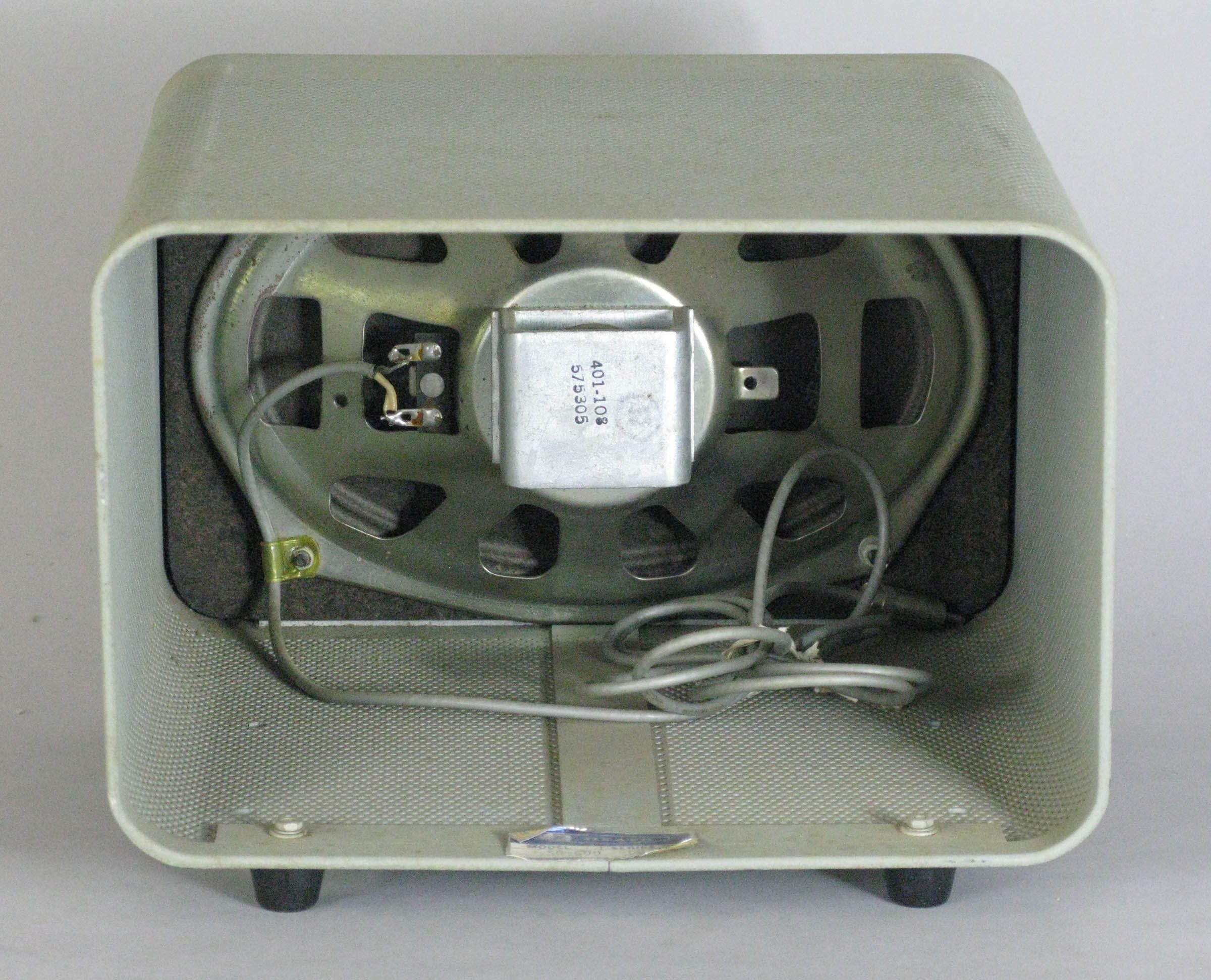

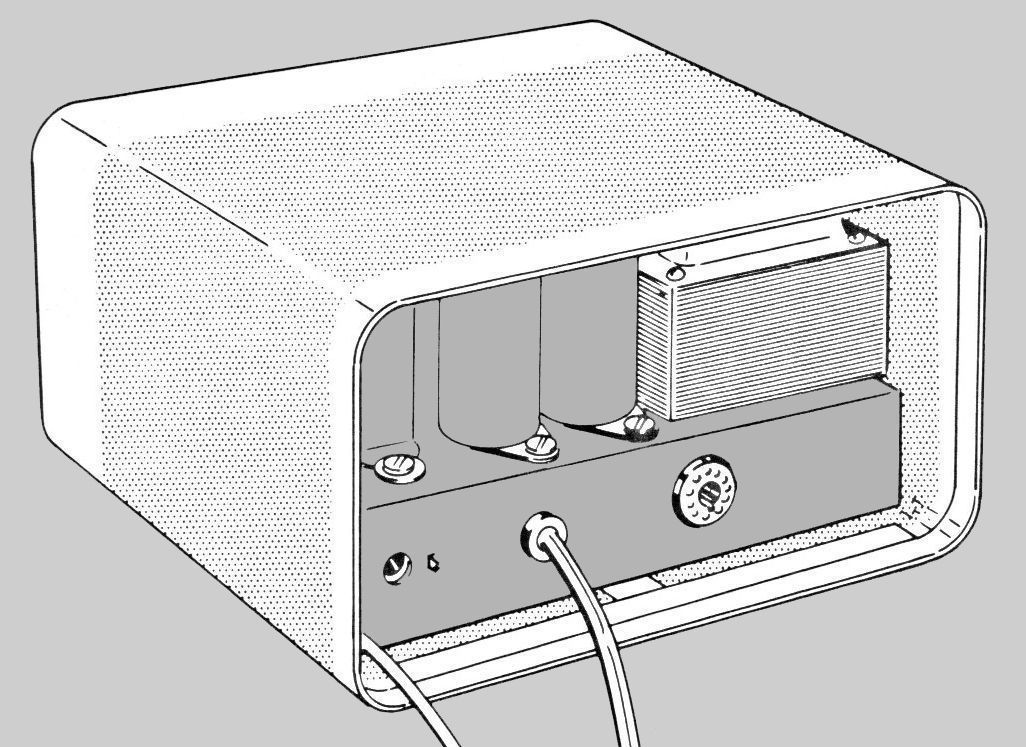

The SB-600 station speaker was introduced in 1966 as the first of a line of matching accessories for the SB (and HW) series rigs. The SB-600 contains only a six-by-nine-inch, 8Ω speaker. The rest of the cabinet is empty but is designed to hold the HP-23 series of power supplies for use with the SB/HW series of transceivers. There are holes in the bottom of the cabinet permitting the power supply to be secured with screws. The SB-600 is finished in Heath’s standard two-tone green wrinkle paint. Still highly sought after. See also HS-34.
Last advertised in the winter 1976 catalog as a companion for the SB-313.
References:
Review. QST. Sep 1966, p. 49.
Speaker size: 6 x 9
Impedance: 8Ω
Resonant frequency: 82 Hz (open air)
Frequency response: 300 to 3000 Hz
Magnet: 3.16 oz
Photos, general information and specifications from "Heathkit: A Guide to the Amateur Radio Products," by Chuck Penson, WA7ZZE. Used with permission.
