Note
Allied Radio catalog 1966 (copyright 1965), p. 360.
QST, May 1966, p. 1.
Allied Radio catalog 1967 (copyright 1966), p. 374.
Allied Radio catalog 1969 (copyright 1968), p. 201.

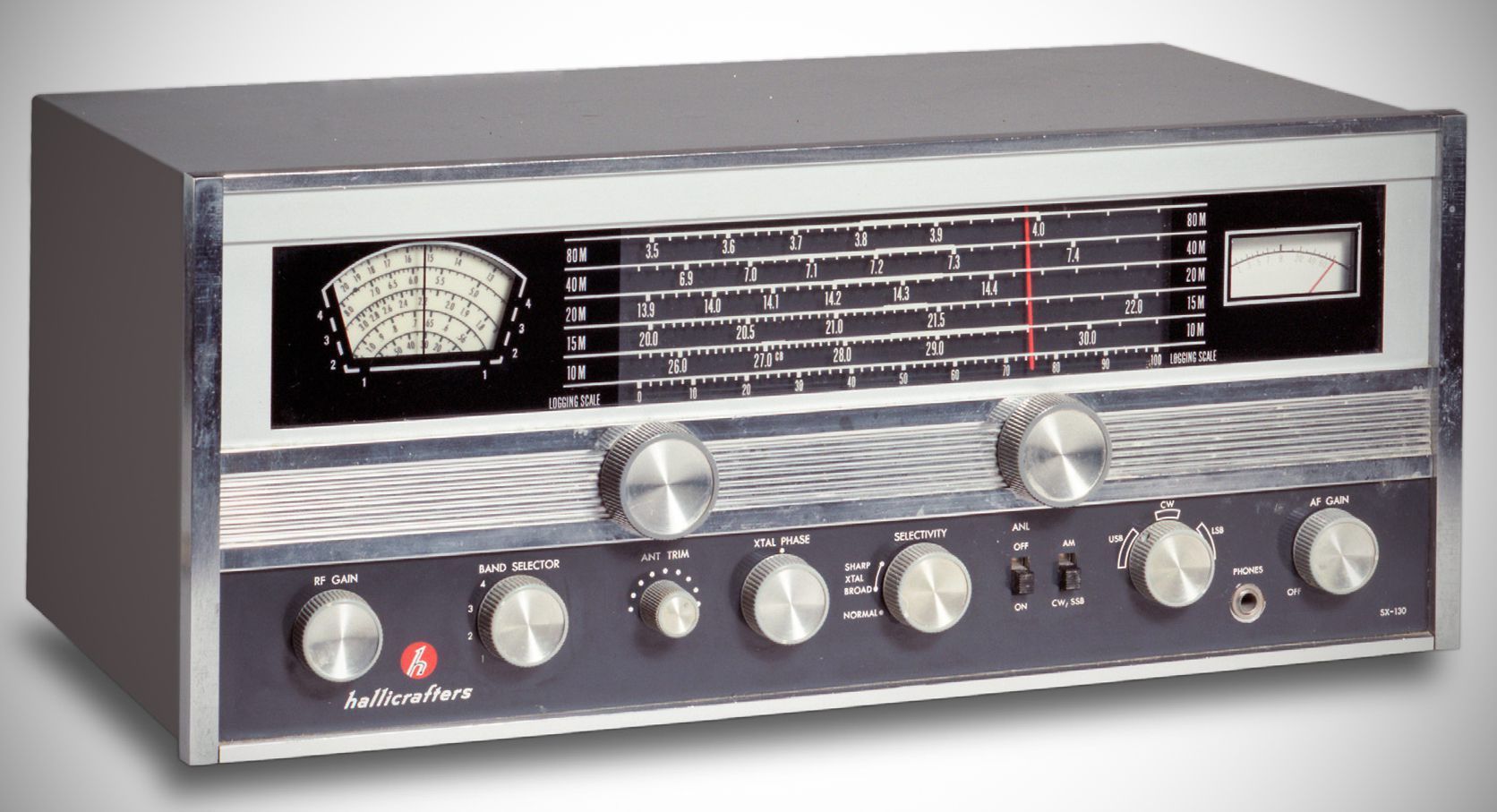

Features include a headphone jack, s-Meter, band spread, product detector, RF gain, ANL, BF0, antenna trimmer, mute terminals, and crystal phasing. Antenna input is screw terminals. Requires an external speaker. Note gap in coverage.
The SX-130 is the same as the S-129, but includes a crystal filter.
Coverage: 535 to 1610 kHz, 1725 kHz to 31.5 MHz
IF: 1650 kHz
Power: 120 VAC, 48 watts
Tubes (7 total): (1) 6DC6, (2) 6EA8, (1) 6BA6, (1) 6AL5, (1) 6BE6, (1) 6GW8
References
Brief description. Electronics World, Apr 1966, p. 96.
Brief description. Popular Electronics, Apr 1966, p. 24.
