Note
Allied Radio catalog 1955 (copyright 1954), p. 187.
QST, Jan 1955, p. 7.
Allied Radio catalog 1956 (copyright 1955), p. 192.
Walter Ashe catalog 1957 (probably issued in 1956), p. 1.
Allied Radio catalog 1957 (copyright 1956), p. 240.
Allied Radio catalog 1959 (copyright 1958), p. 370.

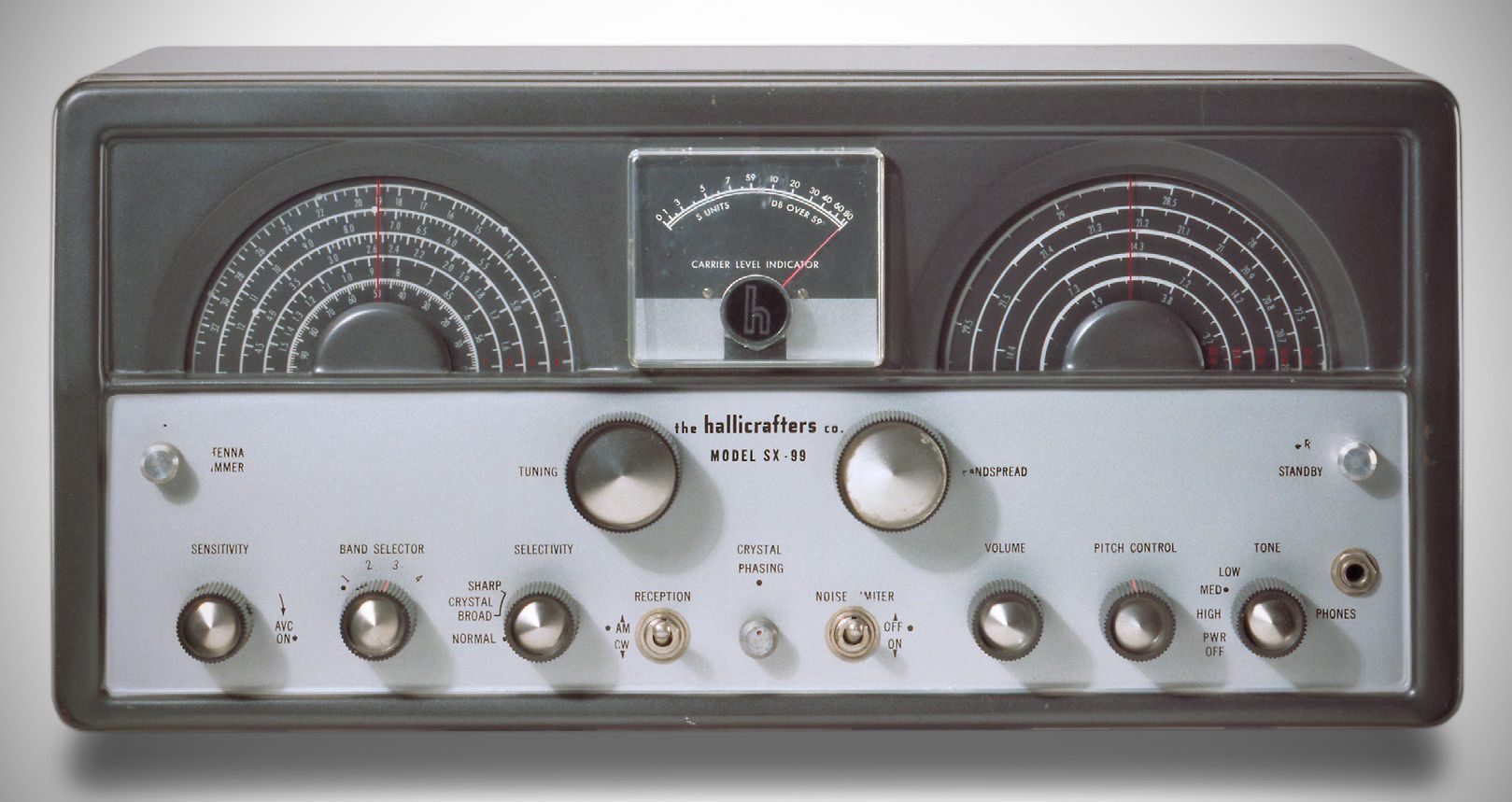

Single conversion superheterodyne circuit features bandspread calibrated for 80 40 20, 15, 11, and 10 meters, variable selectivity (broad and sharp), antenna trimmer, crystal filter, and S-meter.
Coverage: 540 kHz to 44 MHz
IF: 455 KHz
Modes: AM, CW
BFO with pitch control
ANL
AVC
Tone control: three position
Speaker: 3.2 and 500 Ω terminals
Crystal filter
Power: 120 VAC

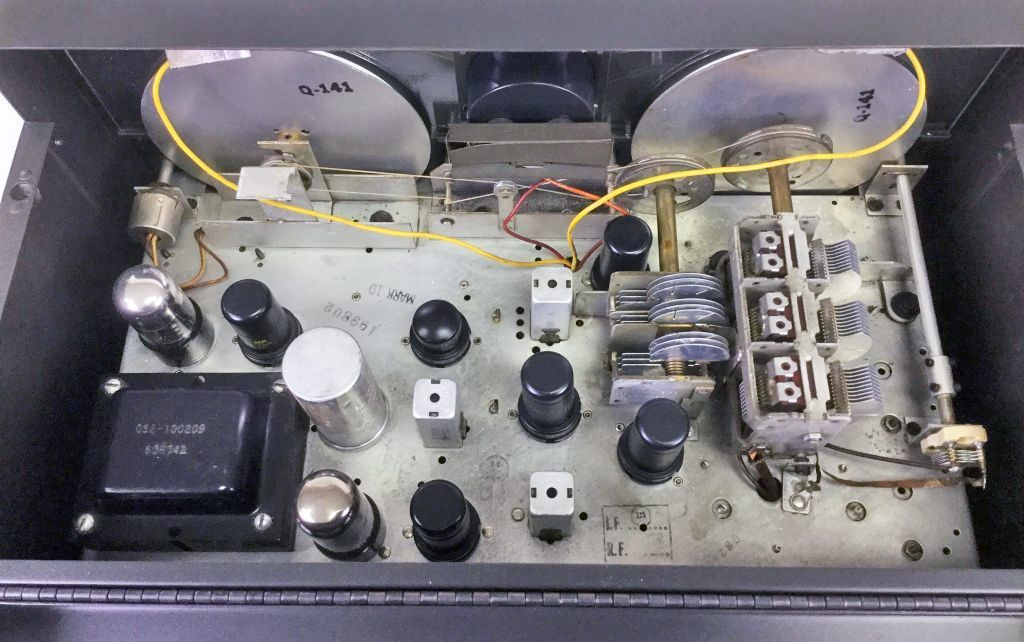

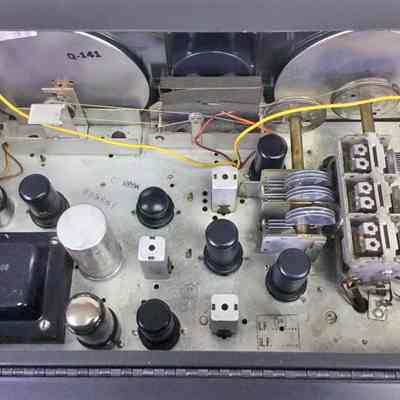

Tubes: (1) 6SG7, (1) 6SA7, (2) 6SK7, (1) 6SC7, (1) 6K6, (1) 6H6, (1) 5Y3
