Note
QST, Apr 1956, p. 7.
Allied Radio catalog 1957 (copyright 1956), p. 240.
Walter Ashe catalog 1957, inside front cover.

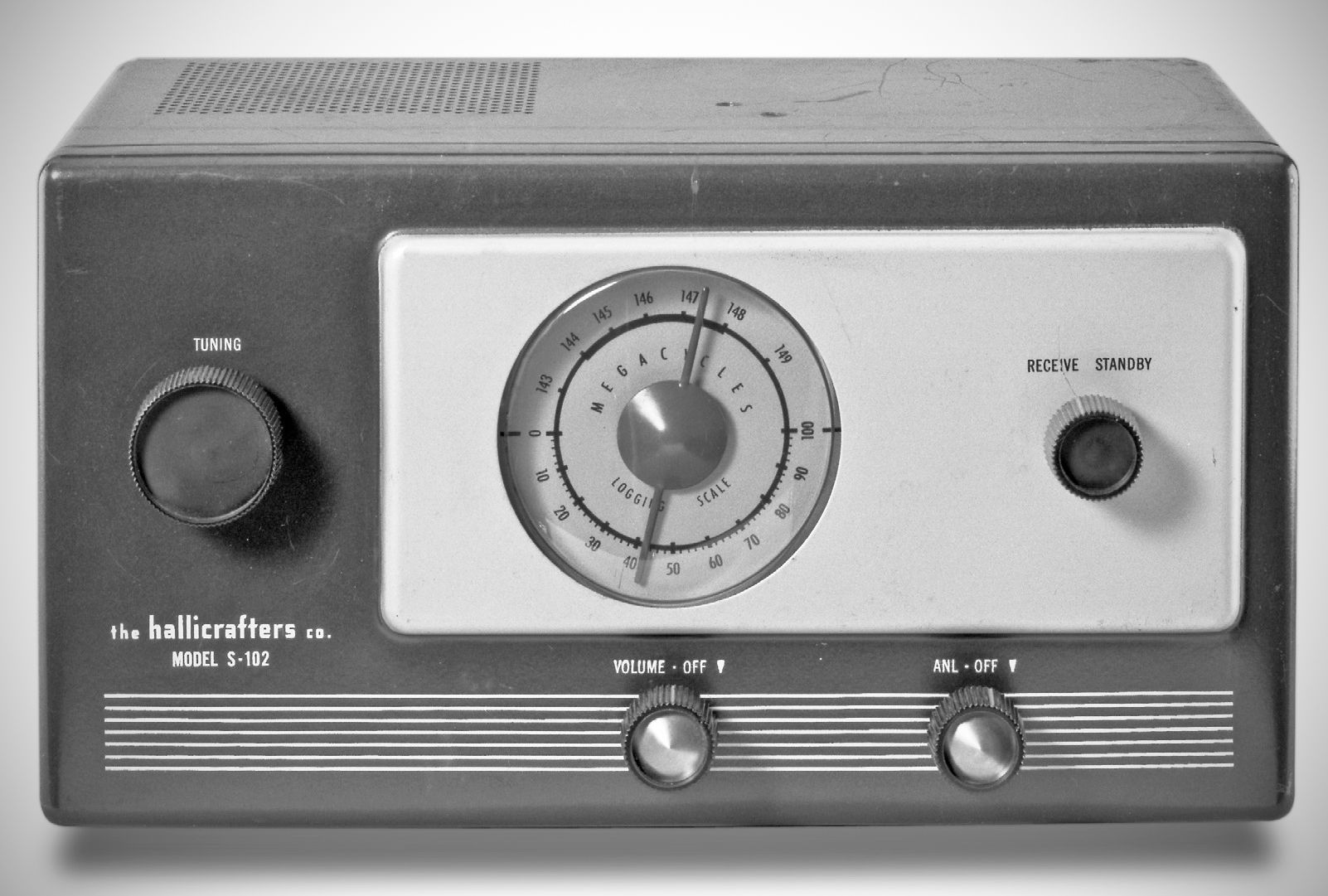

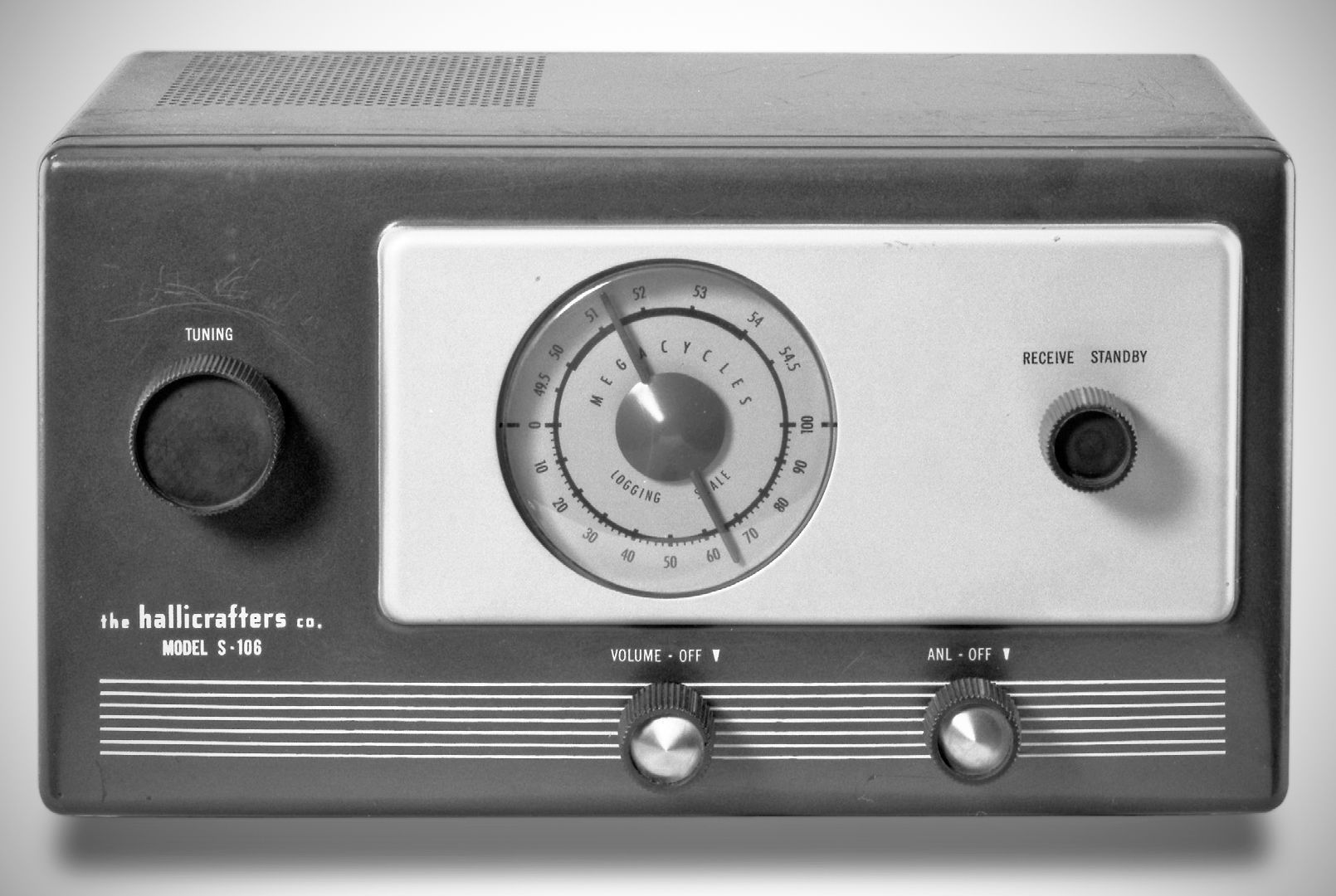

These are single band receivers for two meters (S-102) and six meters (S-106). They provide AM reception only. Similar in design and appearance to the "Civic Patrol" receivers S-81, 82, 94, and 95. The important difference is that the Civic Patrol receivers are FM.
Controls include ON-OFF-VOLUME, TUNING, ANL ON-OFF, and RECEIVE-STANDBY. There is no squelch control.
Rear panel connections include antenna input, standby terminals, and a headphone jack.
Built-in speaker.
Caution: Transformerless circuit.
Coverage (S-102): 143 to 149 MHz
Coverage (S-106): 49 to 55 MHz
IF: 10.7 MHz
Power: 120 volt AC-DC
Tubes: (1) 50L6, (1) 6BH6, (1) 12AT7, (2) 6BA6, (1) 12AL5, (1) 6AB4, (1) selenium rectifier
