Note
Kit or wired.
QST, Jul 1966, p. 112.
QST, Aug 1967, p. 107.
QST, Jan 1968, p. 160.
Allied Radio catalog 1969 (copyright 1968), p. 212.
Allied Radio catalog 1970 (copyright 1969), p. 181.
Eico catalog 1972, p. 7.
Eico catalog 1972, p. 6.
Eico catalog 1973, p. 6.
Eico catalog 1974, p. 6.

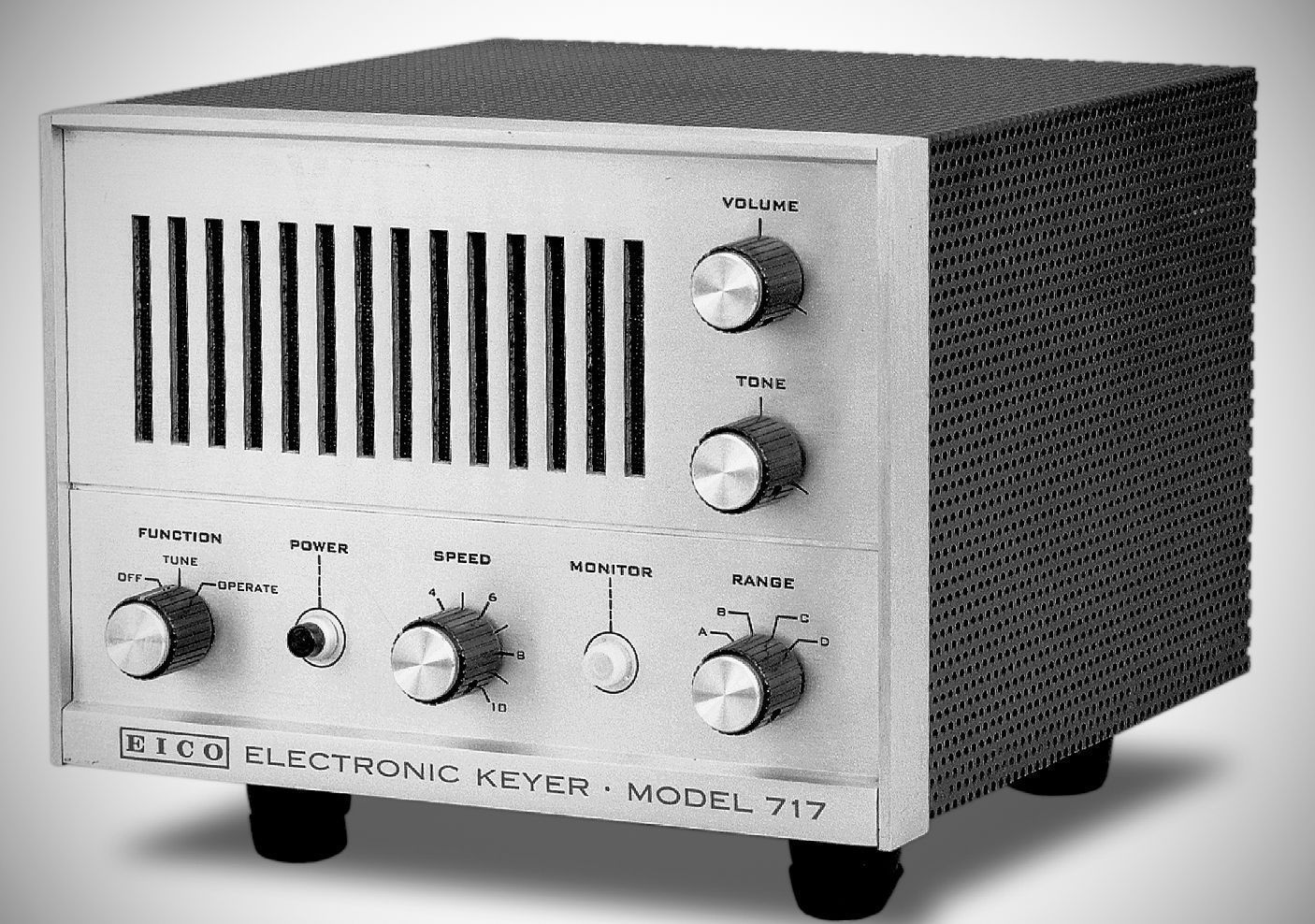

The Eico model 717 electronic keyer had self-completing dots and dashes, and speeds of 3–65 wpm in four ranges. Its keying output was an 25 volt-amp SPST dry reed relay. The 717 used six tubes and two silicon rectifiers. The power supply and speaker were built-in.
By 1973 the 717 was only of only two amateur products remaining in the Eico catalog. The other was the 706 code practice oscillator. The 717 was discontinued sometime between 1974 and 1978. Most probably earlier than later.
Dot/Space ratio: 1:1 timed within 2 ms at any speed
Dash/Dot ratio: 3:1 time within 2 ms at any speed
Adjustable tone and volume
3" x 5 " speaker
Front panel power and monitor lamps
Power supply: silicon diodes
Power: 100–130 VAC, 50/60 Hz, 40 watts

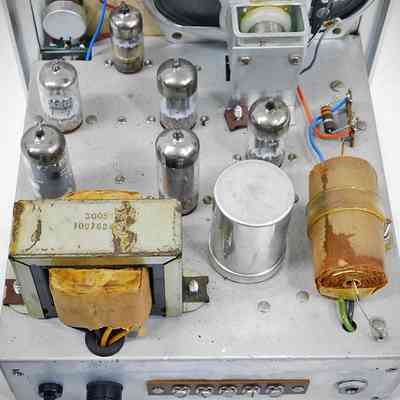

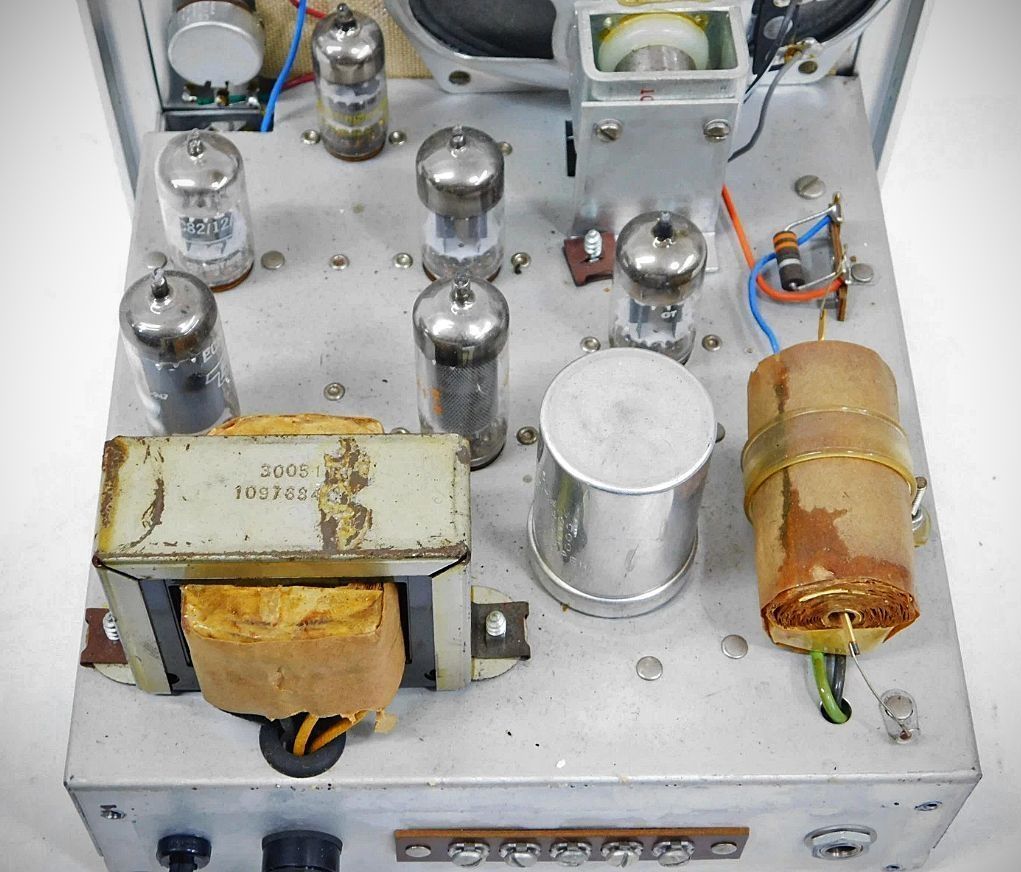

Tubes: (2) ECH81/6AJ8, (3) 12AU7, (1) 6CB6
