Note
QST, Dec 1939, p. 87.
QST, Feb 1941, p. 97. (436A)
Lafayette catalog number 82, p. 116.
Lafayette catalog number 87 (New York), p. 58.
"Progressive" series.
This model incorporates all of the features of the model 435(A) plus a number of refinements. It has 8 tubes instead of 7. The additional tube (6H6) is used in the noise limiter. Also includes" Inertia Knobs" that "makes tuning easier and faster."

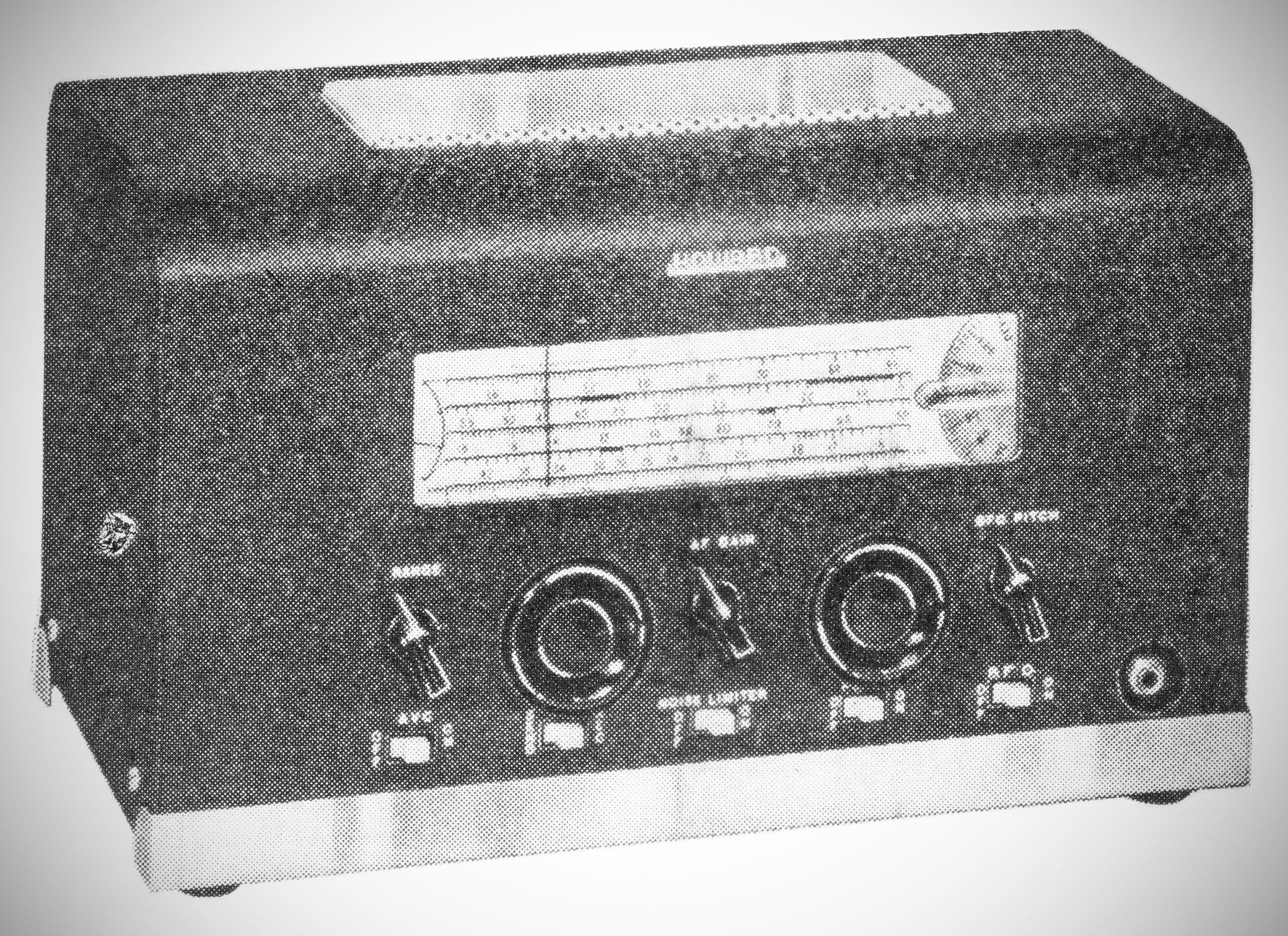

The pointer at far left of the scale is the band indicator. The half circle on the right is the band spread.
Differences in "A" version unknown.
Power: 120 VAC, 50/60 Hz; (socket on back for "B" battery and/or 6 volt supply)
Coverage: 540 kHz to 43 MHz
Tubes: (1) 6H6, (1) 6SA7, (1) 6SK7, (1) 6SQ7, (1) 6K6, (1), 6J5, (1) 5Y3G
