Note
Lafayette catalog number 73, p. 129.

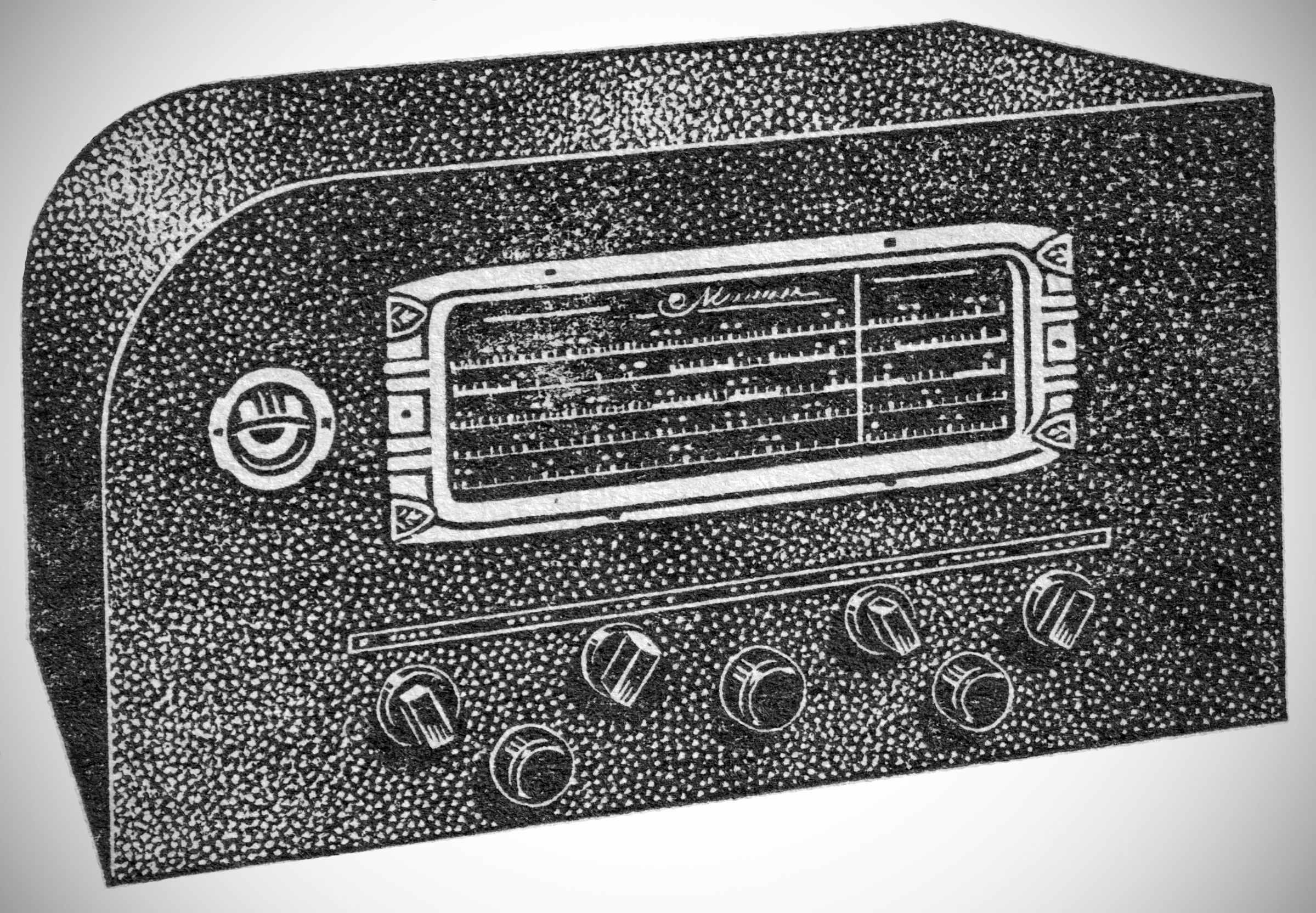

Referred to as a 12 tube "Custom Super" or "High Fidelity Super."
Coverage: 132 kHz to 42 MHz

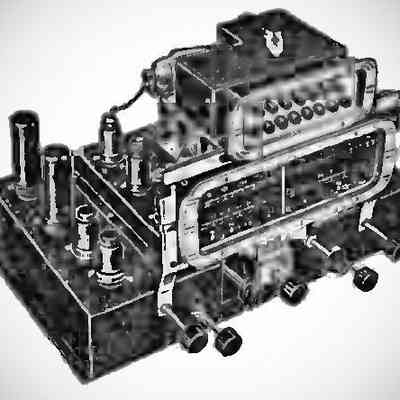

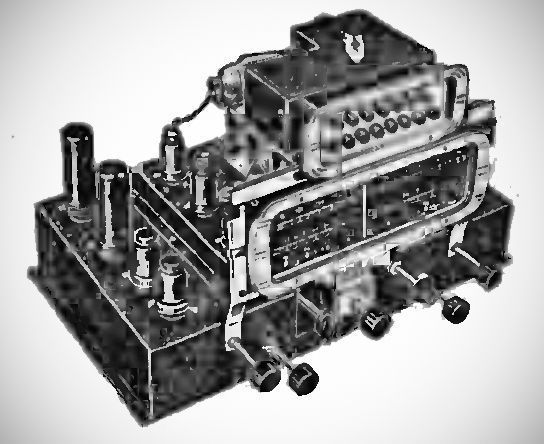

Factory aligned and wired tuning unit. Nine inch linear scales with vernier tuning. Three-gang tuning capacitor. Air tuned coils. Iron core IF transformer with electrically variable band spread. Diode second detector. Separate bass and treble controls. Inverse feedback. 15 watts audio output.
Optional tuning eye.
Optional push-button tuning (seven stations).
Both push-button and and tuning eye are not available together.
Tubes: (2) 1853, (1) 6SA7, (2) 6K7, (1) 6H6, (2) 6C5, (2) 6L6, (1) 5X4, (1) 6G5 tuning eye optional OR (1) 6A7 push-button converter
