Note

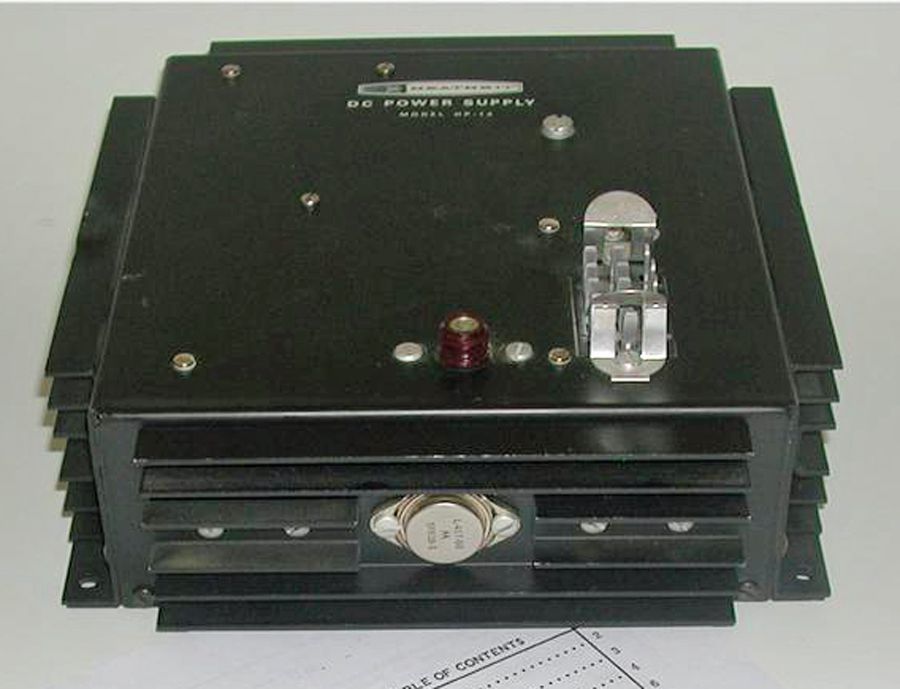

Designed specifically for use with for use with the HA-14 “KW Kompact” linear amplifier, which had no internal power supply. Similar in appearance to the HP-13 mobile power supply. The most obvious difference between the HP-13 and HP-14 is that the HP-14’s power connector is on the top of the unit as opposed to on the side.

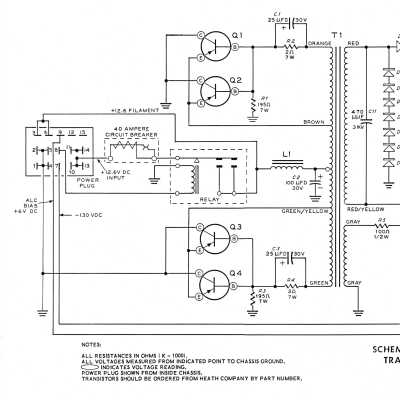

The HP-14 is a fully solid-state switching power supply based on a proprietary potted toroidal type transformer.
Caution: Lethal voltages present when operating.
References:
General repair tips. Ham Radio. Jun 1970, p. 56.
Input voltage: 12-14.5 VDC (do not exceed 14.5 VCD)
Input current: 25 amps average, 50 amps peak
Switching frequency: 1500 Hz
Ambient operating temperature range: -10 F to 122 F
High voltage output: 2300 VDC no load, 2000 VDC at 500 ma
Bias voltage: -130 VDC no load, -110 VDC at 60 ma
Duty cycle: SSB 50%
Switching frequency: about 1500 Hz
Solid State: (15) 1N2071, (4) SP838 (rated 45 volts, 25 amps, 100 watts)
Photos, general information and specifications from "Heathkit: A Guide to the Amateur Radio Products," by Chuck Penson, WA7ZZE. Used with permission.
