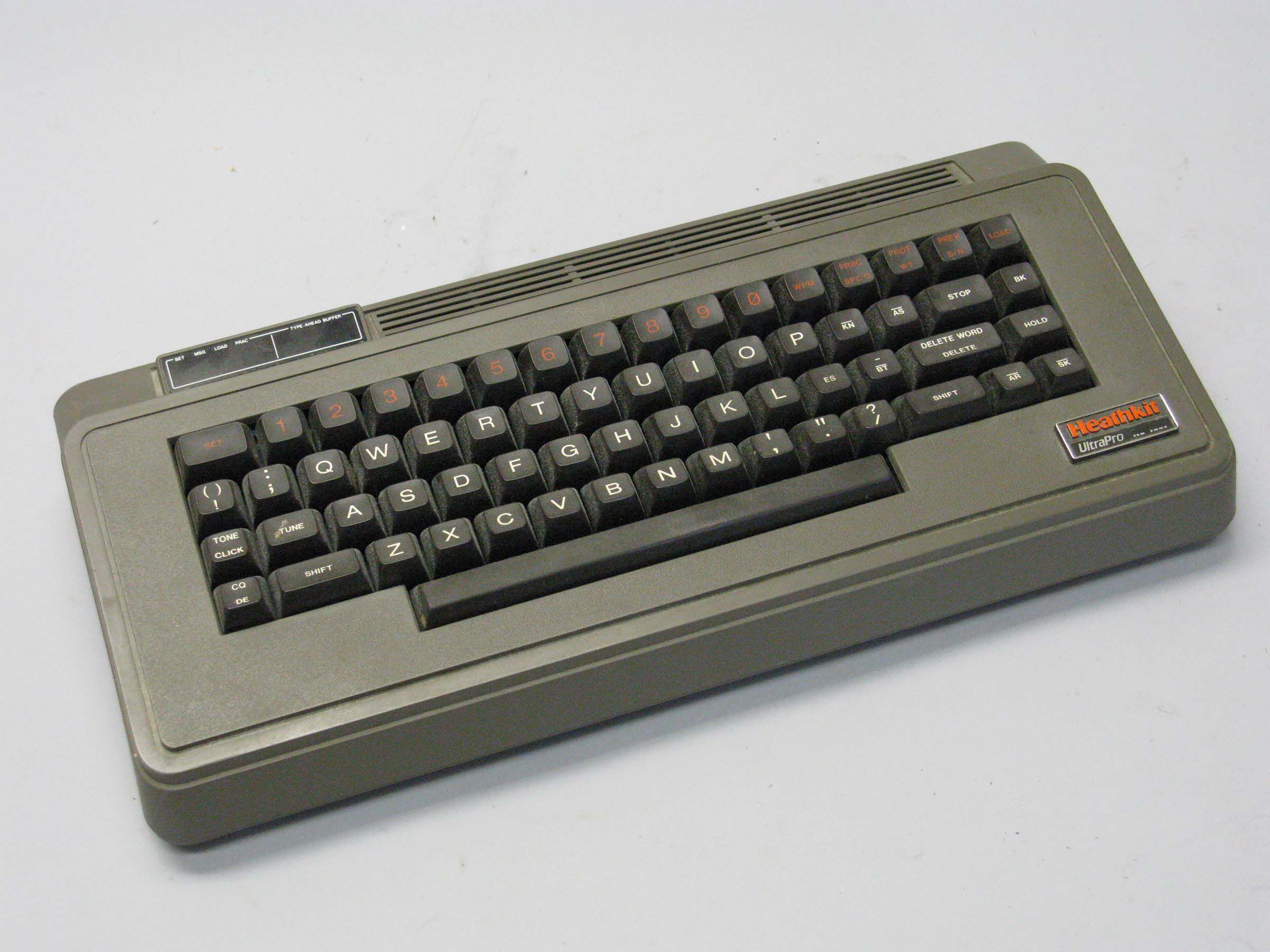

The UltraPro is a microprocessor based CW keyboard that was very popular and is still highly sought after. It is built largely on two PC boards and is loaded with features.

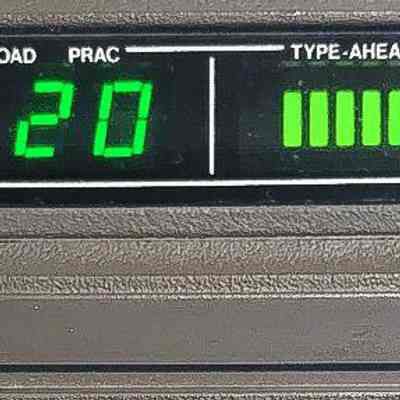

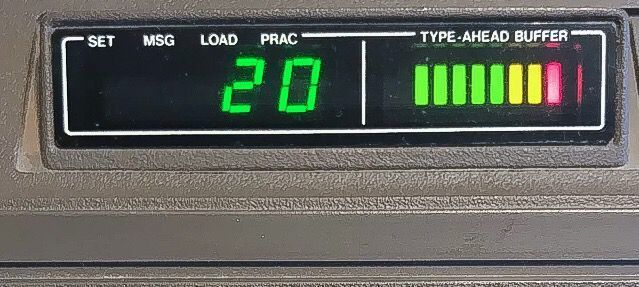

It has a professional quality, pre-assembled, full-stroke keyboard with key legends that won’t wear off. There are 10 variable length text storage buffers which can be linked together for added flexibility, a 64 character type-ahead buffer with a 3-color LED monitor, and a 4-digit LED display to indicate operating parameters, all of which are selectable from the keyboard.
Three different 4-level code practice modes will send random length or 5-charactor groups with 3,000 characters sent before the sequence repeats.
The UltraPro also has a built-in sidetone oscillator and speaker, and there is a self-diagnostic function: if a chip fails, the chip number will light up on the display. This function also is used during initial testing.
The HD-8999 uses CMOS memory with battery backup to save the buffered text. Total text buffer capacity is 495 characters. The 8999 also features auto serial numbering from 1 to 9999. About the only complaint heard is that the prosign AA is missing. A real gem.
References:
Review. QST. Apr 1984, p. 46.
CPU: custom 3870
Speed range: 1-99 WPM in 1 WPM steps
Spacing: less than or equal to speed
Weighting: normal, plus five “light” and five “heavy” settings
Serial number: 1 to 9999
Text buffers: 1 to 10; variable length, with a total capacity of 495 characters
Type ahead buffer: 64 characters
Memory backup: 3 miniature lithium cells; lifetime of 1 year, typical
Sidetone: 300 to 1500 Hz, adjustable
Character set: A—Z, 0—9, CQ, DE, ES, BK, AR, AS, BT, KN, SK; punctuation: . , ? / – ; : " ‘ !
Keyer output: +25 volts @ 100 ma, and –200 volts @ 40 ma.
Operating temperature: 32 F to 104 F
Power requirements: 7.5 to 11 VAC or 11 to 16 VDC @ 450 ma maximum.
Photos, general information and specifications from "Heathkit: A Guide to the Amateur Radio Products," by Chuck Penson, WA7ZZE. Used with permission.
