Note
QST, May 1957, p. 120.

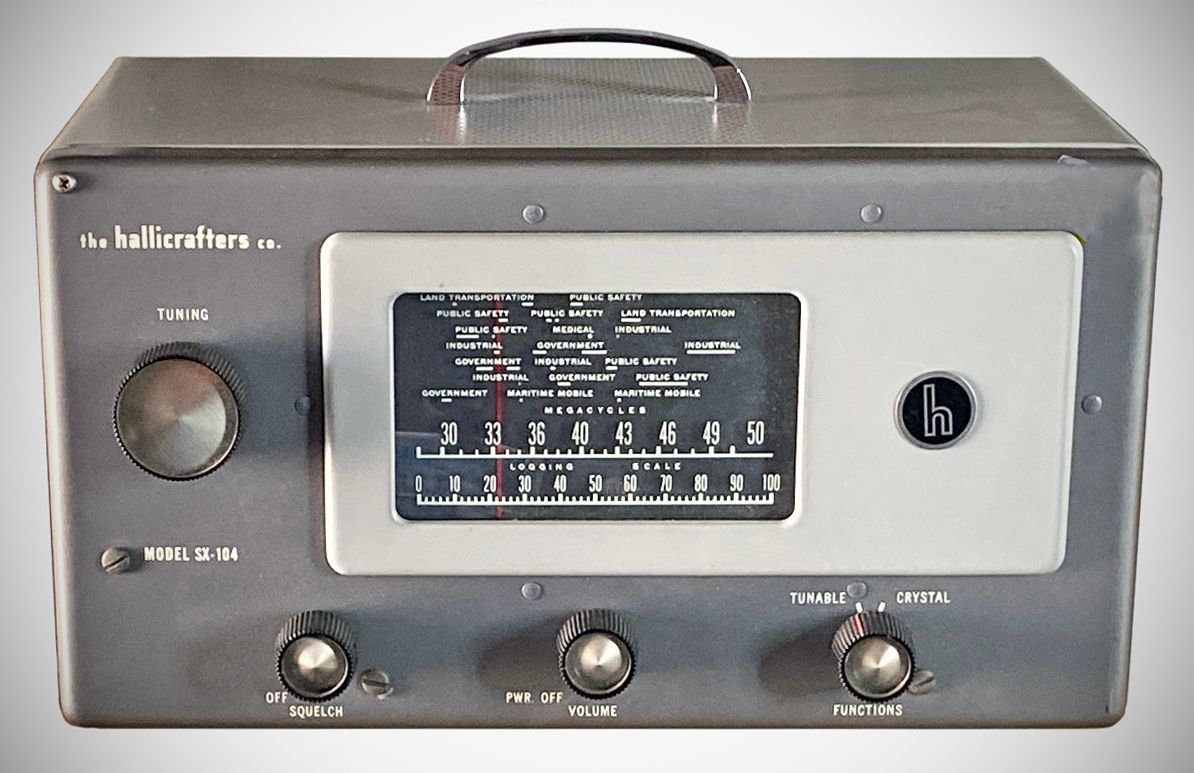

These are updated version of the "Civic Patrol" series, which includes S-82, 82, 94, and 95, but these are not branded as such. Oddly, they are designed for AM reception instead of FM, like the previous versions. Slide rule dials replace the rotary dials of the past. Includes a provision for one crystal controlled frequency.
Built-in speaker.
Caution: Transformerless circuit.
Coverage (S-104): 30 to 50 MHz
Coverage (S-105): 152 to 173 MHz
IF: 10.7 MHz
Power: 120 volts AC-DC
Tubes (S-104): (1) 12BD6, (1) 6U8, (2) 12BA6, (1) 12AL5, (1) 12AU7, (1) 6BH6, (1) 50L6, (1) selenium rectifier
Tubes (S-105): (1) 6AB4, (1) 12AT7, (2) 12BA6, (1) 12AL5, (1) 12AU7, (1) 6BH6, (1) 50L6, (1) selenium rectifier
