Note
QST, Jul 1939, p. 1.
Lafayette catalog number 78, p. 149.
Lafayette catalog number 82, p. 115.
Lafayette catalog number 87 (New York), p. 57.

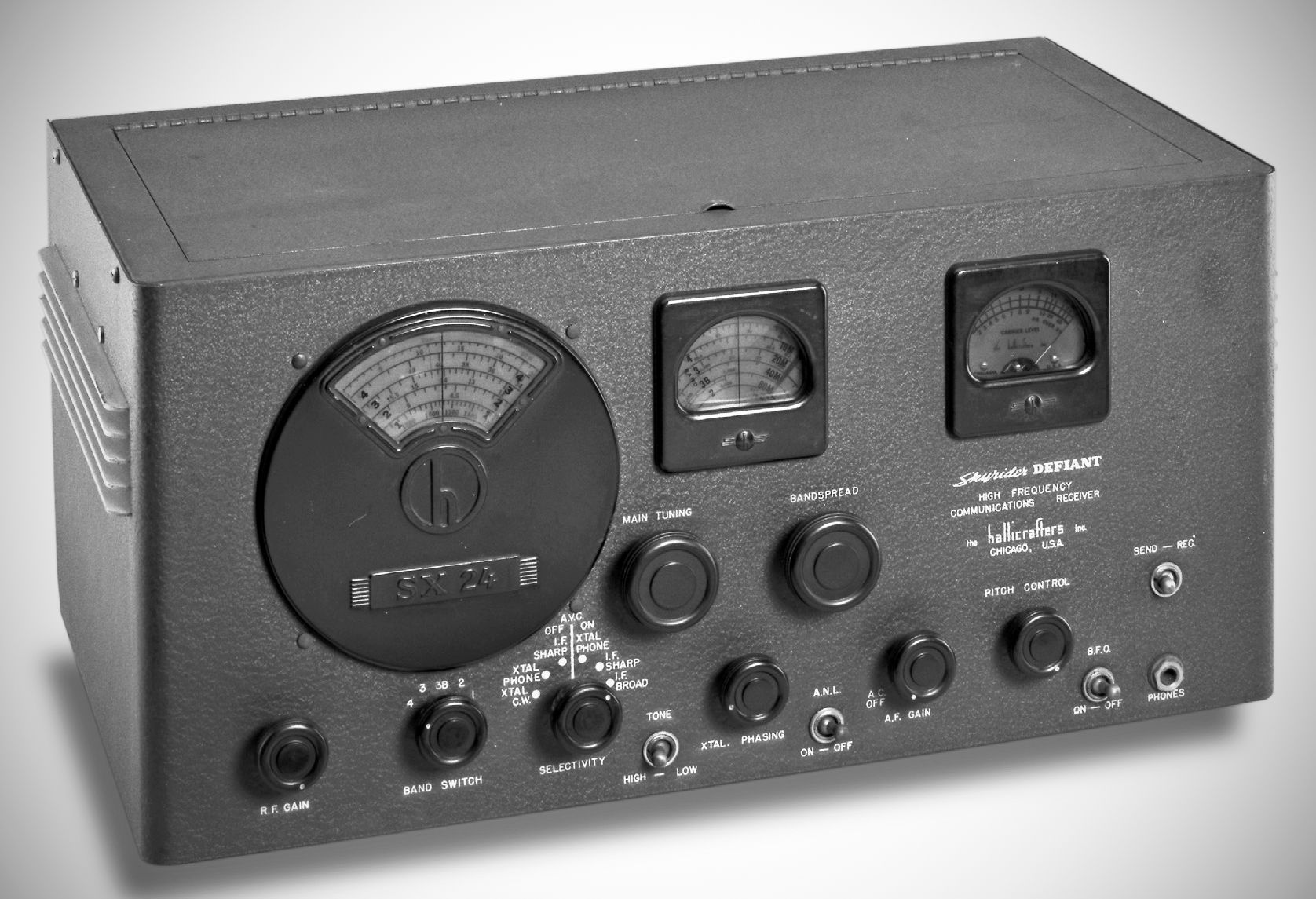

Single conversion superheterodyne circuit, with BFO, ANL, AVC, a headphone jack, S-meter, tone switch, RF gain, mute, standby, and a calibrated bandspread for 80, 40, 20, and 10 meters.
Requires external speaker, 500/5000 Ω.
Coverage: 540 kHz to 43.5 MHz
IF: 455 kHz
Modes: AM, CW
S-meter
BFO
ANL
Crsytal filter
Variable selectivity
Audio output: 5 watts, 500/5000 Ω

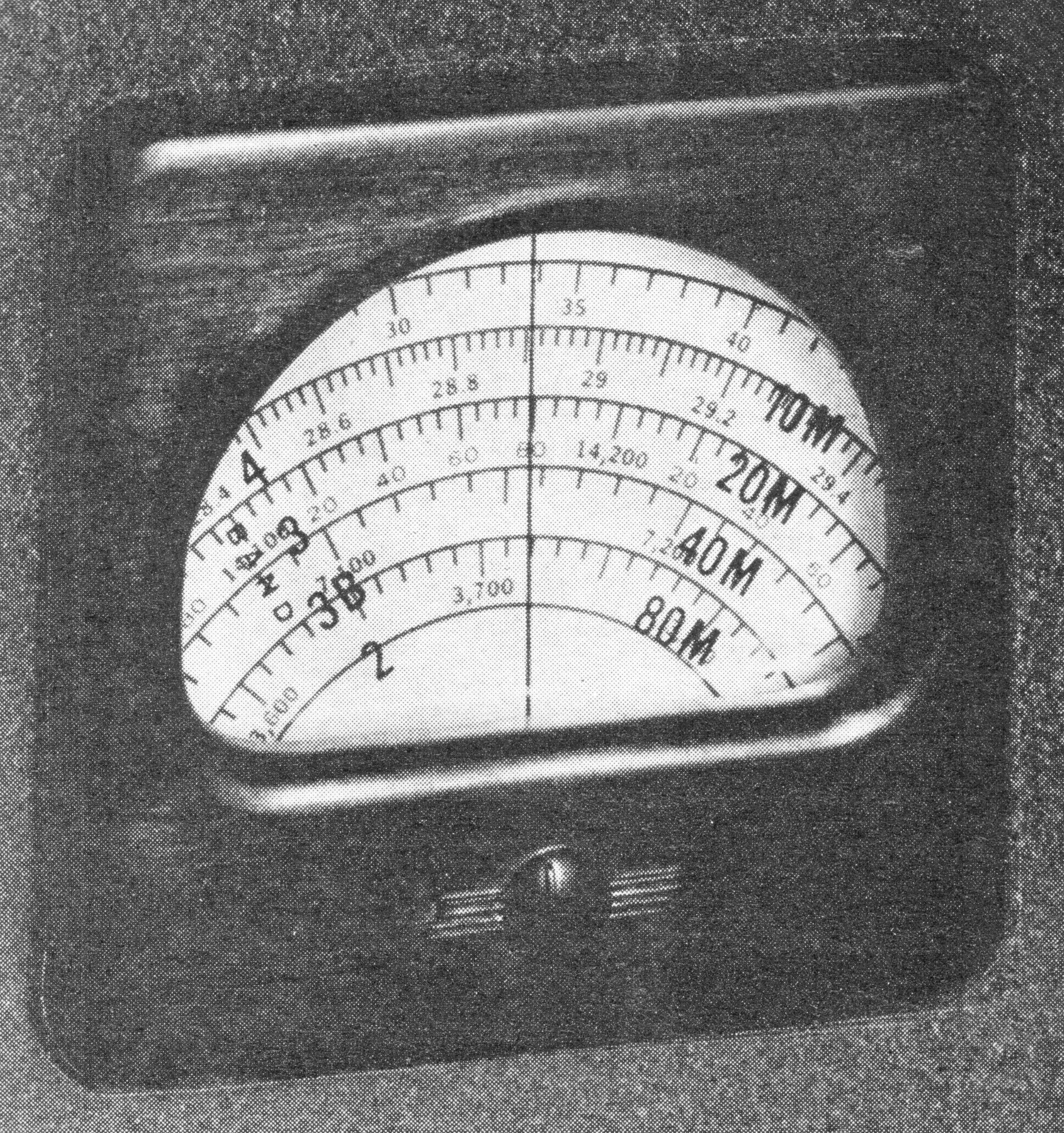

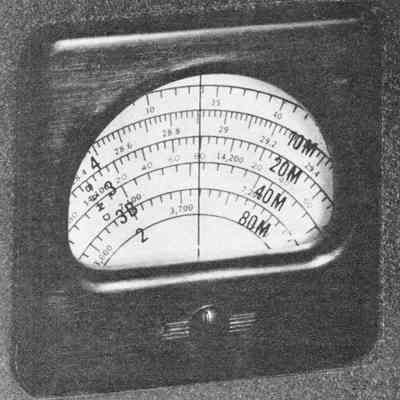

Calibrated bandspreads for 10, 20, 40, and 80 meters
Power: 120 VAC, 70 watts
Tubes (9 total): (1) 80, (1) 6F6, (1) 76, (1) 6H6, (1) 6SQ7, (3) 6SK7, (1) 6K8
