Note
Popular Electronics, May 1956, p. 122.
Popular Electronics, Nov 1956, p. 122. (revised version)
Radio News, Mar 1958, p. 158.
Popular Electronics, Sep 1959, p. 128.
KC0CW described the BN-1 this way:

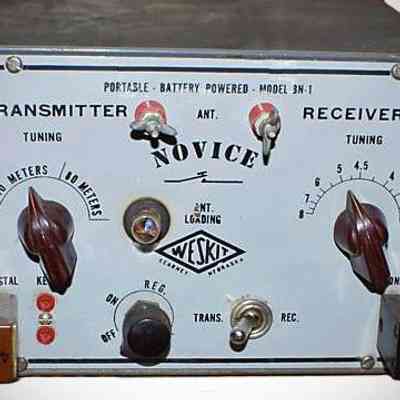

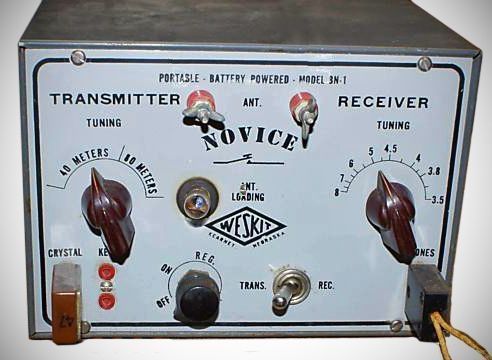

"The Weskit transmitter-receiver was made by Western Radio (a.k.a. Western Electronics) of Kearney, Nebraska, around the 1956/1957 [starting in 1956 -- ed] time period. It is an extremely simple rig, using only a single 7 pin miniature type 3A5 tube. This dual triode tube, which typically serves as a push-pull audio output tube in battery powered portable receivers, performs the transmit function with one triode, and the receive functions with the other. The front panel as shown above, is made of thin sheet metal, with a rather attractive gray paint job with red screen printed markings. The sides, top, and bottom of the box are made of a plastic impregnated cardboard, while the back of the unit remains open.
The transmitter is a modified Pierce crystal controlled oscillator on the 80 or 40 meter amateur bands. The L-C tuned plate tank circuit is link coupled to the antenna, and a type 1843 incandescent lamp in the antenna circuit is used as a tuning indicator. After tuning, the lamp is to be replaced with a type 41 lamp to reduce resistive losses. Power input can be as much as 5 watts with 180 volt supply, however the instructions suggest plate supply voltages as low as 45 volts, with “nominal” operation at 90 volts, with about 1 to 1.5 watts input. Snap on clips are provided for connection to dry cell batteries for high voltage, and a single D-cell battery holder is provided for the filament supply. Switching from transmit to receive applies filament power to only the half of the tube which is in operation.
The receiver is a regenerative type. Regeneration is controlled by a potentiometer across the feedback winding of the tuning coil. Frequency coverage is claimed to be 3400 kc to 8000 kc in the manual, however dial calibration does not go below 3500 kc. Audio output is intended to be fed to high impedance headphones. An optional stage of audio amplification using a type 3V4 tube can be added for operation of a small speaker. A pre-punched hole in the chassis can be utilized for the purpose of mounting the additional tube."
Kit: $14.95
Wired: $19.95
