Note
Eico short form catalog 1967, p. 42.
CQ, Mar 1967, p. 52.
Eico catalog 1968, p. 10.
Eico catalog 1972, p. 6. (wired only)

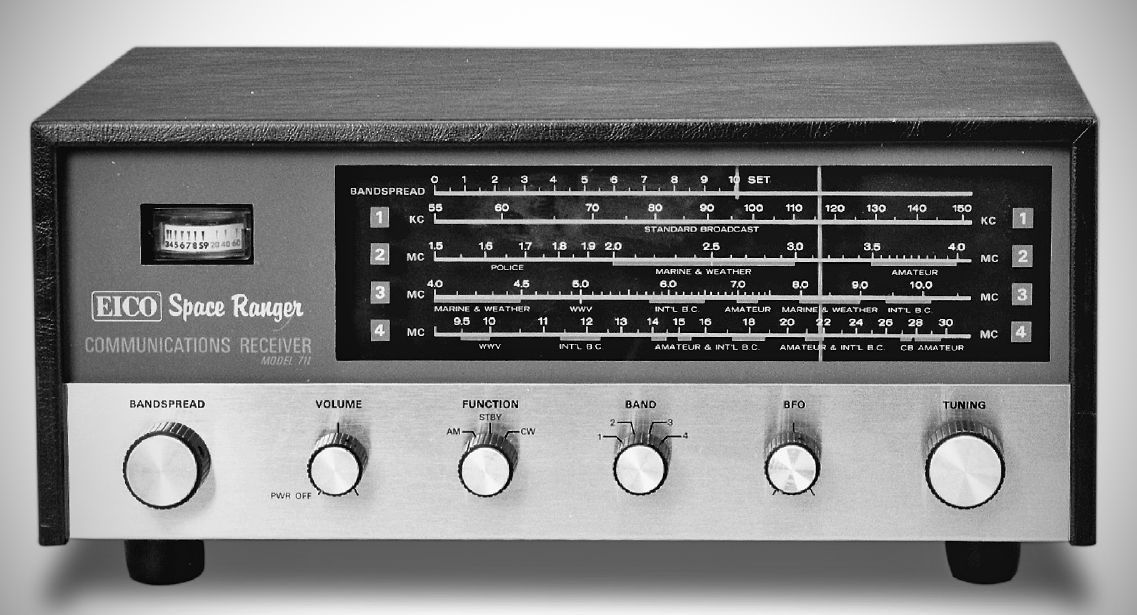

A simple general coverage single-conversion superheteroyne type with one stage of IF and no RF amplifier. The receiver's performance is on par with Heath's GR-64 or Knight's Star Roamer, among many others, for example. Introduced in 1967, the 711 covers from 550 kHz to 30 MHz in four bands. Receives AM, CW, and SSB, with a variable pitch BFO control.
The 711 uses a 12BE6 as converter, 12BA6 as IF amplifier, 12AV6 as audio preamp, detector, and noise limiter, and 12AQ5 as audio output.
Basic features include a solid-state transformer operated power supply, built-in ferrite rod antenna for BCB reception, S-meter, switchable ANL, standby switch, headphone jack, and a Q-multiplier input. The receiver also features a bandspread control, but does not have a separate bandspread scale.
By 1972 the 711 was available only as fully assembled.
Frequency coverage: 550 kHz to 30 MHz
IF: 455 kHz
Power: 117 VAC, 50/60 Hz, 30 watts
Tubes: (1) 12BE6, (1) 12BA6, (1) 12AV6, (1) 12AQ5
References
Eico catalog 1968, p. 10.
Brief Description. Electronics World, Apr 1967, p. 96.
Brief description. Popular Electronics, Apr 1967, p. 26.
Review. Popular Electronics, Aug 1967, p. 79.
