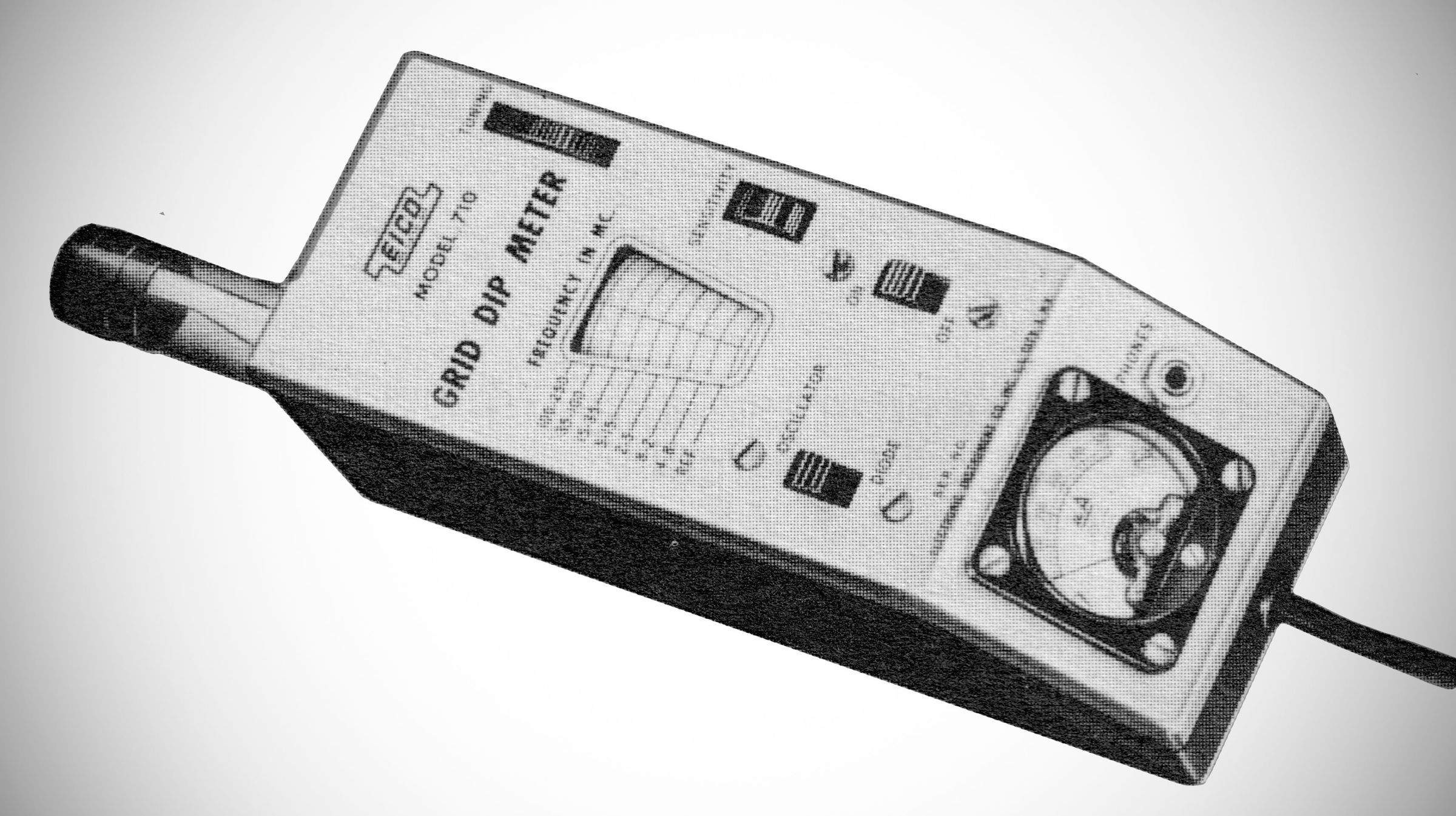

The EICO Model 710 Grid Dip Meter is a tube‑type grid‑dip oscillator. Covering a frequency range from approximately 400 kHz to 250 MHz via eight plug‑in coils, it uses a Colpitts oscillator circuit based on a 6 AF4A tube.
With the selected coil loosely coupled to a tuned circuit, the meter in the grid circuit will show a “dip” at resonance, allowing the user to determine the circuit’s resonant frequency, Q, or infer component values.
Additional functions include serving as a wavemeter, signal‑generator, and zero‑beat detector via a switchable diode and headphone function.
Discontinued late in 1972 or early 1973.
Frequency Range: 400 kHz to 250 MHz in 8 overlapping ranges
Meter Movement: 500 µA
Coils: Pre-wound and calibrated to 0.05%
Tuning : planetary drive with 1:7 drive ratio
Dial: 340º rotation, illuminated, scales are 3 3/4" long.
Power supply" selenium recifiier
Power: 117 VAC, 50/60 Hz
Tube: (1) 6AF4 or 6T4
