Note
QST, Feb 1961, p. 160.
Allied Radio catalog 1962 (copyright 1961), p. 284.
QST, Feb 1962, p. 160.
QST, Feb 1963, p. 160.
Note that this is branded as Allied, not Knight.

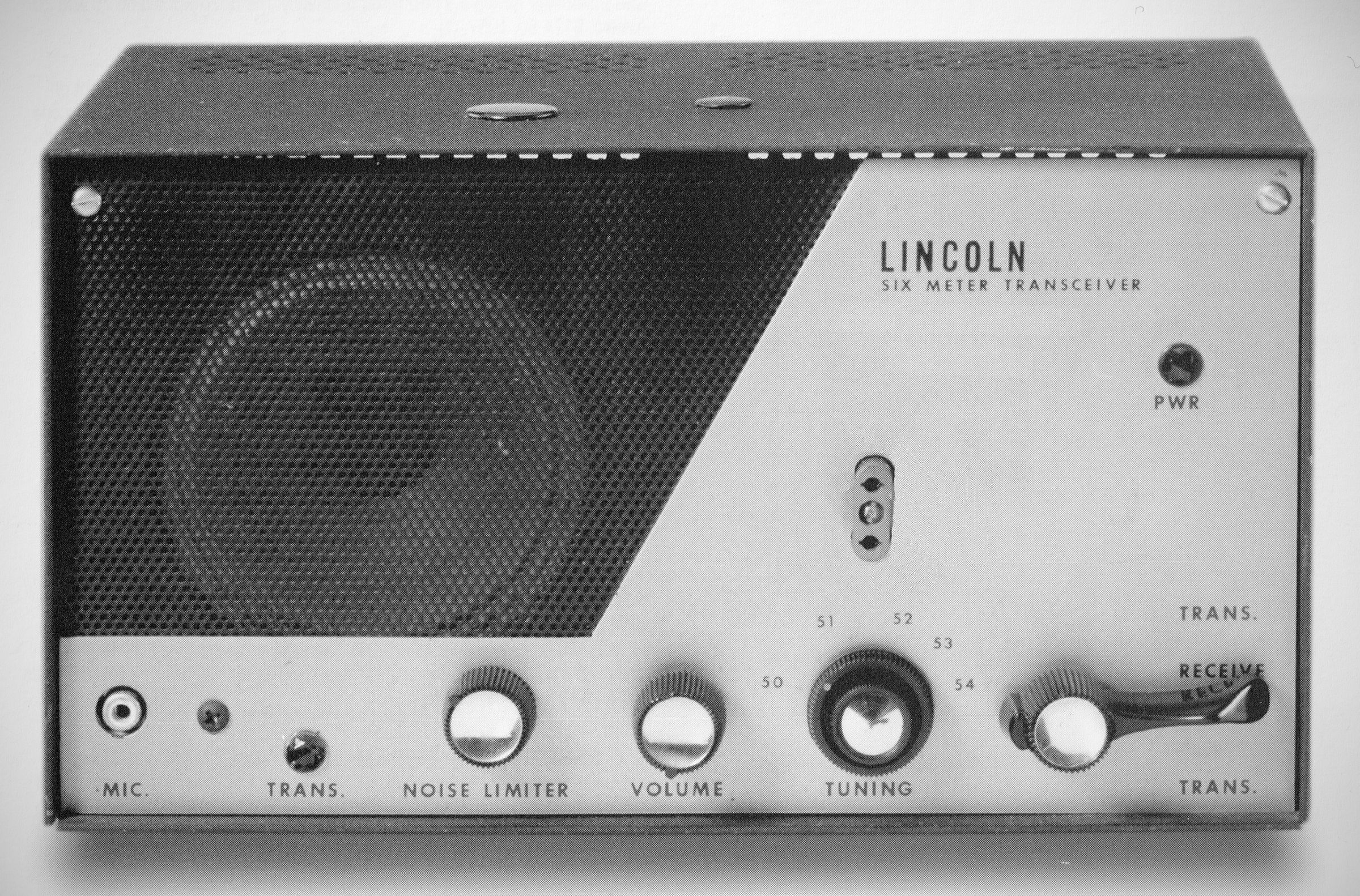

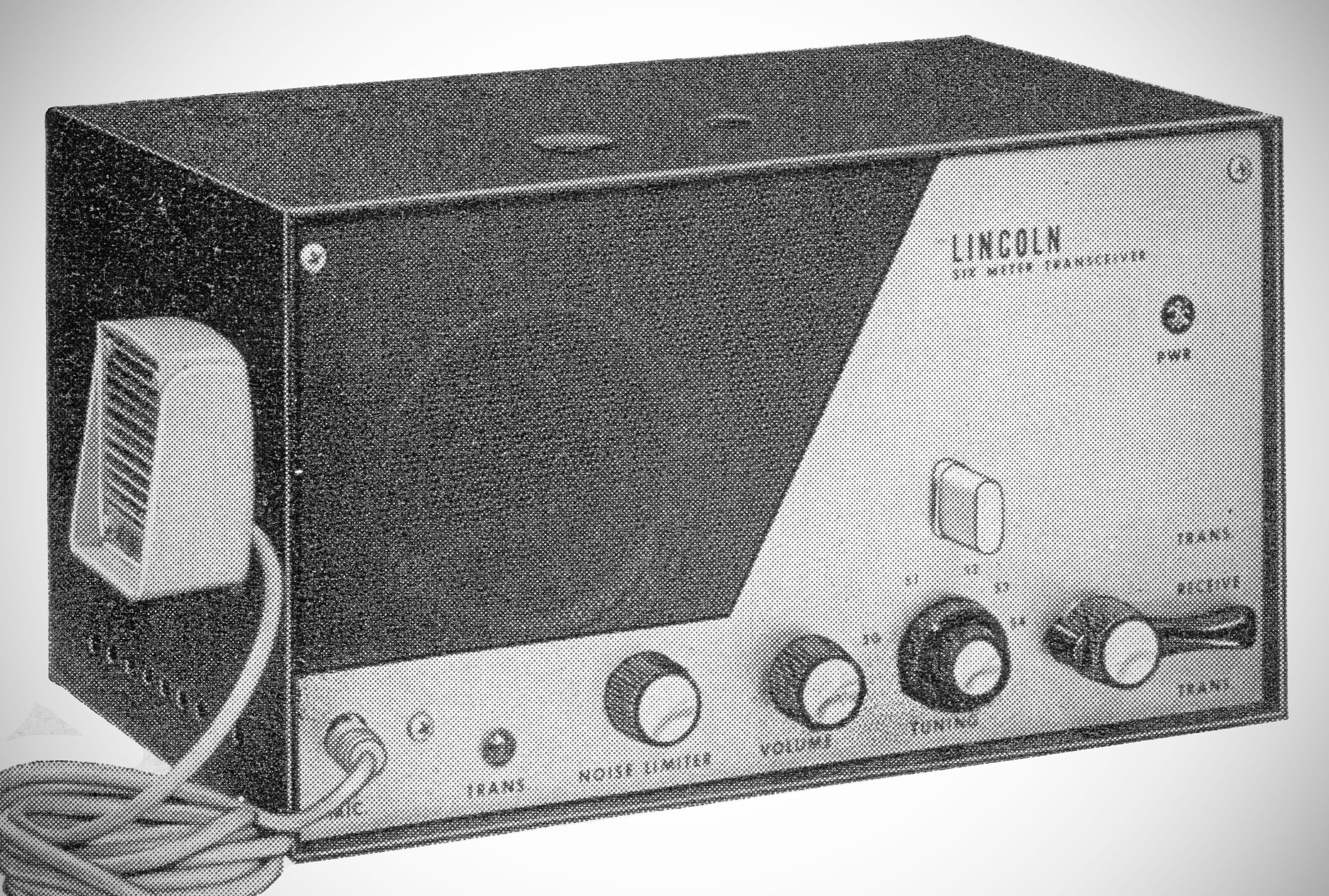

Allied Radio's model L-2754 transceiver had a superhet receiver tunable from 50–54 MHz and a 7 -watt, crystal-controlled AM transmitter. The 115 VAC power supply was self-contained, and both 6 and 12 VDC supplies were available.
This is exactly the same device as the United Scientific DeWald 6 meter transceiver (see separate entry), and the Lafayette HE-35.
Specifications & Features
– Input power: 7 watts
– Features a front-panel crystal socket accepting 3rd overtone crystals above 50.1 Mc (normally supplied with a 50.2 Mc crystal installed).
– Utilizes a variable "Pi" network for matching to various antenna types.
†he receiver is a superheterodyne circuit preceded by an RF stage for improved sensitivity, selectivity, and reduced RF radiation. Includes AVC and a controlled noise limiter circuit. Built-in series-resonant and parallel-resonant TVI traps are designed to suppress television interference on transmit and receive.

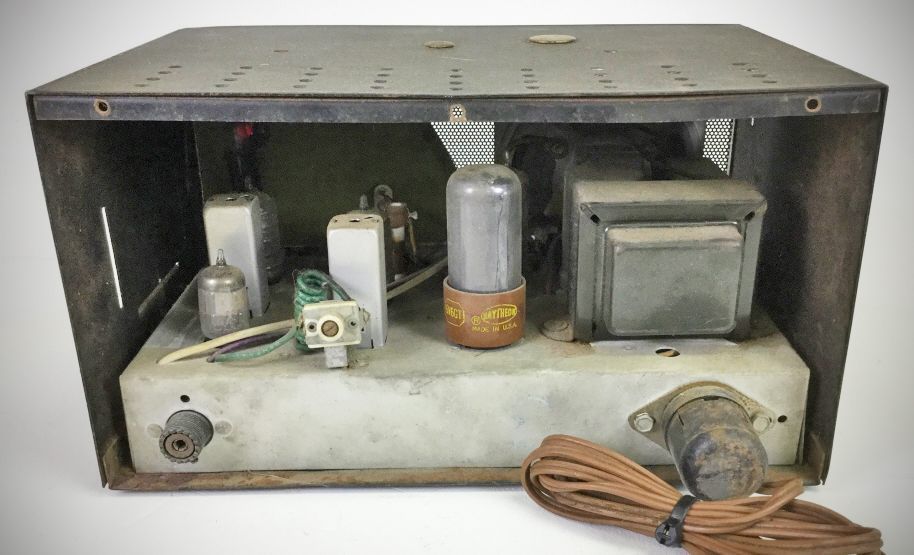

Tube Complement (6 total)
– 6U8A or 6EA8: RF amplifier and mixer.
– 6U8A or 6EA8: local oscillator and 1st IF amplifier.
– 6AL5: detector and noise limiter.
– 6CX8: crystal oscillator and RF power output stage.
– 12AX7: AF amplifier and microphone amplifier.
– 6V6GT: modulator and audio output stage.
Power Requirements & Mobile Operation
AC Operation: Runs on standard 110–120 VAC, 60 Hz, using the included 11-pin socket power cord.
Note: Can not be run directly from DC.
References
Review: CQ, Aug 1961, p. 67.
