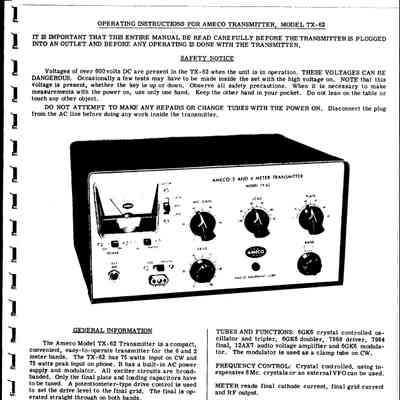

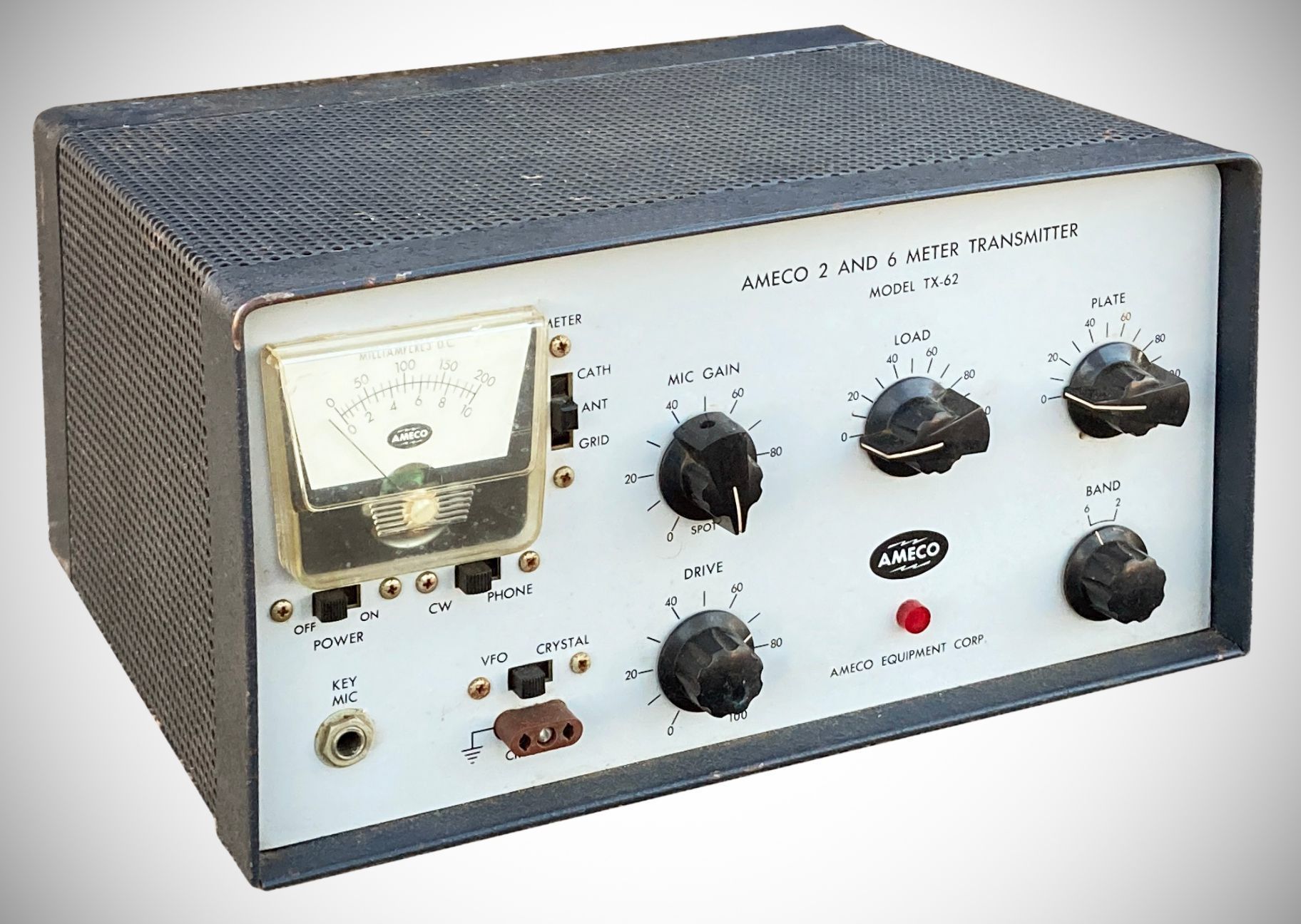

The Model TX-62 is a complete 6 and 2 meter, 75 watt phone and CW transmitter. The AC power supply and modulator are built in. Easy to tune. All circuits up to the final are broad-banded. Since the meter can read RF output, all one has to do to tune up the transmitter is to peak the final plate and loading capacitors for maximum reading.
The cabinet is completely perforated and parts of the chassis are perforated to allow for proper ventilation. The components are conservatively rated.
Specifications
– Frequency coverage: 50-54 Mc. & 144-148 Mc.
– Power input to final: 75W. CW, 75W. peak on phone.
– Crystal-controlled or VFO. Crystals used are in the 8 MHz range.
– Meter reads final cathode current, final grid current and RF output.
– Controls: power switch, phone-CW switch, meter, selector switch, crystal or VFO switch, audio gain control, drive control, bandswitch, final plate tuning, loading.
– Solid state power supply included, built-in.
– Mic/key jack and crystal socket on front panel. Push-to-talk mike jack.
– TVI suppressed.
– Connections on rear panel for key and relay.
Tube lineup (6 total)
– 6GK6 osc., tripler
– 6GK6 doubler
– 7868 tripler (on 2 meters)
– 7984 final
– 12AX7 modulator
– 6GK6 modulator
References
Brief description. Electronics World, Jan 1965, p. 96.
