Note
Kit or wired.
QST, Nov 1960, p. 167.
QST, Dec 1963, p. 133.
QST, Jan 1964, p. 127.
QST, Jun 1965, p. 143.
QST, Jan 1966, p. 113.
Ameco catalog #5, 1967

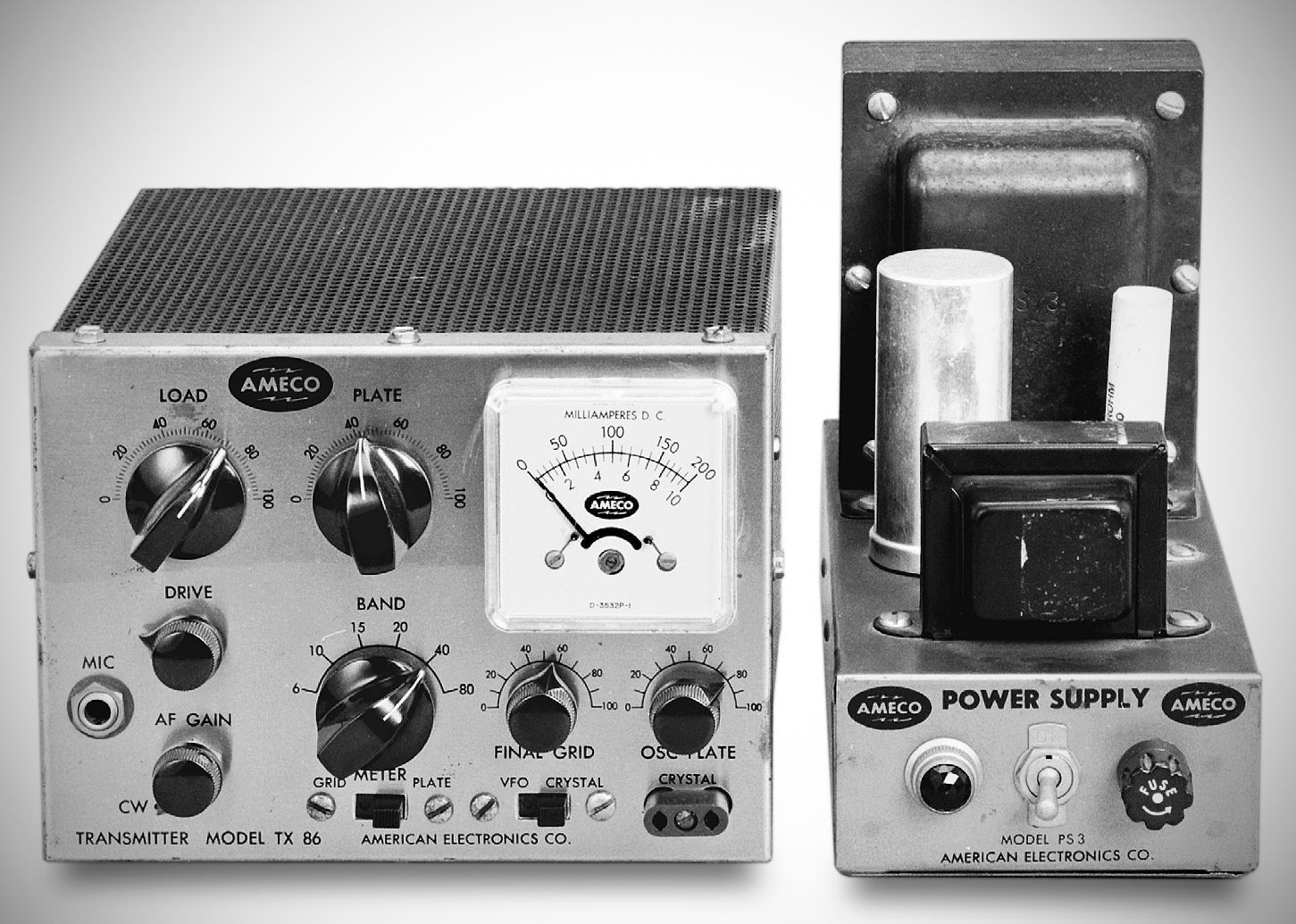

A compact 90 watt transmitter for CW and AM on 80 through 6 meters. The 6146 final operates straight-through on all bands. Pi-network output will feed antennas from 35 to 600 ohms.
Other features: "Exclusive" modulator circuit, audio gain control, potentiometer drive control (no detuning), push-to-talk mic jack, TVI filtered. Can take crystal or VFO.
Power Requirements:
6.3 v. at 3.2 a., 12.6 v. at 1.6 a., 300 v. at 75 ma, and 600 v. at 150 ma.
References
Brief description. Popular Electronics, May 1961, p. 25.
