Note
Ham Radio, Jul 1975, p. 108.
Ham Radio, Jul 1976, p. 89.
QST, Jan 1980 p. 140.
QST, Nov 1980, p. 172.

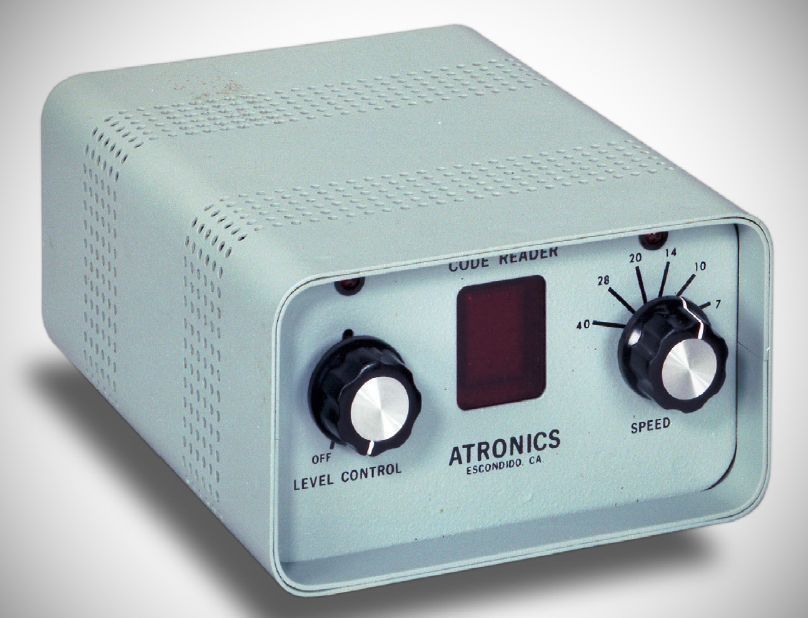

The Atronics code reader is a compact, solid-state instrument that decodes Morse directly from your speaker and displays the resultant message in alpha-numberic form on the front panel. A choice of readout size is available.
The model CR-101 characters are 0.65 inch high by 0.42 inch wide (16.5 by 10.7 mm); model CR-1O1A characters are 0.2 inch high by 0.15 inch wide (5 by 3.8mm).
All characters, including punctuation, are displayed one at a time. Code speed, on-off, and audio level are set by front-panel controls. The speed control, with settings between 0-10, is used as an indicator only. For any setting, code speeds between 70-140 percent of that setting can be decoded. For example, if the code reader is set for 14 wpm, it will display any code speed between 10-20 WPM.
An LED above the speed control indicates the expected length of a received dot. Another LED above the level control indicates mark (on) and space (off). The only connection required is a line between a phone jack on the code reader rear apron and your receiver speaker terminals. Input impedance of the code reader is 1000 ohms.
A RTTY interface module (model TU-102) is available as an optional accessory. The TU-102 accepts 5 level code (start, five data bits, two stop bits). Teletype speed can be selected for 60, 75, or 100 wpm. Auto features CR, LF, FIG and letters are provided automatically.
CR-101, $225.00
CR-1O1A, $195.00
TU-102, $85.00
