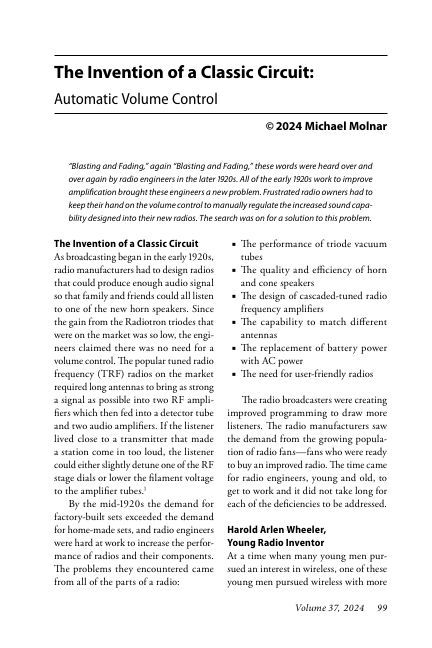

Abstract The Invention of a Classic Circuit: Automatic Volume Control, by Micheal Molner Background: In the mid-to-late 1920s, rapid advancements in vacuum tube technology—specifically the introduction of screen grid tubes—and the development of electrodynamic speakers vastly increased the amplification and audio capabilities of radio receivers. However, this increased power introduced a frustrating user problem known as "blasting and fading," where volume fluctuated wildly across the broadcast band, requiring constant manual adjustment. Innovation: To solve this issue, a young engineer named Harold Alden Wheeler, working for the Hazeltine Corporation, invented the Automatic Volume Control (AVC) circuit between 1925 and 1926. Built into a prototype superheterodyne receiver known as the "Washington Receiver," Wheeler’s design utilized a triode wired as a diode rectifier detector. This circuit split the incoming signal to generate a direct current (DC) bias voltage from the carrier wave, which was fed back to automatically regulate the gain of the radio frequency (RF) or intermediate frequency (IF) amplifier stages based on the incoming signal strength. Impact & Legacy: The AVC circuit saw its first major commercial success when integrated into the Philco Model 95 ("Screen Grid Plus") console radio in 1929, helping propel Philco to the position of radio industry sales leader. The patent royalties from the AVC circuit subsequently sustained the Hazeltine Corporation laboratories throughout the Great Depression. Although the U.S. Supreme Court legally invalidated the patents in 1942 by ruling the circuit a reconfiguration of existing technology, the technical community highly regarded the breakthrough. In 1980, Electronics magazine ranked Wheeler's AVC circuit as the fourth most impactful classic circuit of the 20th century. The foundational principles of the design endure today under the concept of negative feedback and Automatic Gain Control (AGC) in both radio and television systems.
