Note
QST, Apr 1938, p. 2.
QST, Sep 1939, p. 1. (a few details)
Lafayette catalog number 78, p. 149.
Brief review. Radio, Jan 1939, p. 29.

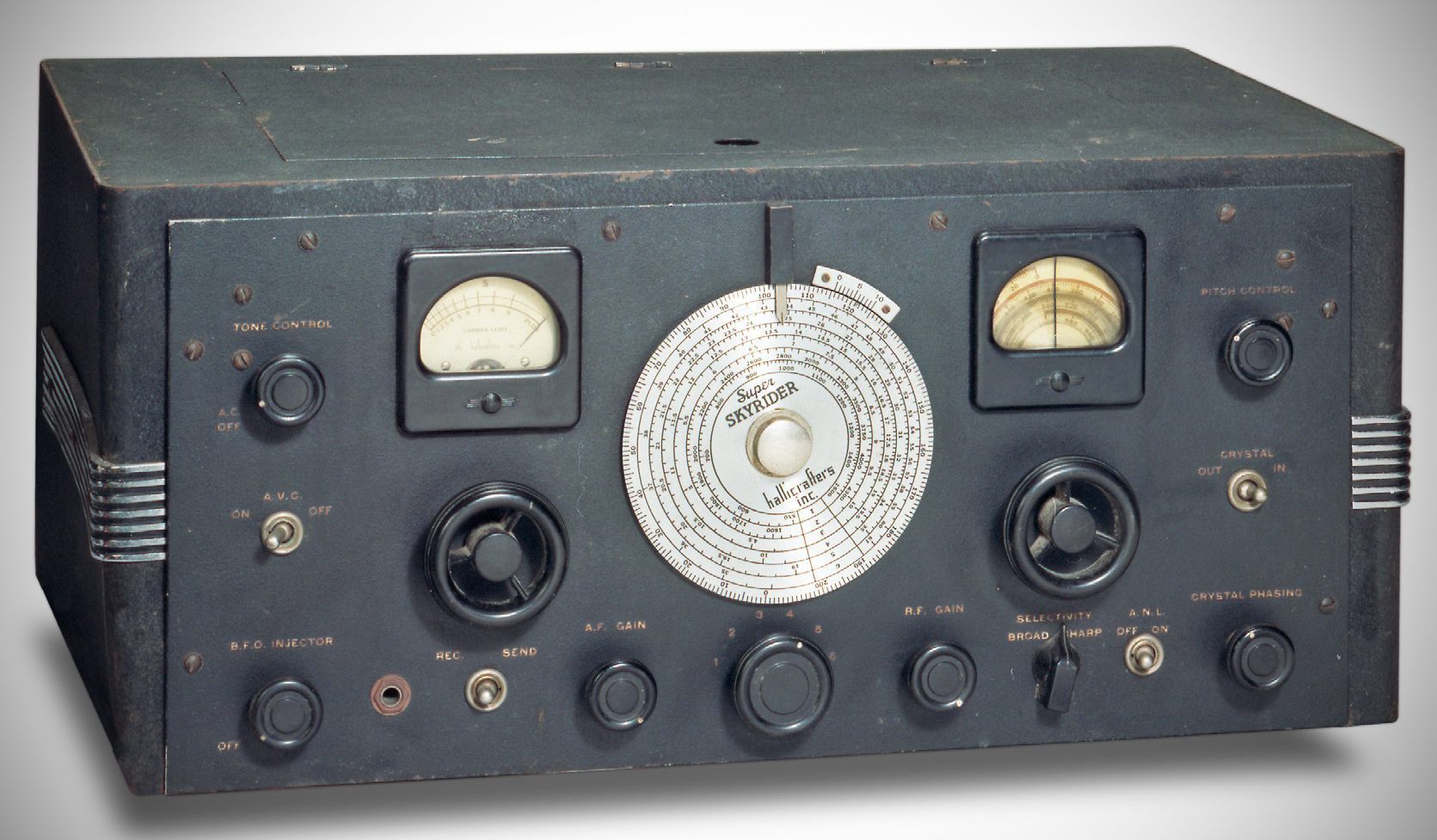

Superheterodyne. Extra stage of RF amplification and a noise limiter. SX-17-F made for use by the FCC, and features the option for 6 VDC power, though it does require an external "vibrapack" for mobile use. Requires external speaker.
SX-17-F specifications are the same, except audio output uses a single 6V6.
Coverage: 540 kHz to 62 MHz
IF: 465 kHz
Tubes: (1) 5Z3, (2) 6V6, (1) 6H6, (2) 6J7, (1) 6R7, (3) 6K7, (1) 6J5, (1) 6L7
