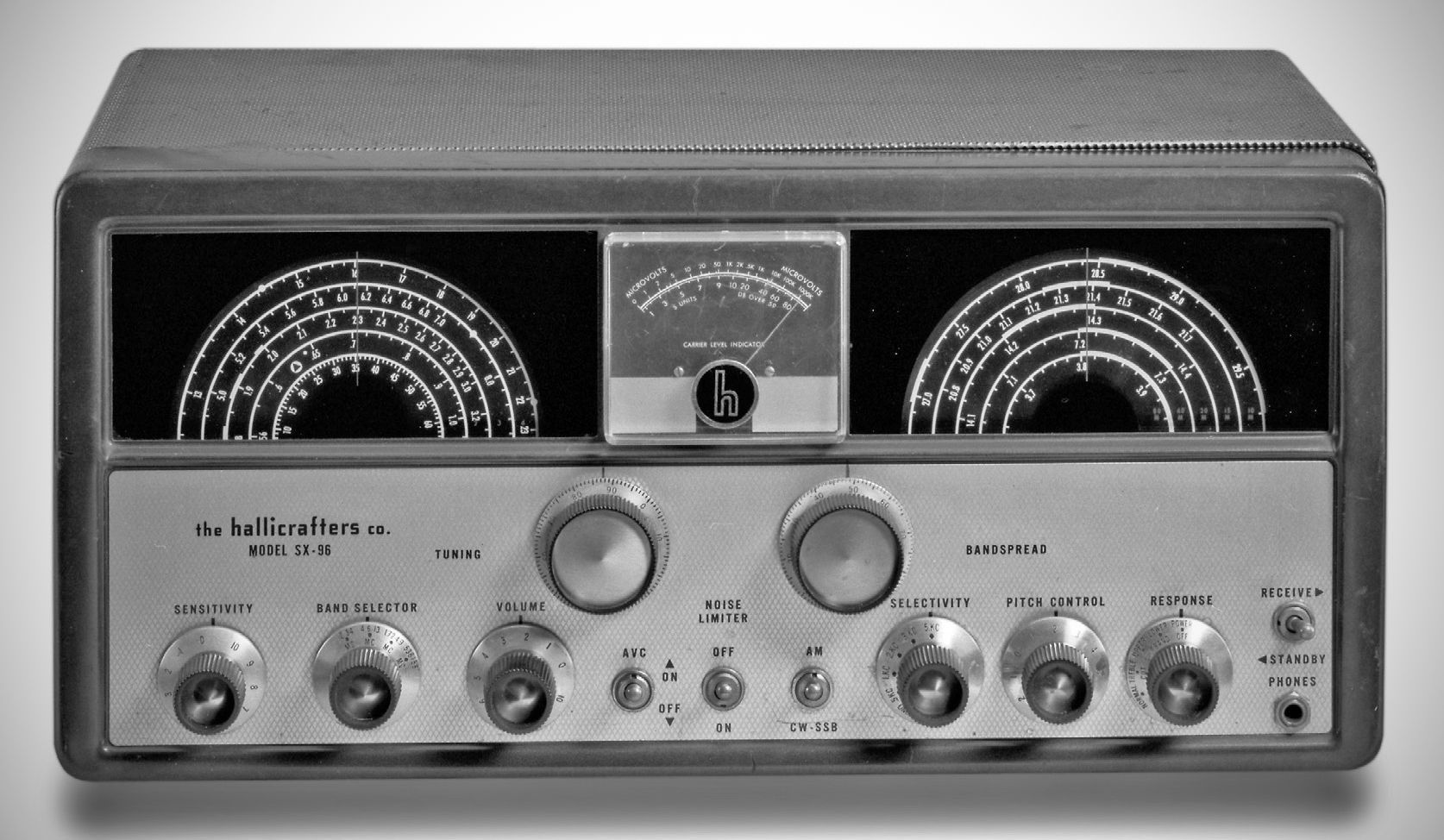

Double conversion superheterodyne circuit features selectable single-sidebands, mixer-type second detector, crystal controlled second conversion oscillator, and bandspread calibrated for 80, 40, 20, 15, 11, and 10 meters. Also has BFO, ANL, crystal filter, variable selectivity, S-meter, delayed action AVC that function in all modes, and gear-driven flywheel tuning. Requires external speaker.
Coverage: 540 kHz to 33 MHz
IF: 1st 1650 kHz, 2nd 50 kHz
BFO
ANL
AVC
Speaker: 3.2 and 500 Ω terminals
Power: 120 VAC
Tubes: (1) 6CB6, (1) 6AU6, (1) 6C4, (1) 6BA6, 12AT7, (3) 6BE6, (1) 6AL5, (1) 6SC7, (1) 6K6, (1) 5Y3, (1) 0D3 (VR-150)
