Amplidyne C-61

Object/Artifact

-

Radio Alpha

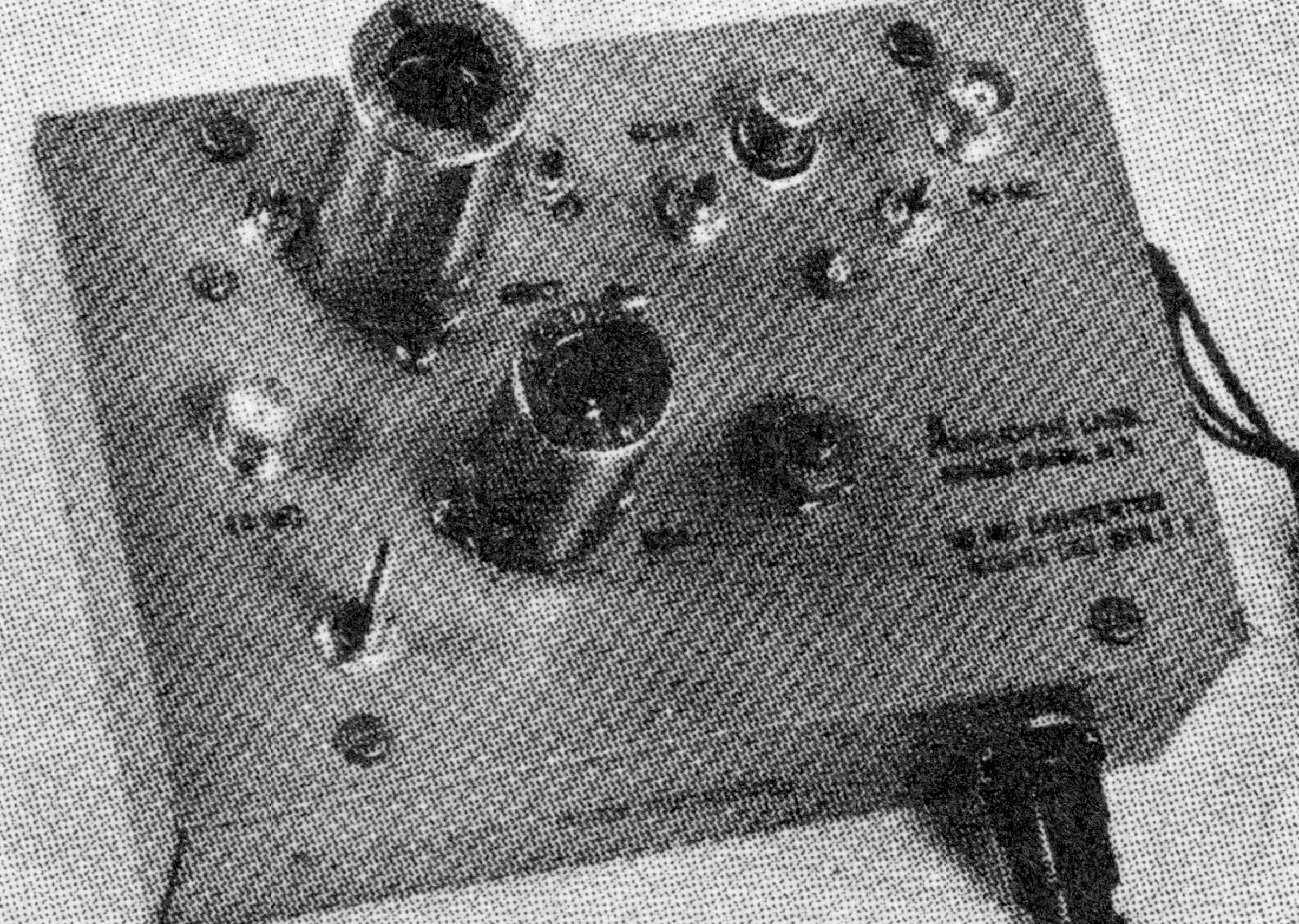

Image: VHF Horizons, Apr 1963

Image: VHF Horizons, Apr 1963

Name/Title

Amplidyne C-61

Description

6 Meter Nuvistor Receiving Converter

Category

Receiving Converter

Made/Created

Manufacturer

Amplidayne Labs

Date made

1963 - 1963

Valuations

Value

$28.50

General Notes

Note

Input: 50–54 MHz Output: 14–18 MHz (other IFs available) Noise figure: 2.5 db typical Gain: 25–35 db (10 db adjustment to ensure a good match) Impedance: 50Ω Connectors: female BNC Power requirements: 150 VDC @ 30 mA; 6.3 VAC @ 1 amp Size: 4 x 6 x 2 Tubes: (1) 6CW4, (1) 6BQ7, (1) 6C4 VHF Hozizons, Apr 1963, p. 37. Review: CQ, Mar 1963, p. 42.
