Note
QST, Aug 1948, p. 103.
Lafayette-Concord (1949 #949), p. 143.
Single conversion superheterodyne circuit.

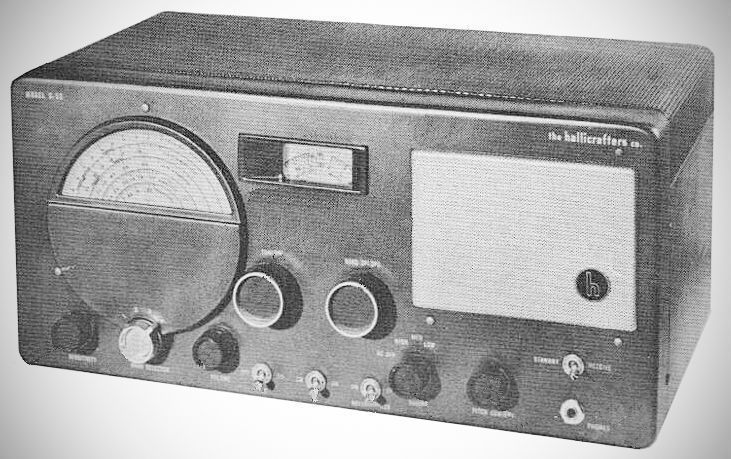

The S-52 is an AC-DC version of the outwardly identical S-40A. Both radios were released in 1948, and share the same basic specifications. Features include a headphone jack, BFO, ANL, AVC, pitch, mute, built-in speaker, three position tone control, and sensitivity control, and a zero to 100 bandspread.
In 1950 the S-52 evolved into the S-77--essentially the same radio.
Caution: Transformerless circuit.
Coverage: 540 kHz to 44 MHz
IF: 455 kHz
Modes: AM, CW
BFO
ANL
AVC
Uncalibrated Bandspread
Power: 120 volts AC-DC, 40 watts
Tubes (8 total): (1) 6SG7, (1) 6SA7, (2) 6SK7, (1) 6H6, (1) 6SC7, (1) 25L6, (1) 25Z5
