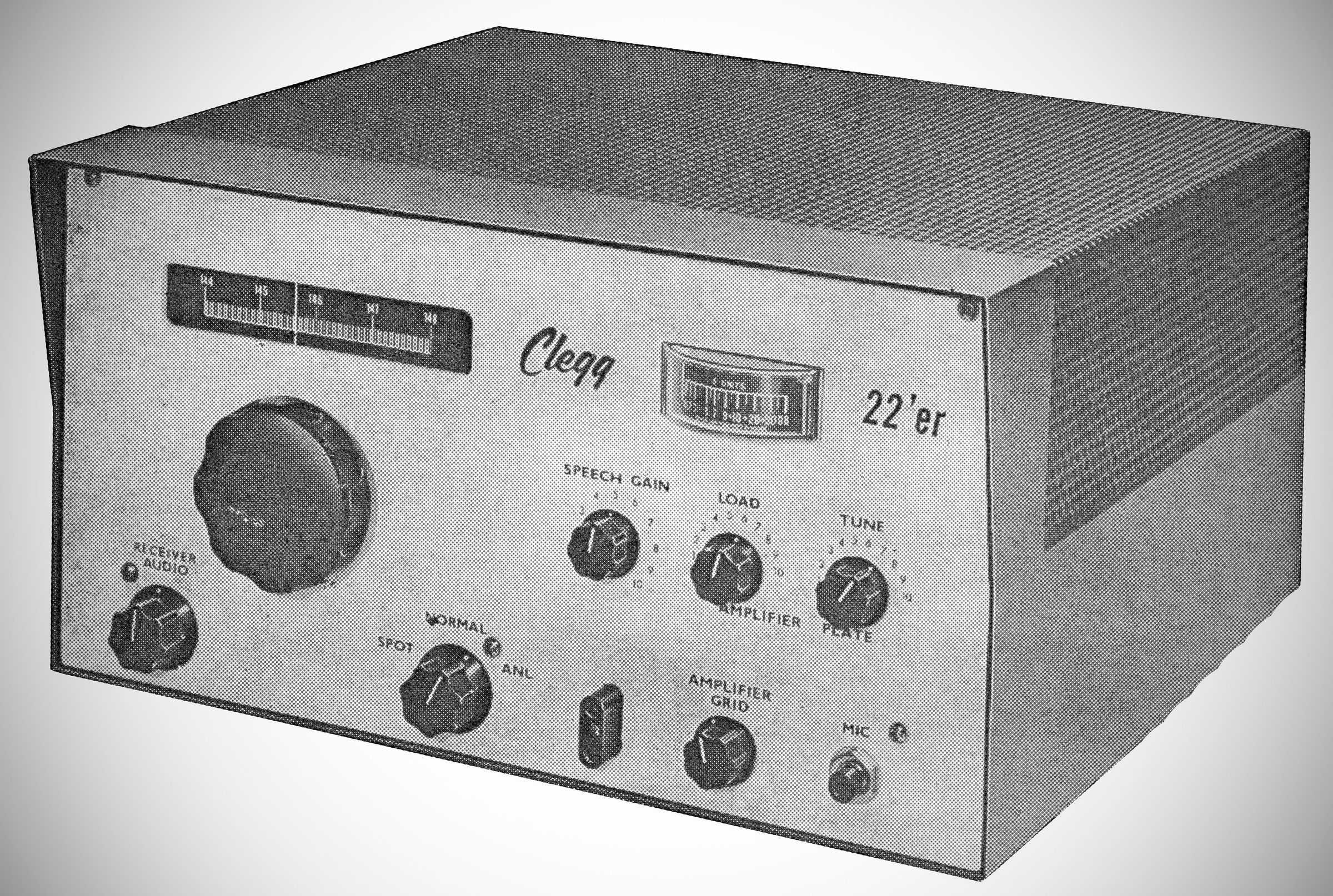

The Clegg 22’er was a popular 2-meter (144 MHz) VHF transceiver introduced in the mid-1960s. It was designed primarily for AM (Amplitude Modulation), which was the dominant mode for VHF mobile and base station operations before the widespread shift to FM and repeaters in the 1970s.
Clegg released three distinct versions of this radio as technology evolved:
The Original 22’er (1964)
The 22’er MK II (1969)
The 22’er Mk III (1972)

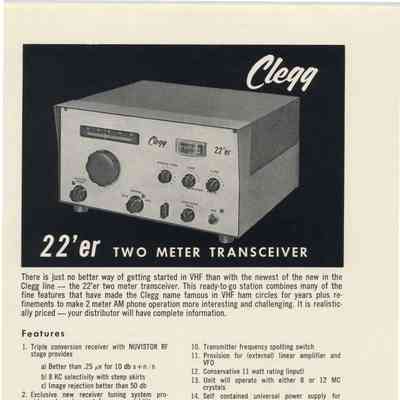

Features / Specifications (Original 22er)
– Full 143.8 MC to 148.2 MC coverage with tuning dial calibrated 144 to 148 MC
– Adjustable Squelch
– High efficiency straight through final amplifier with crystal controlled 20 watt input
⚠️ Note: this specification changed over time. Originally stated as 11 watts input.
– High level plate and screen modulation
– Spotting switch
– Self contained universal solid state power supply for 115 volts AC
– Triple conversion receiver with nuvistor RF stage
– Better than 0.25 uV for 10 db signal to noise ratio
– 8 KHz selectivity with steep skirts
– Image rejection better than 50 db
– Automatic Peak Noise Limiter on receiver
– 8.2 watts audio output with built-in high efficiency speaker
– Built in Speaker
– High level plate and screen modulation with speech clipping
– Broad banded transmitter circuits
– Push to Talk
– Transmitter frequency spotting switch
– Provision for (external) linear amplifier and VFO
– Operates with either 8 or 12 MHz crystals
Tube Lineup
– 6CW4 Rcvr RF
– 6DJ8 Mixer/VLO Tripler
– 6DJ8 VLO/Cathode Follower
– 6AU6 2nd Mixer
– 6BA7 3rd Mixer
– 6BA6 IF Amplifier
– 6AL5 Diode detector/Noise Limiter
– 12AX7 AF Amplifier/AF Amplifier
– 6BQ5 Rcvr Audio Output/Xmtr Modulator
– 6EA8 Xmtr XLO/1st Multiplier
– 12BY7 Buffer Amplifier
– 12BY7 Xmtr Driver
– 2E26 Xmtr Final Amplifier
Self contained universal power supply for 115 Volts AC and 12 Volts DC.
