Note
QST, Jul 1962, p. 2. "at your distributor in September"
QST, Jan 1964, p. 161.
QST, Jan 1965, p. 129.
Collins product catalog, 16M-CR-12-74
QST, Jun 1976, p. 2. (32S-3A)
QST, Feb 1977, p. 117. (32S-3A)

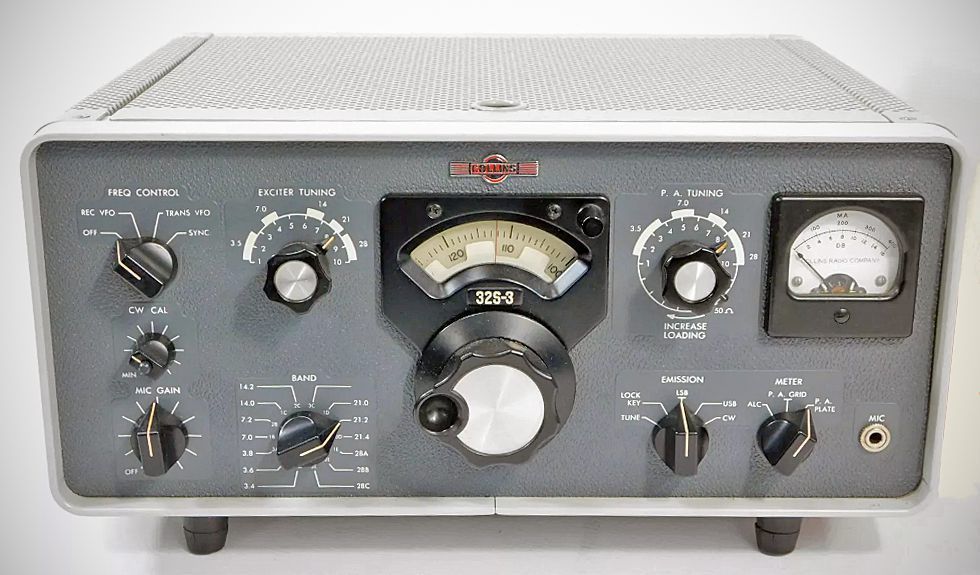

Several of the changes and improvements in the 32S-3 from the 32S-1 were for the CW mode. The 32S-1's tone-generated CW was eliminated and a carrier signal was routed around the balanced modulator. Zero-beating received signals was easier, and the keying wave shape was adjustable. The 32S-3 had the same power and mode specs as its predecessor and could transceive with 75S-series receivers.

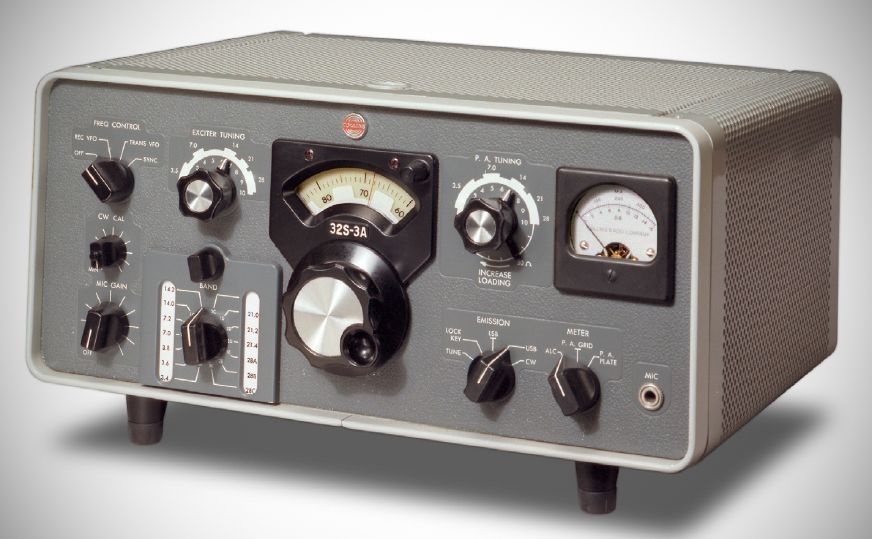

The A model added an extra crystal deck and 14 more band-switch positions to the 32S-3 transmitter. It was otherwise electrically identical. Collins offered the 744B-2 kit to retrofitolder transmitters. Factory-built S-3As had solid-white “eyebrows” above the Exciter and PA Tuning controls; $1100.00, 1969.
References
Review: QST, Feb 1963, p. 46.
Audio fix for high level mics. Ham Radio, Oct 1971, p. 64.
Improved frequency readout. Ham Radio, Jun 1976, p. 53.
