Note
Radio News, Nov 1946, p. 22.
QST, Jan 1947, p. 113. (32V-1) ($475.00)
QST, Dec 1947, p. 156. (32V-1 lists tubes)
QST, May 1948, p. 160. (a few details)
QST, Feb 1950, p. 95. (32V-2)
QST, Mar 1950, p. 2. (32V-2)
Allied Radio catalog 1951 (copyright 1950), p. 141.
QST, Aug 1951, p. 2. (32V-3)
QST, Nov 1951, p. 2. (32V-3 rear view)
Allied Radio catalog 1953 (copyright 1952), p. 38.
Allied Radio catalog 1955 (copyright 1954), p. 192.

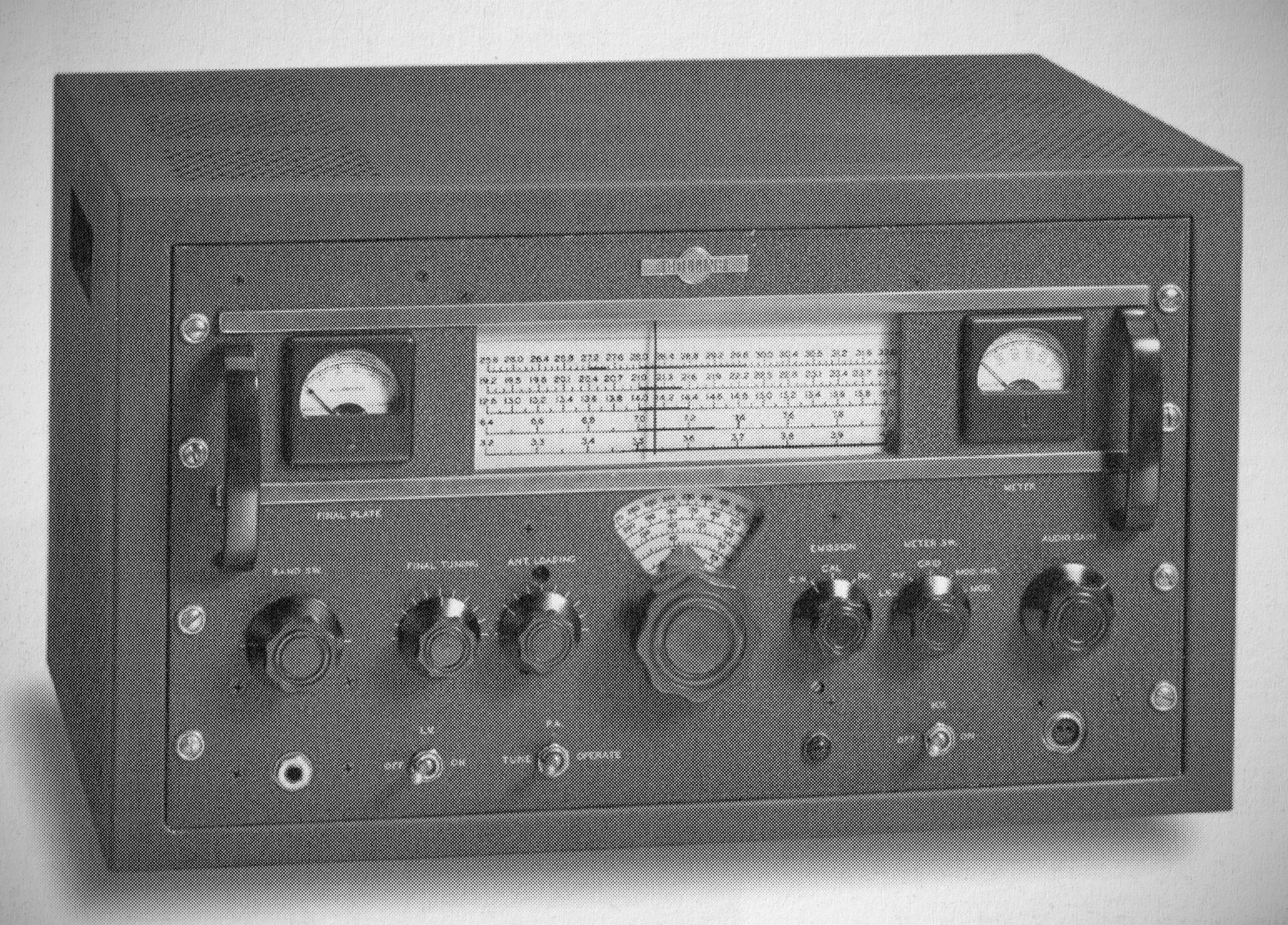

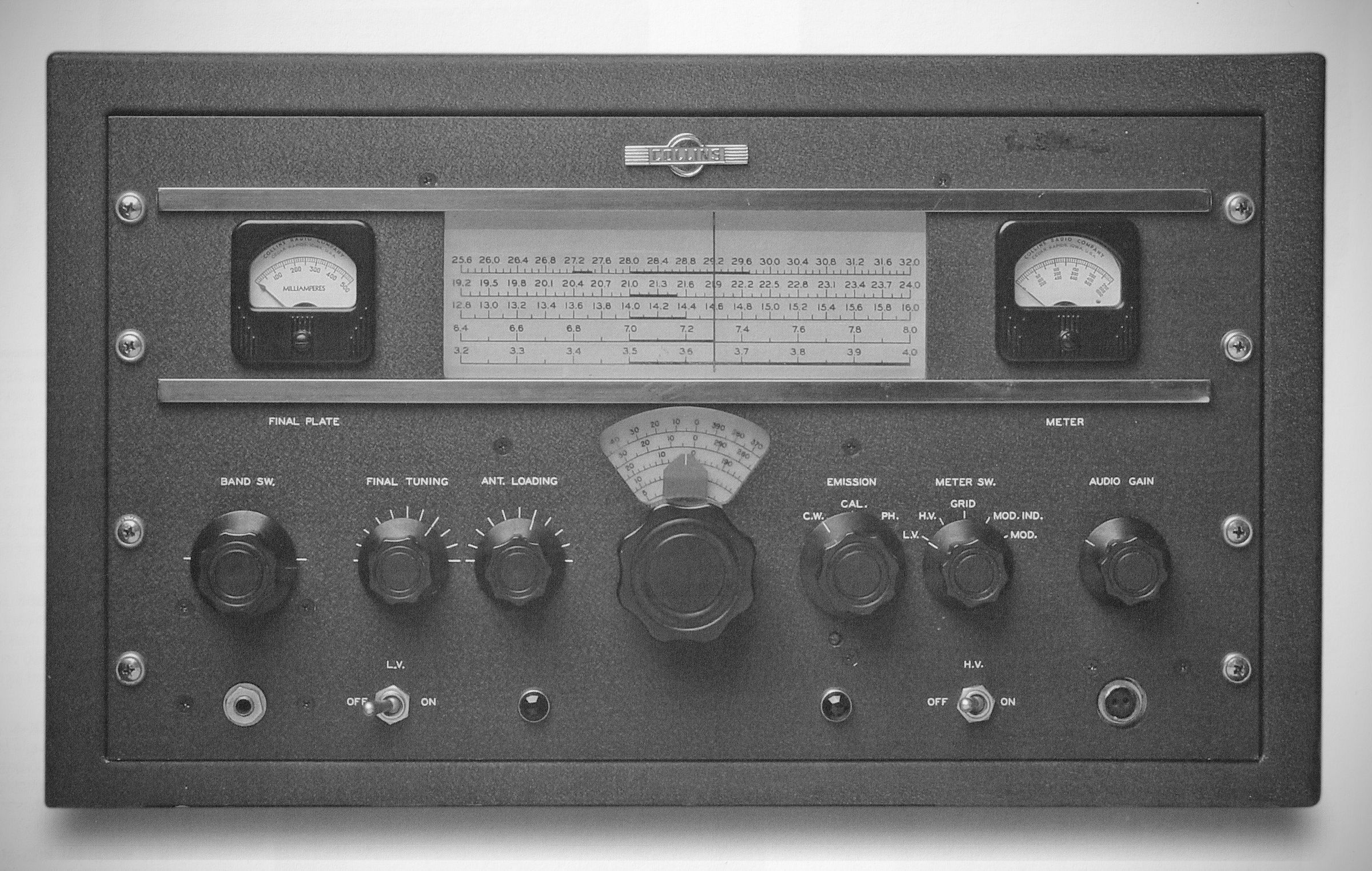

The 32V-1 incorporated a PTO, band-switching transmitter, speech amplifier, power amplifier, modulator, and power supply in a tabletop cabinet. Power input to the 4D32 final was 150 watts CW, 120 watts phone on the 80-10 meter bands. The output circuit was a pi-network.

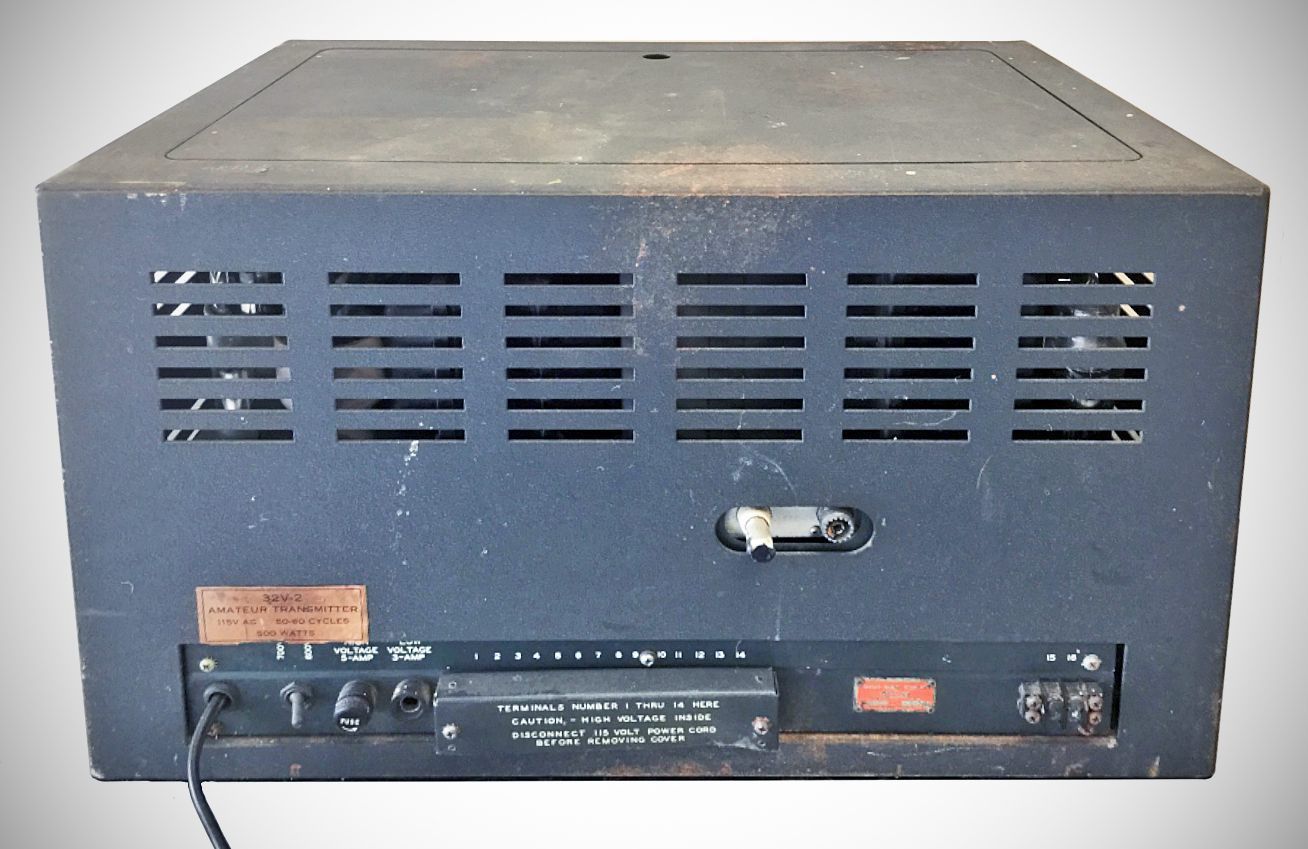

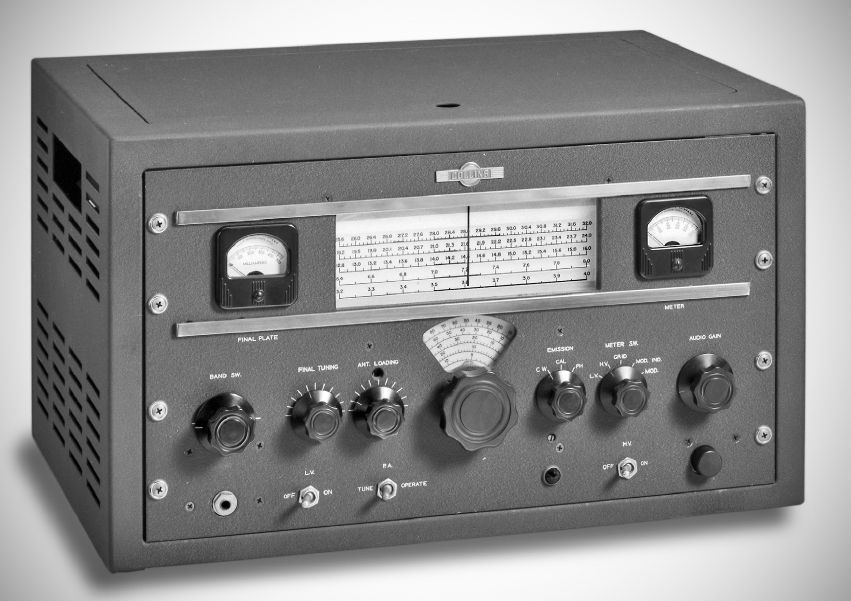

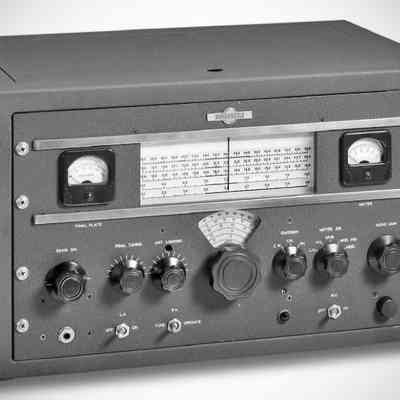

In 1949, the transmitter was superseded by the 32V-2. Differences included TVI measures such as improved shielding, both coarse and fine loading controlled by a single front-panel knob, an L-section added to the V-1's pi-net output, a coaxial connector on the rear panel, and a $100.00 price increase; $475.00.

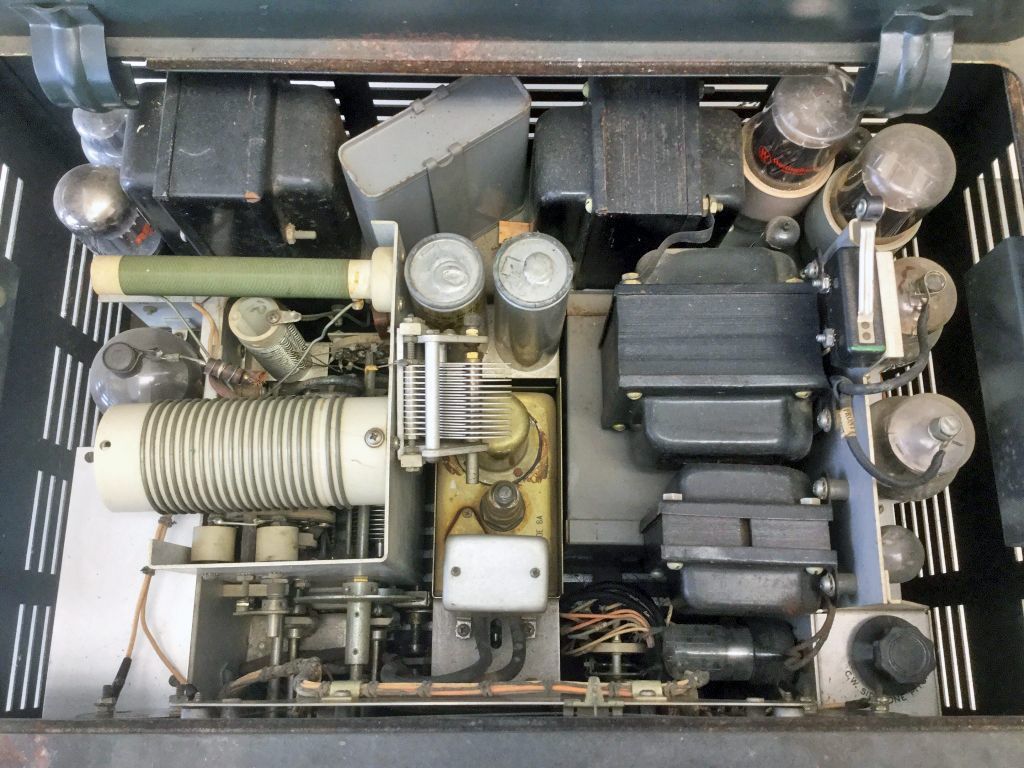

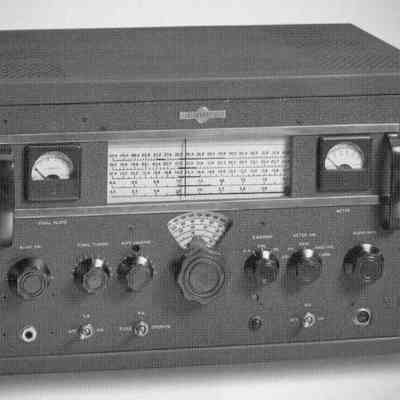

The 32V-3 continued the company's TVI campaign, with alterations of the 32V-2 design. The new transmitter was installed in a lidless cabinet having different style ventilation holes. An additional shield for the RF section was added to that already present in the 32V-2, and bypassing was improved for external connections. The CW sidetone and muting circuits were eliminated. $775.00.
References
Use on 6 meters. CQ, Apr 1958, p. 28.
