Control Signal CWID-49, 50 50R, 51, 51B

Object/Artifact

-

Radio Alpha

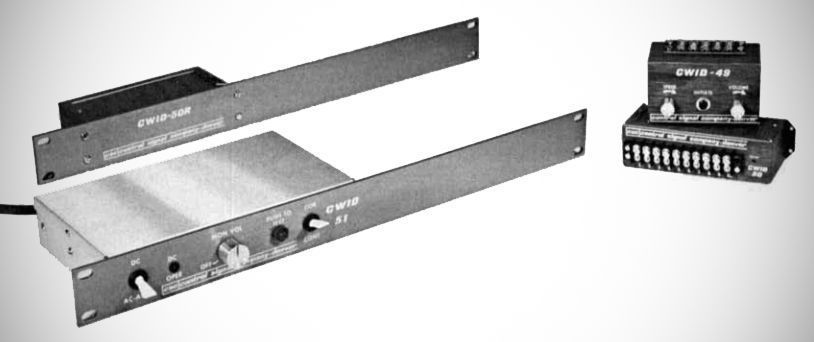

49 (upper right), 50 (lower right), 50R (upper left), 51 (lower left): Image: Ham Radio, Oct 1973
49 (upper right), 50 (lower right), 50R (upper left), 51 (lower left)

Image: Ham Radio, Oct 1973

Name/Title

Control Signal CWID-49, 50 50R, 51, 51B

Description

Automatic CW Station Identifiers

Category

Repeater Equipment

Made/Created

Manufacturer

Control Signal Company

Date made

1973 - 1979

General Notes

Note

Ham Radio, Oct 1973, p. 109. QST, Apr 1974, p. 148. QST, Oct 1974, p. 164. QST, May 1975, p. 167. QST, Apr 1976, p. 119. QST, Mar 1979, p. 172. (CWID-51B) The heart of a CWlD is a plug-in ROM, factory programmed with call (or message). All CWD's are ready to install. CWID 50 (or rack-mounted 50R) automatically transmits station ID at precisely timed (adjustable) intervals.For repeaters(orAM, FM, SSB, or AFSK rigs). Power: 7.5 to 30 VDC. CWD-51 has all features of CWID-50, plus a 120 VAC power supply, monitor speaker, switch complement, and automatic switching to a DC source if AC power is lost. CWD-49 is an automatic message generator. For CW, RTTY, or any audio modulated rig. Push button (or remote contact closure) initiates pre-programmed message.
