Note
QST, May 1961, p. 1.
Allied Radio catalog 1962 (copyright 1961), p. 273.
Allied Radio catalog 1963 (copyright 1962), p. 280.
Allied Radio catalog 1964 (copyright 1963), p. 218.
A triple conversion superheterodyne circuit designed to compete with the Collins 75A and 75S receivers.
Covers the HF ham bands in nine segments including four for ten meters, and one uncalibrated band for WWV.

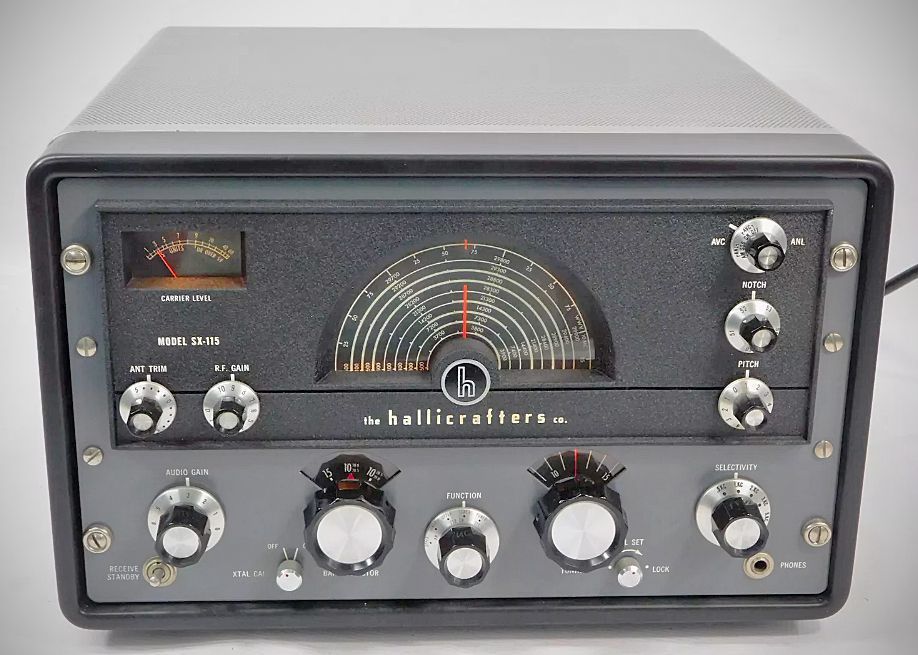

Built in crystal calibrator permits dial accuracy as good as ± 1 kHz. Gear drive tuning is virtually backlash free. Features include: S-meter, AVC ON/OFF, RF gain, ANL, mute line, antenna trimmer, notch, and 50 kHz IF Out Jack. Requires an external speaker.
Coverage (MHz):
3.5-4.0
7.0-7.5
14.0-14.5
21.0-21.5
28.0-28.5
28.5-29.0
29.0-29.5
29.5-30.0
9.6-10 (not calibrated)
IF: 1st 6005 to 6505 kHz, 2nd 1005 kHz, 3rd 50.75 kHz
Modes: AM, CW, SSB
Power:
125 VAC, 75 watts

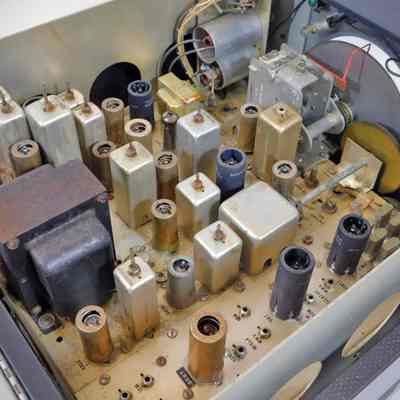

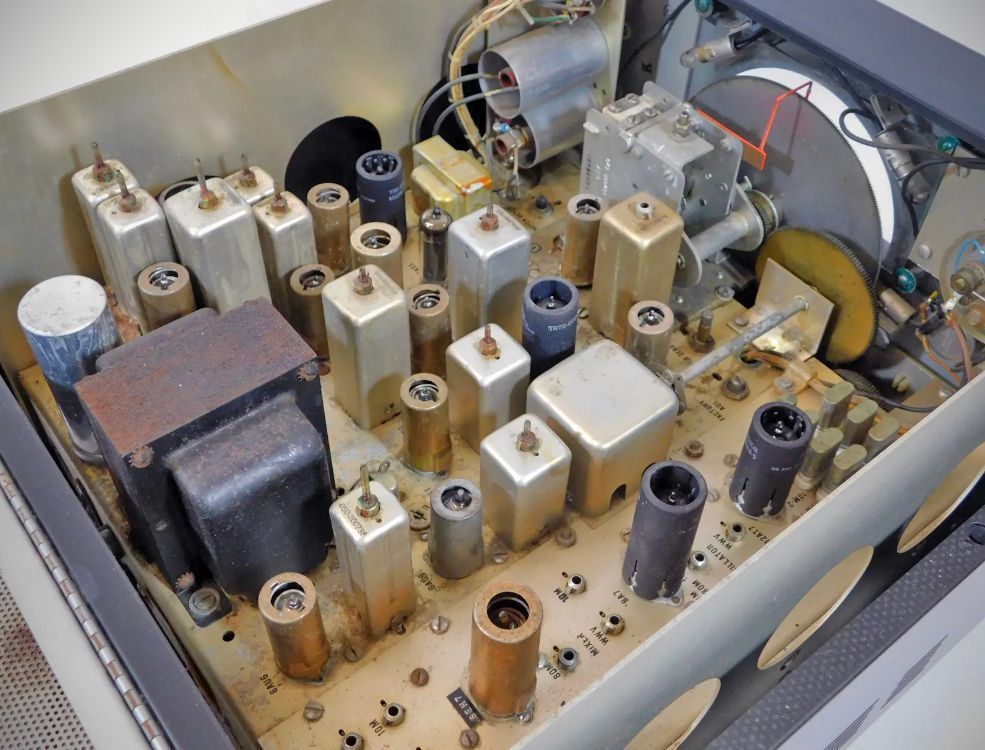

Tubes: (4) 6DC6, (2) 6BA7, (2) 12AT7, (1) 6CB6, (1) 6BA6, (1) 6BY6, (1) 6BJ7. (1) 12AX7, (1) 6AQ5, (3) 6AU6, (1) 0A2, (5) silicon diode rectifiers
References
Review: QST, Mar 1962, p. 54.
Review: CQ, Mar 1964, p. 48.
