Note
QST, Oct 1959, p. 181.
Allied Radio catalog 1960 (copyright 1959), p. 386.
QST, May 1960, p. 1. (specs)
QST, Dec 1962, p. 185.
Allied Radio catalog 1963 (copyright 1962), p. 281.
Allied Radio catalog 1964 (copyright 1963), p. 218.
QST, Mar 1965 p. 103.

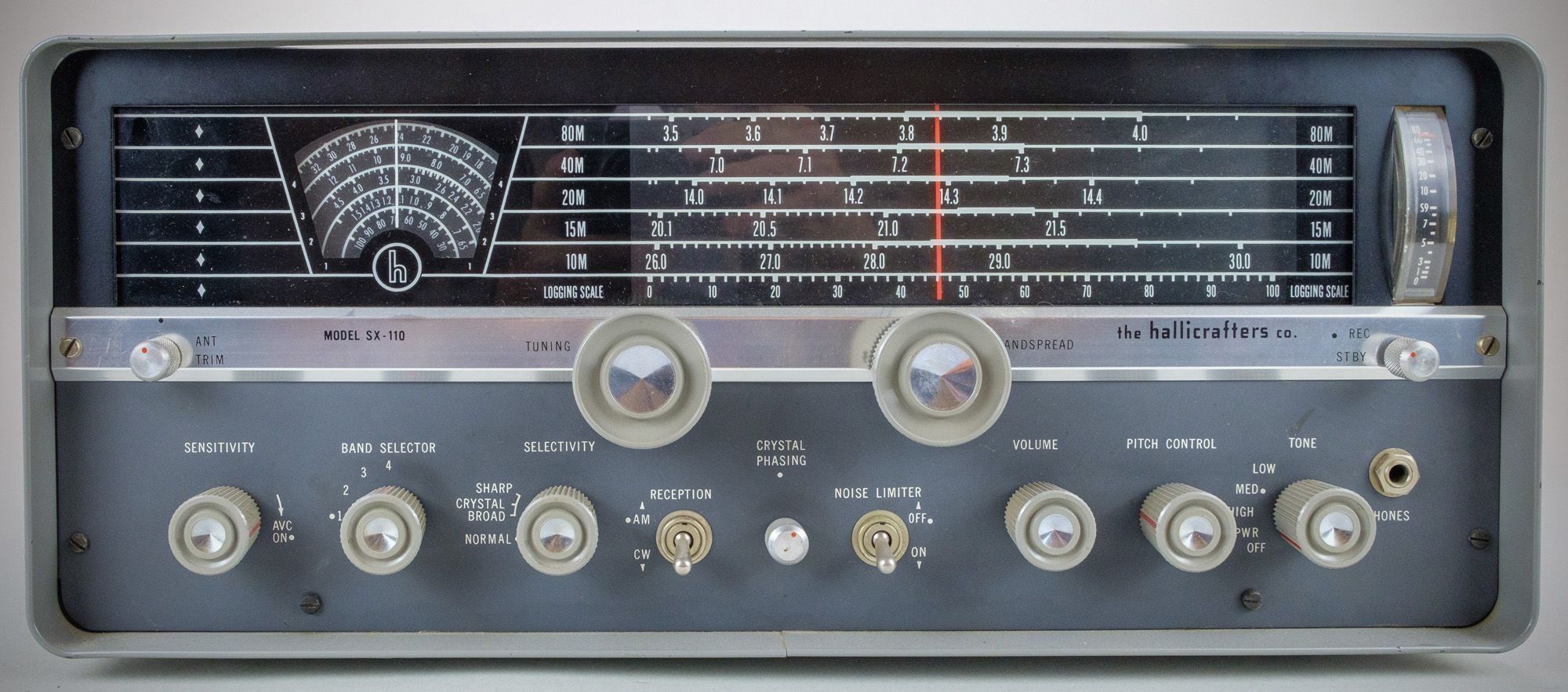

This is essentially the same receiver as the S-108, but for the additional $30 you get a crystal filter, an S-meter, and an antenna trimmer--however, you lose the internal speaker.

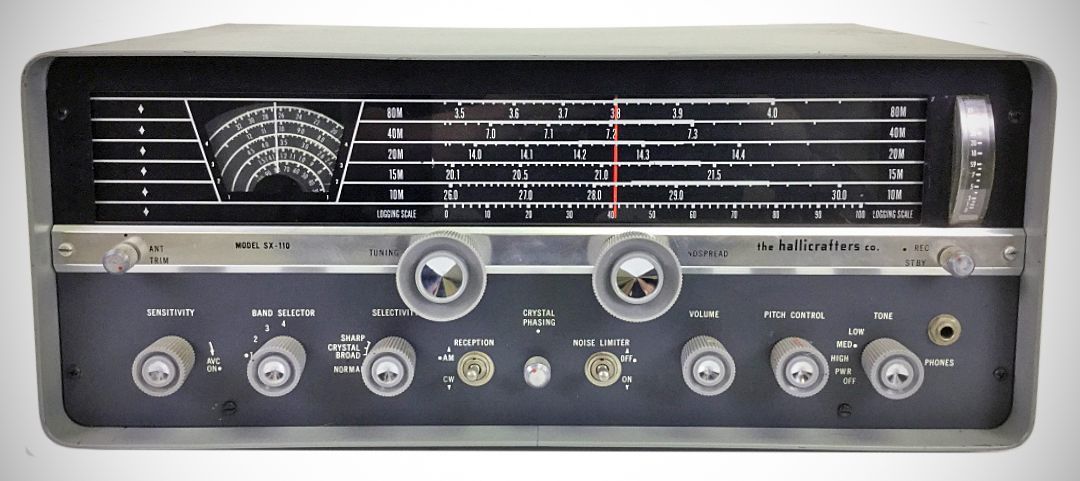

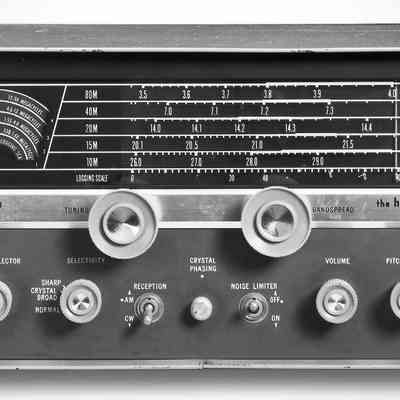

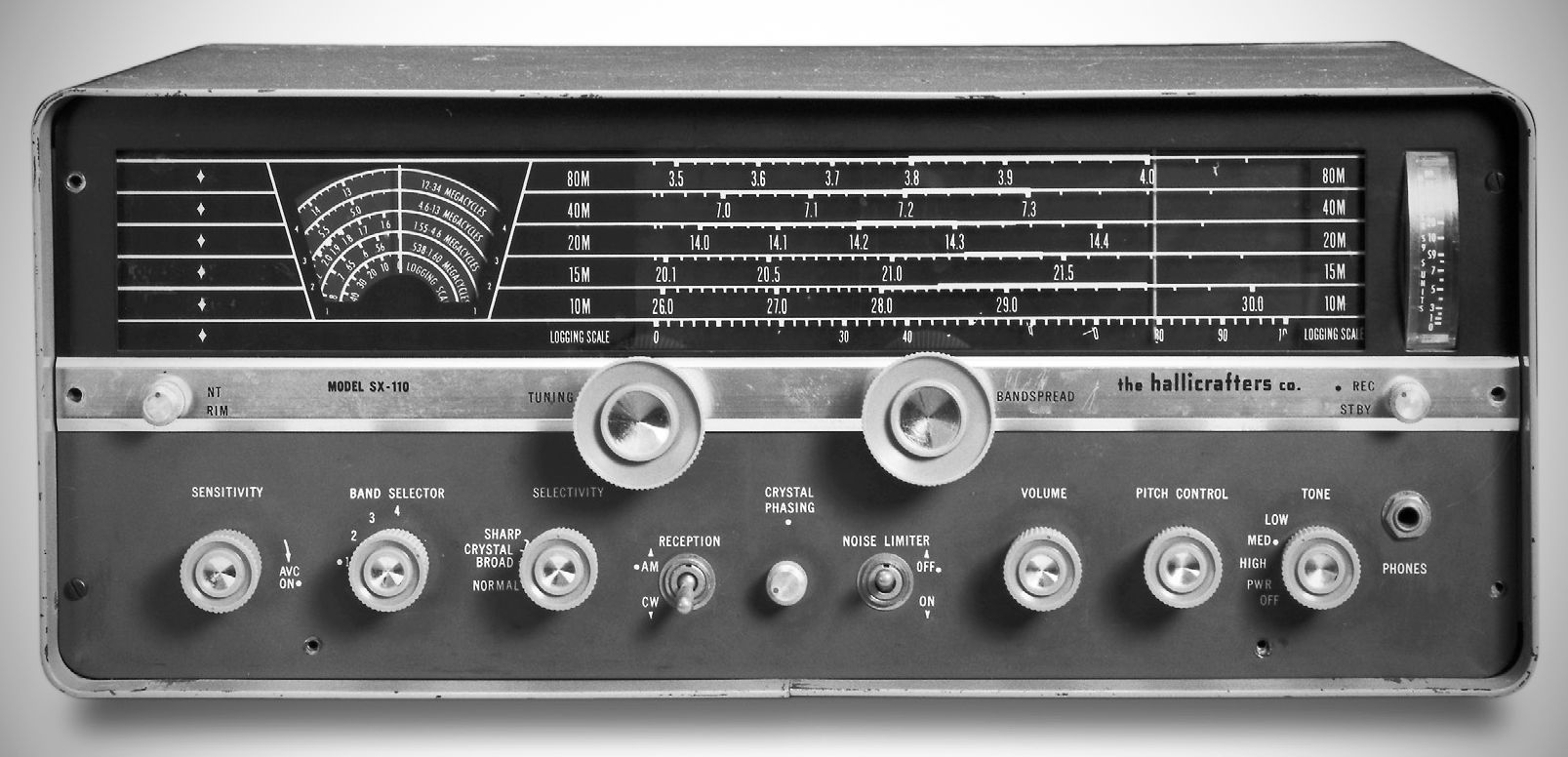

Features include a three position selectivity switch, S-Meter, AVC ON-OFF, tone (low-med-high), RF Gain, ANL, mute line, antenna trimmer, BFO, and standby switch.
Coverage: 538 Khz to 34 MHz
IF: 455 kHz
Modes: AM, CW
Requires external speaker
Audio output: 2 watts, 3.2 or 500 Ω
Power: 120 VAC. 75 watts

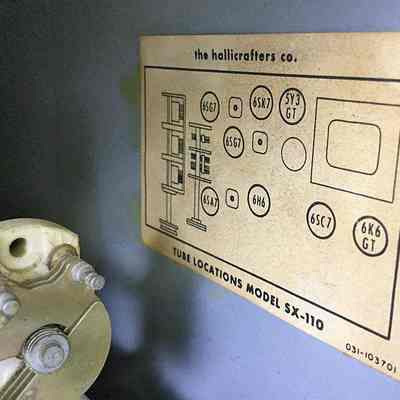

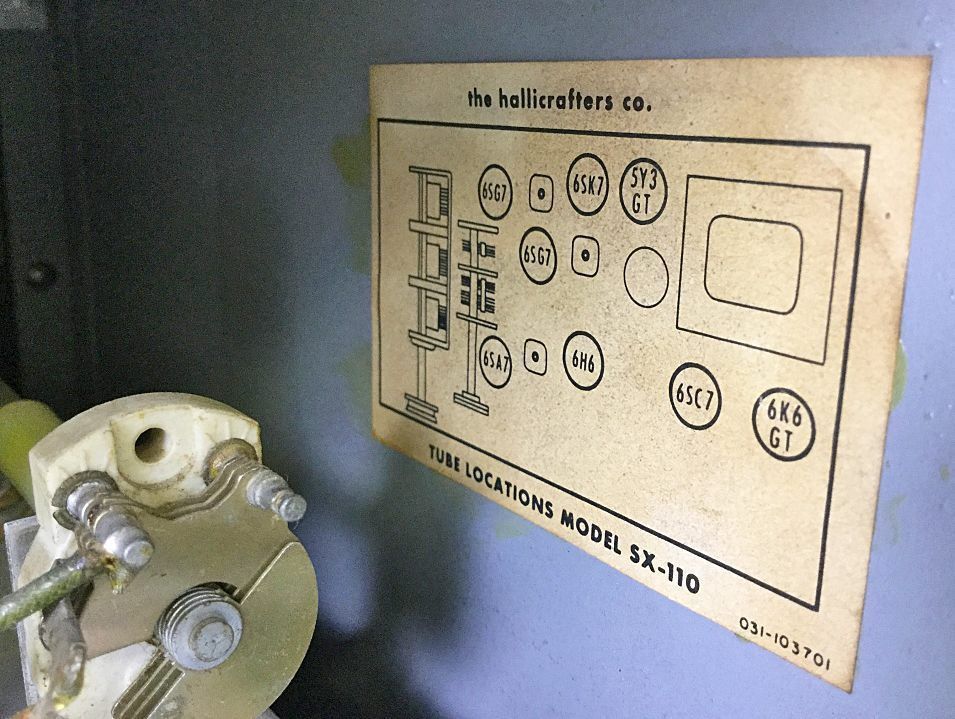

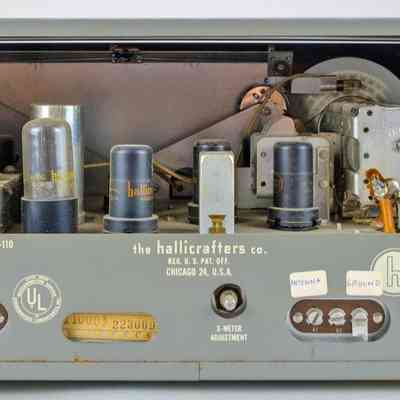

Tubes (8 total): (1) 6SG7, (1) 6SA7, (1) 6SG7, (1) 6SK7, (1) 6SC7, (1) 6K6, (1) 6H6, (1) 5Y3.
intro date unknown
