Note
CQ, Oct 1969, p. 103.
QST, Nov 1969, p. 115.
QST, Oct 1970, p. 119.
QST, Jan 1972, p. 142.
Specifications
– Frequency Range: 143–149 MHz
– Antenna Impedance: 50 Ohms Nominal
– Power Requirements: 12–14 VDC (or optional power booster)
– Power Input: 5 watts (10 watts with power booster)
– Frequency Control: 3-channel crystal-controlled
– Microphone: High impedance required
– Deviation: Adjustable narrow or wideband with clipper filter; also adjustable for optimum clipping level
– Sensitivity: SINAD .5µV for 12 dB; 1µV provides 20 dB quieting
– Squelch: Adjustable
– Modulation Acceptance: FM wideband (narrowband available)
– Type: Dual conversion, FET front end for minimum cross-modulation and overload
– IF Frequencies: 10.7 MHz and 455 kHz
– Frequency Control: 3-channel crystal-controlled
– Audio Output: 3 watts (internal 3.2 Ω speaker)
Power Booster (Optional)
Provides 10 watt operation from either 12–14 VDC or 117 VAC
References
Brief description. Electronics World, Dec 1969, pp. 84–85.

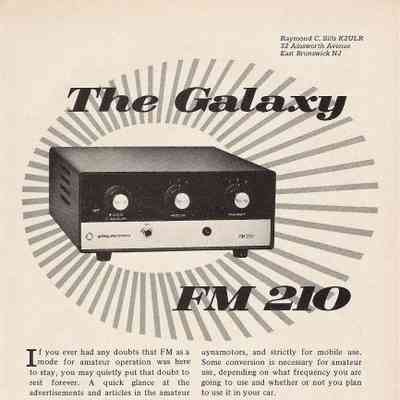

Review. 73, Jan 1971, p. 69.
