Note
QST, Aug 1963, p. 119.
QST, Nov 1964, p. 122.
QST, Aug 1965, p. 115.
QST, May 1966, p. 119.
QST, Jul 1964, p. 147. (900A. I don't know if this is the same products as Aug 1963. No model number was previously given)
CQ, Sep 1965, 23. (This appears to be an improved version)
Sometimes called the GSB-II.

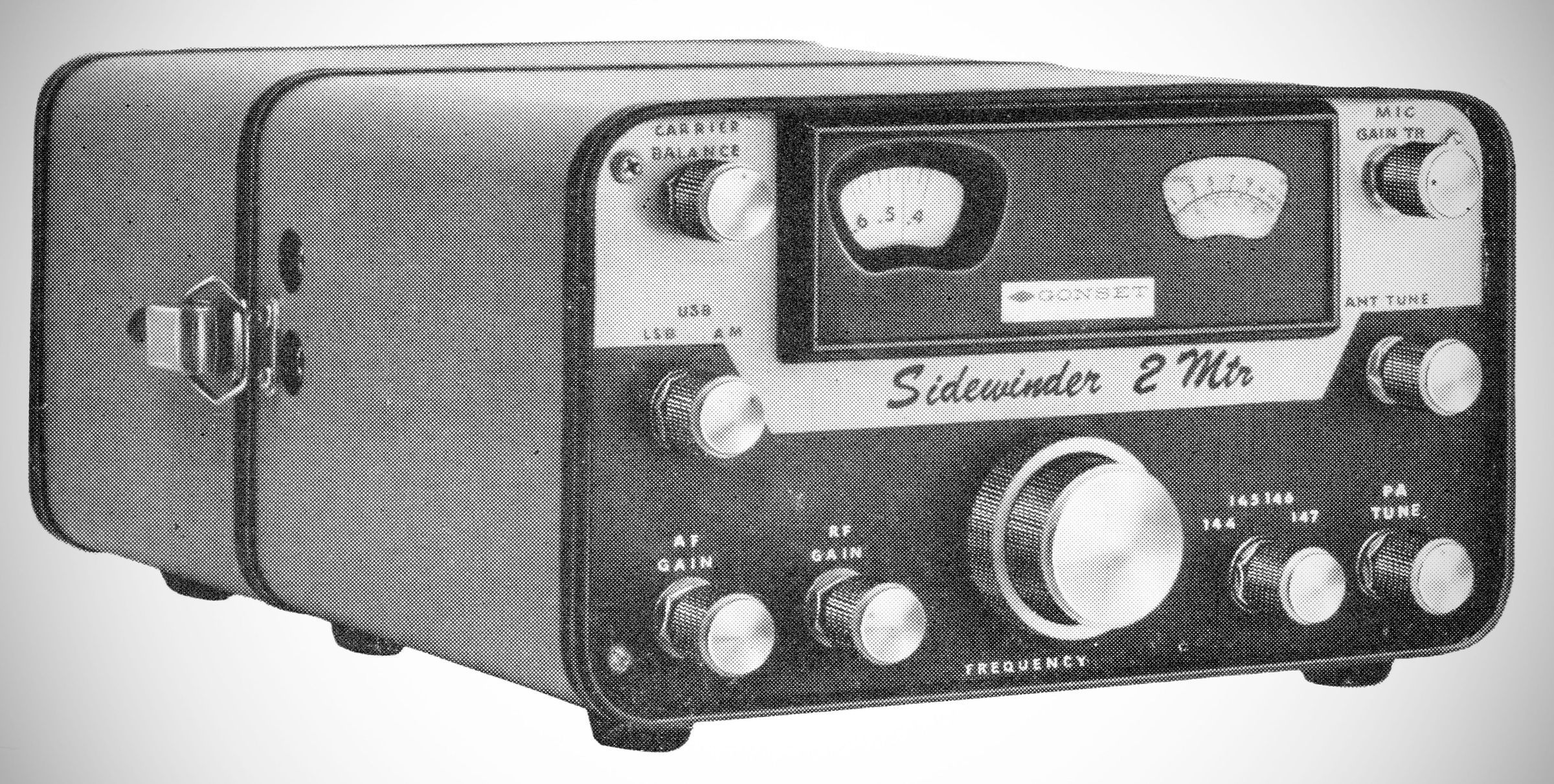

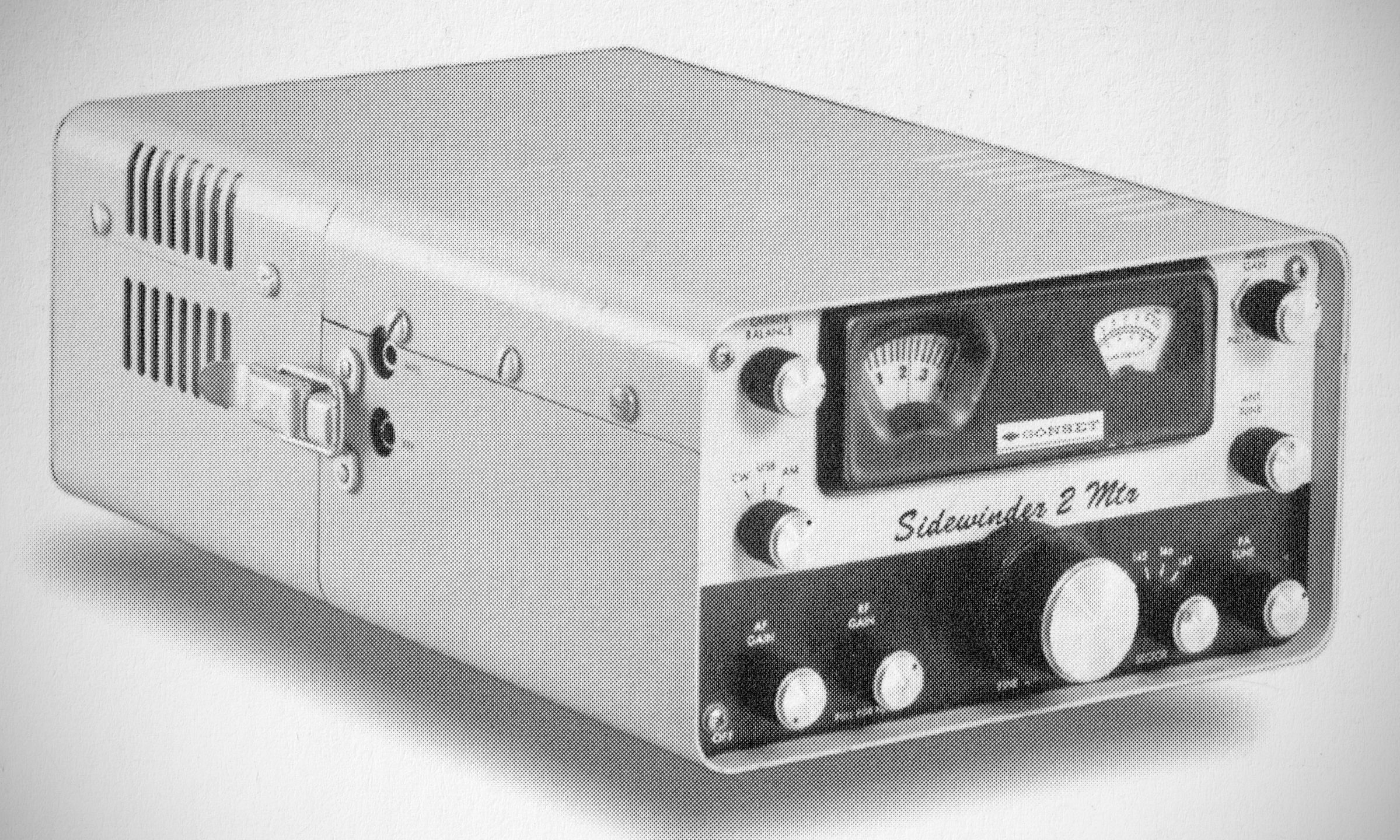

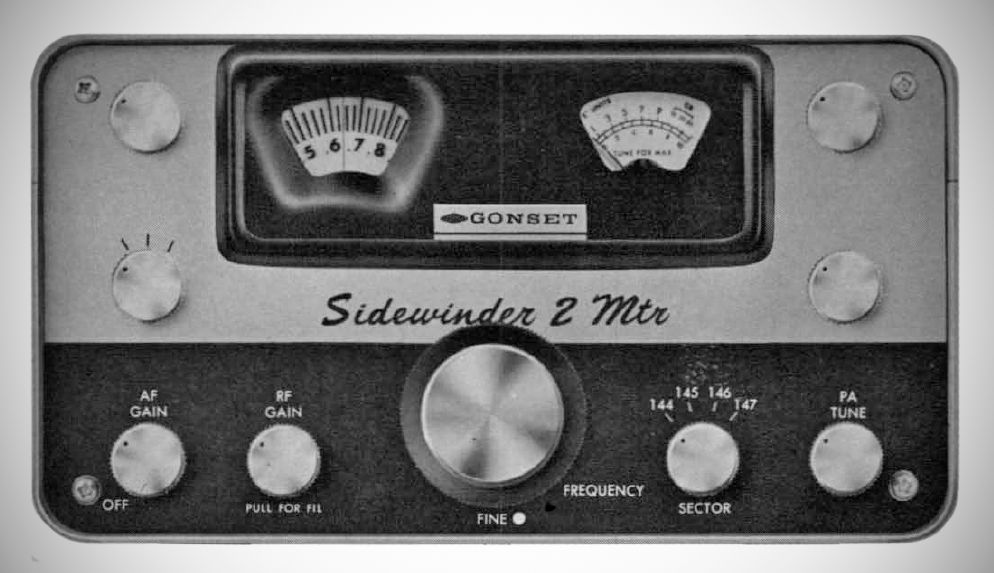

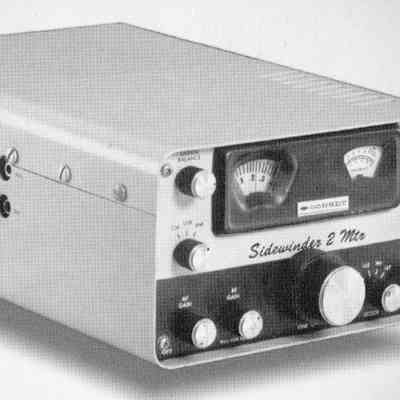

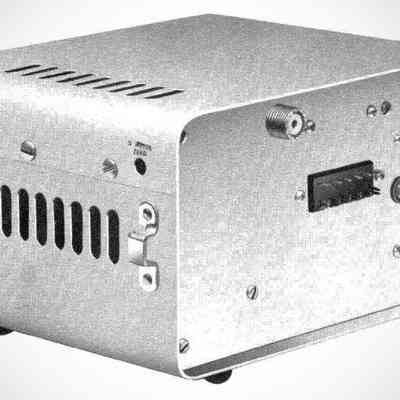

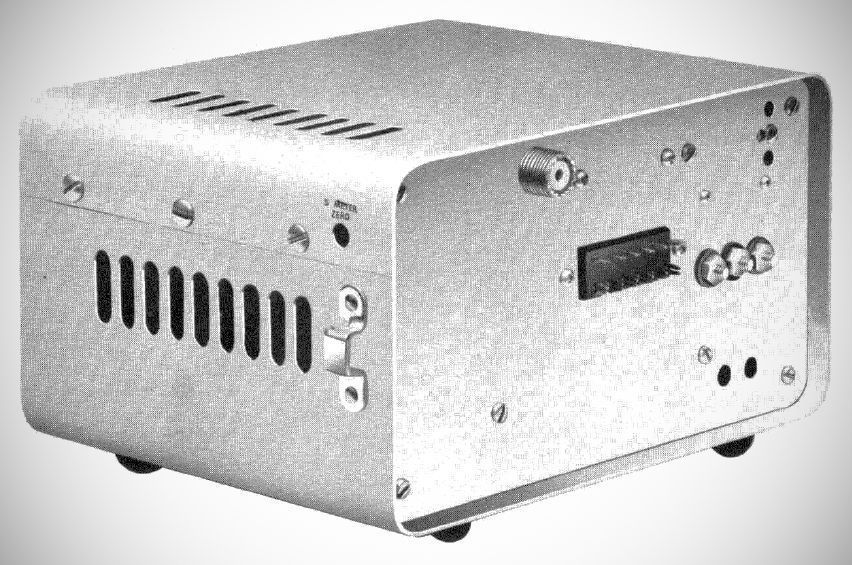

The Gonset Sidewinder SSB, CW, and AM transceiver covered the 2 meter band in four 1 MHz segments. The receiver was completely transistorized. Input power was 20 watts on CW and SSB, 6 watts on AM. The accessory power supply snapped on the back of the transceiver or could be mounted remotely.
Specifications
– Frequency Range: 144 to 148 MHz.
– Frequency Control: High-frequency conversion is crystal controlled.
– Frequency Stability: After a 15-minute warm-up, ambient drift is -50 cycles per 15-minute period (under ambient conditions with transmit filaments on causing chassis heat rise). The temperature coefficient is 300 cycles for a 10° change.
– Final Stage: Uses a link-coupled final amplifier.
– Emission Modes: Supports AM, SSB, and CW.
– Power Input to Final Amplifier: 20 Watts PEP on SSB, and 6 Watts on AM.
– Spurious Suppression: Rated at -50 db.
– Unwanted Sideband Suppression: 40 db on SSB.
– Carrier Suppression: Rated at -50 db.
– Audio Response: Covers 300 to 3000 cycles.
– Output Impedance: 50 ohms.
– Sensitivity: 0.5 microvolts for a 10 db signal-plus-noise to noise ratio.
– Intermediate Frequencies (IF): Dual conversion with a 15 MHz first IF and a 9 MHz second IF.
– Spurious Rejection: Rated at -50 db.
– Image Rejection: Rated at -50 db.
– Audio Output: Delivers 3 watts into a 4-ohm load.
– Antenna Input Impedance: 50 ohms unbalanced.
Transmitter Tube Complement:
– 6EA8 Transmit Mixer
– 12BY7 RF Driver:
– 6360 Final Power Amplifier
Power Requirements: 12.6 VDC, 100 watts, 80 amps maximum
117 VAC depending on the connected power supply.
