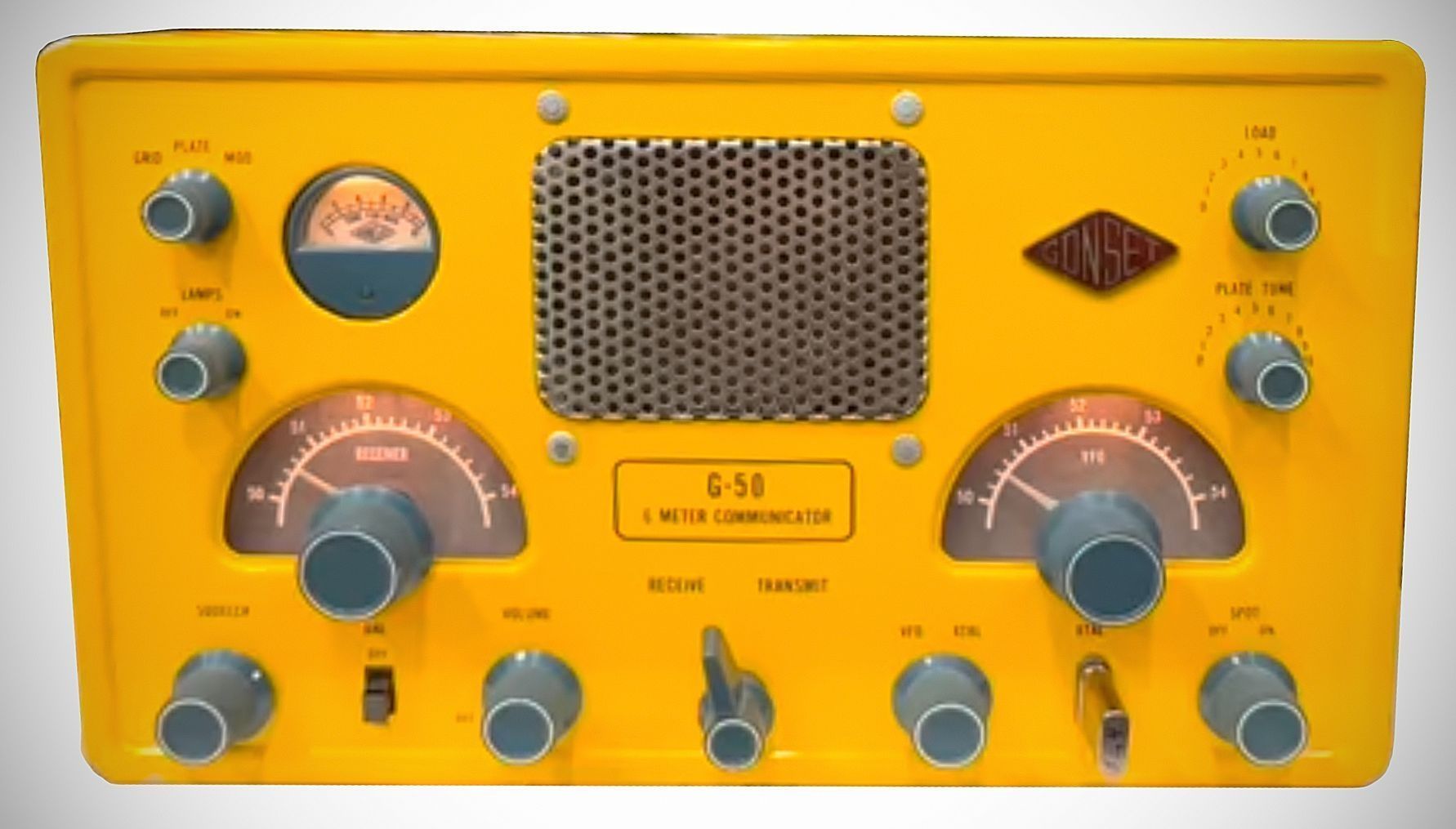

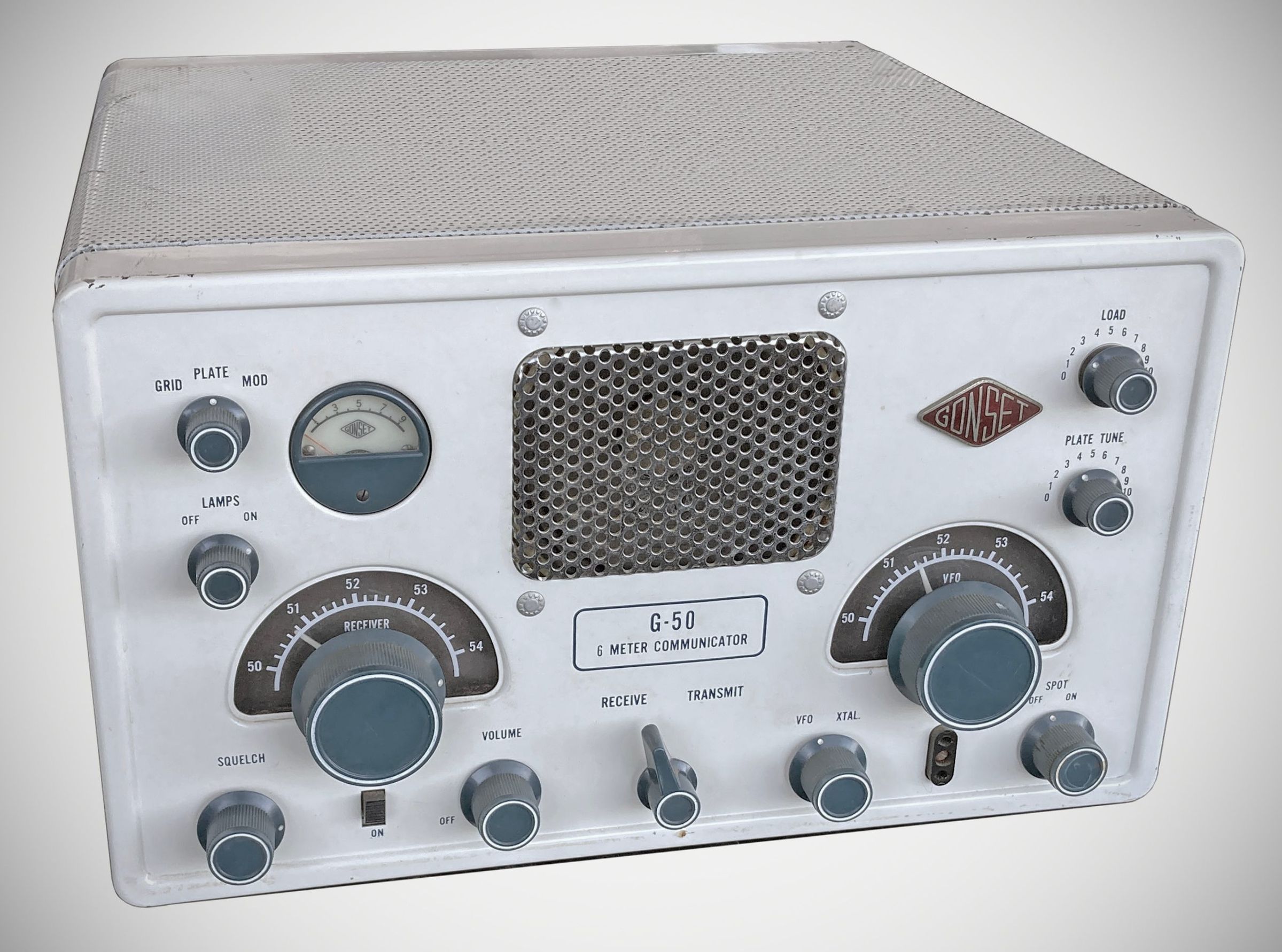

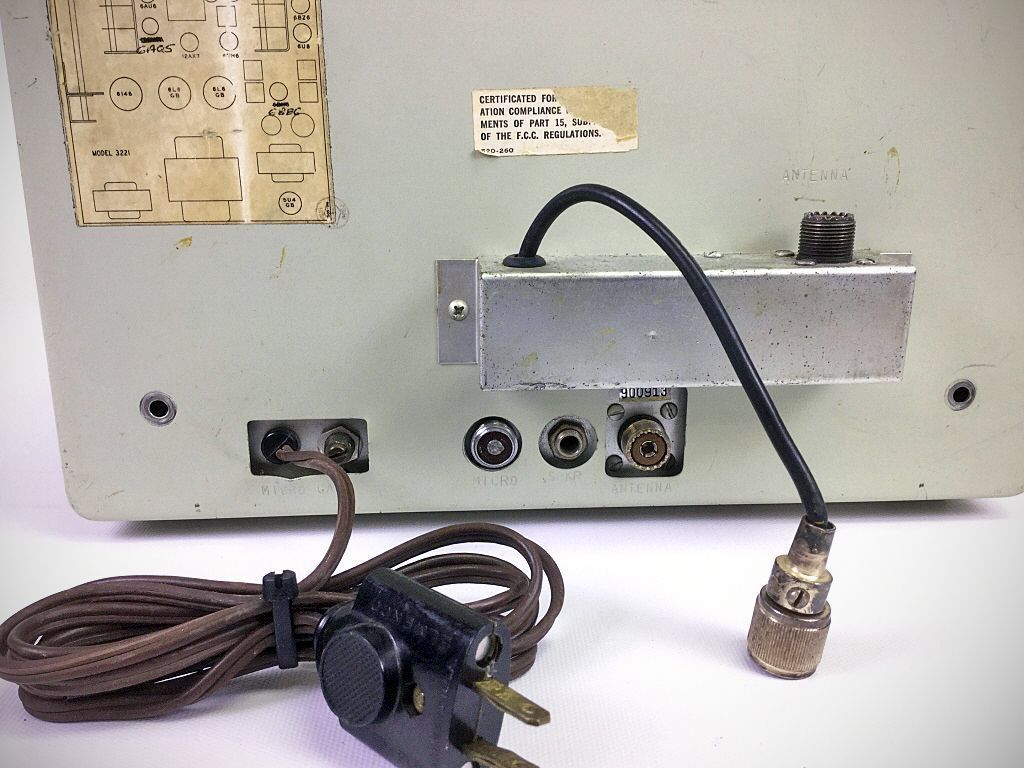

The Gonset G-50 was a complete 50 watt, 6 meter AM station. The transmitter was VFO controlled and both it and the receiver tuned 50-54 MHz. The final amplifier was a 6146. The G-50's 115 VAC supply was built-in.
The transmitter operates with a 48-watt power input utilizing a 6146 final power amplifier tube coupled to a pi-network output circuit. Amplitude modulation is provided by a push-pull pair of 6L6GC modulator tubes.
The multiplier stages are ganged and tracked directly with a calibrated VFO, though crystal control can also be used. A VFO spotting switch is included to allow precise zero-beating on target frequencies.
For harmonic suppression, a built-in low-pass filter attenuates spurious emissions and harmonics above 65 MHz by at least 80 dB.
The panel meter can be switched to measure final amplifier grid current, final amplifier plate current, or modulator plate current.
The receiver section utilizes a dual-conversion design to achieve high image rejection along with a 7 kHz selectivity bandwidth. It includes a dedicated RF stage to maintain a low signal-to-noise ratio and high sensitivity on the 6-meter band. Additional front-panel controls and features include:
Features
– Adjustable squelch control.
– Noise limiter circuit.
– Dedicated "S" meter for signal strength indication.
– A calibrated "full-vision" dial driven by a planetary vernier drive mechanism.
Visually identical to the G-28.
Civil Defense variant (Model 3300), $389.95.
Specifications
– Frequency Coverage: 50.0 – 54.0 MHz.
– Type of Modulation: A-3 (AM)
– PA Power Input: 48 watts
– PA Power Output: 27 watts (nominal)
– Modulation Capability: 90 – 95% (with integral speech clipping)
– Output Impedance: 50–70 ohms unbal.
– Frequency Control: Internal VFO or XTAL
– Signal-plus-noise to noise ratio: 6 db with 2 uV input
– Image Ratio: Better than 200 X (46 db down)
– Overall Selectivity: 6 db. down at 7 kHz.
– Antenna Impedance: 50–70 unbalanced.

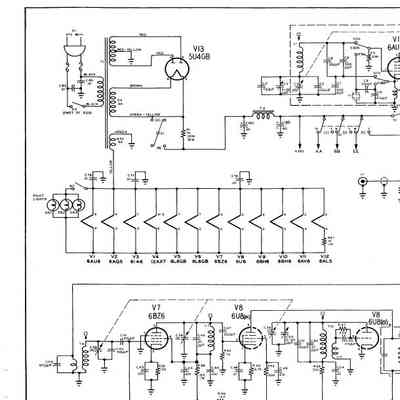

Tube Complement (12 total)
– 6AU6: Transmitter variable-frequency oscillator-tripler
– 6AQ5: Transmitter frequency doubler
– 6146: Transmitter Power Amplifier
– 12AX7: Transmitter Microphone Amplifier (one triode section) / Transmitter and receiver audio amplifier (one triode section)
– (2) 6L6GB: Transmitter Modulators / Receiver Audio Power Amplifiers
– 6BZ6: Receiver RF Amplifier
– 6U8: Receiver 1st mixer (pentode section) / Receiver high-frequency oscillator (triode section)
– 6BE6: Receiver second converter
– 6BH6: Receiver 455 kc I.F. amplifier
– 6AV6: Receiver Second detector (one diode section) / Receiver AVC Protector (one diode section) / Receiver 1st audio amplifier (triode section)
– 6AL5: Automatic noise limiter (one diode section) / Squelch limiter (one diode section)
Power requirements: 115 VAC, 60 Hz
