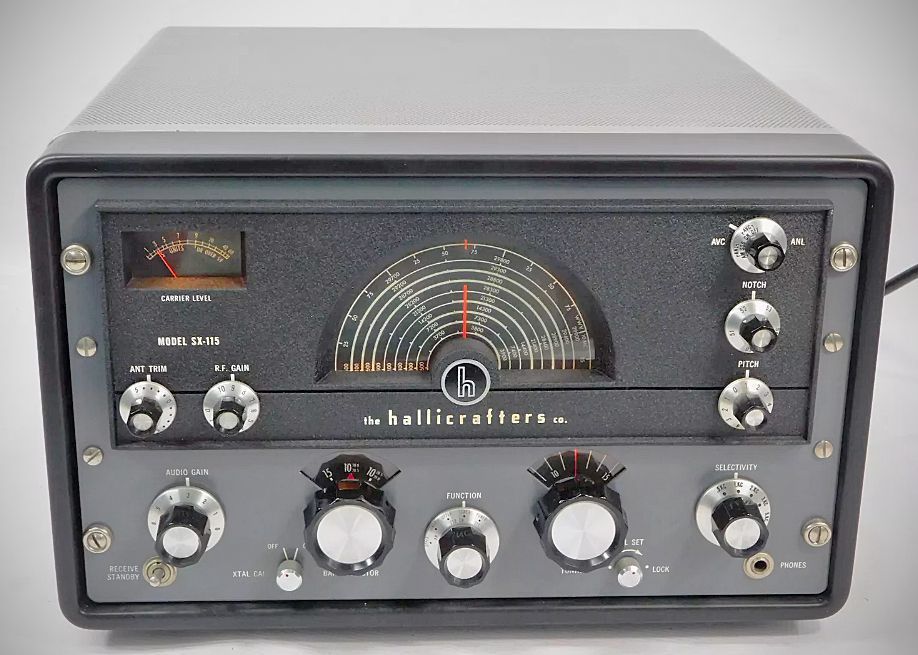

The Hallicrafters Model SX-115 is an amateur radio communications receiver delivered in 1961. Designed as a high-performance, heterodyne-type triple-conversion receiver, it offers linear tuning, precise readout capability, and stable reception across the major amateur HF bands.
Features
Selectable Sidebands: Upper or lower sideband selection is accomplished during the third conversion stage by switching the crystal-controlled conversion oscillator frequency between 955 KC and 1055 KC.
T-Notch Filter: Provides adjustable nulling within the 50.75-KC passband to eliminate heterodyne interference.
Dual-Loop Amplified AVC: Features fast-attack and slow-release characteristics; AVC action improves effective front-end selectivity.
Noise Limiting: Incorporates an IF-type noise limiter for SSB/CW modes and an automatic series-threshold noise limiter for AM reception.
Frequency Coverage: Covers the 80, 40, 20, 15, and 10-meter amateur bands (with the 10-meter band split into four 500-KC segments covering 28.0 to 30.0 MC), plus a non-calibrated segment for WWV at 9.6 MC to 10.1 MC.
Modes of Reception: AM, CW, and Single Sideband (SSB).
Specifications
Sensitivity: Less than 0.5 microvolts for SSB/CW; less than 1.0 microvolt for AM (for a 10 dB signal-to-noise ratio).
Intermediate Frequencies (IF): Triple-conversion arrangement utilizing 6.505 MC to 6.005 MC (variable IF), 1005 KC (second IF), and 50.75 KC (third IF).
Selectivity: Variable in five distinct steps providing 0.5, 1, 2, 3, and 5 KC bandwidths at 6 dB down.
Calibration Accuracy & Readout: Features a gear-driven tuning mechanism, 1-KC dial calibration marks across all bands, and better than 1000-cycle accuracy between 100-KC calibration points.

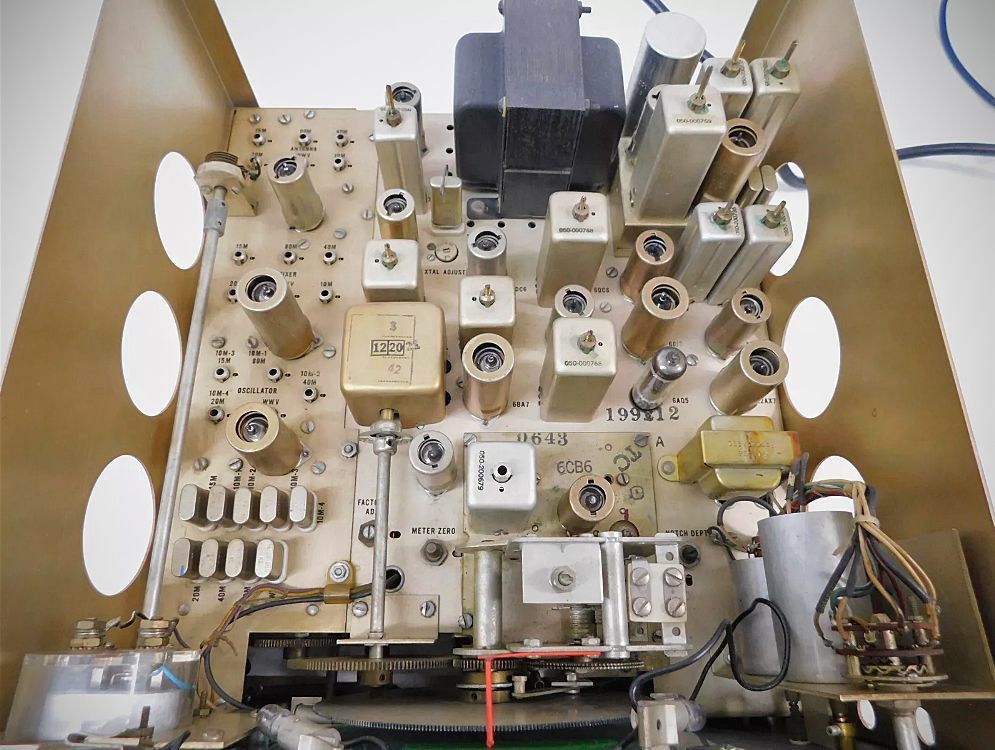

Tube Lineup

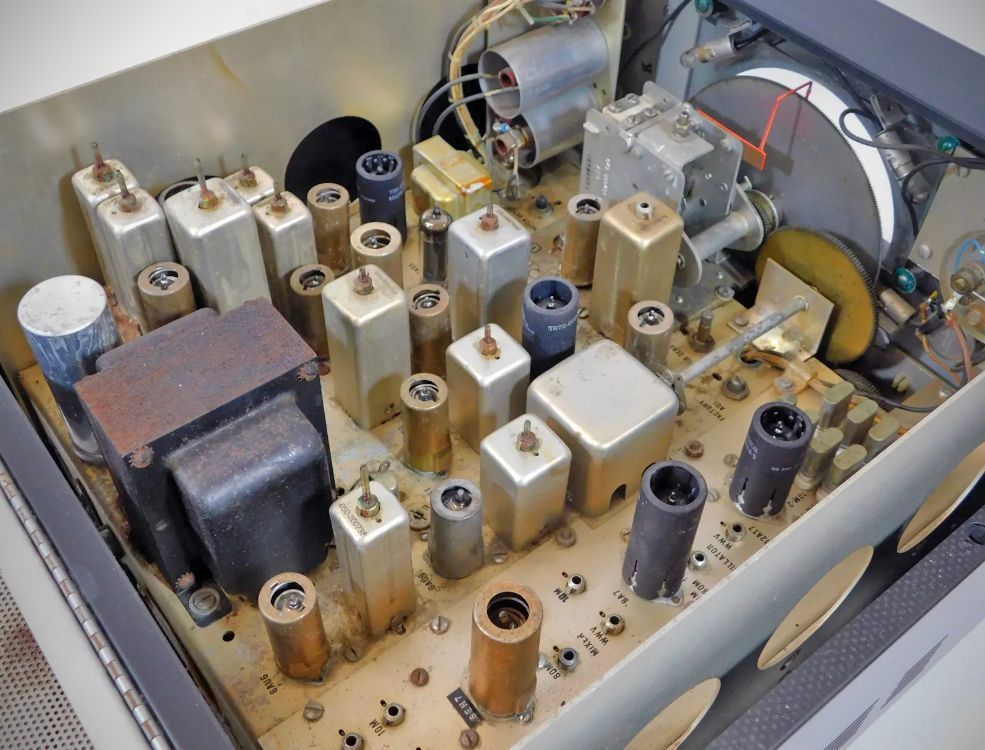

The receiver uses 18 vacuum tubes (including a voltage regulator) along with 5 silicon diodes:
– 6DC6 RF Amplifier.
– 6BA7 First Mixer,
– 12AT7 Crystal Oscillator for the first conversion.
– 6DC6 First IF stage (6.0 MC to 6.5 MC).
– 6CB6 VFO
– 6BA7 Second Mixer, f
– 6DC6 Second IF Amplifier at 1005 KC.
– 6BA6 Third Mixer
– 12AT7 SSB Switching Oscillator (955 KC / 1055 KC).
– 6DC6 Third IF Amplifier operating at 50.75 KC.
– 6BY6 Product Detector
– 6BJ7 AM detection, second AVC rectifier, automatic threshold noise limiting.
– 12AX7 BFO and First Audio Amplifier.
– 6AQ5 Audio Output stage
– 6AU6 100-KC Crystal Calibrator,
– 6AU6 S-Meter Amplifier and First Loop AVC Amplifier.
– 0A2 Voltage Regulator

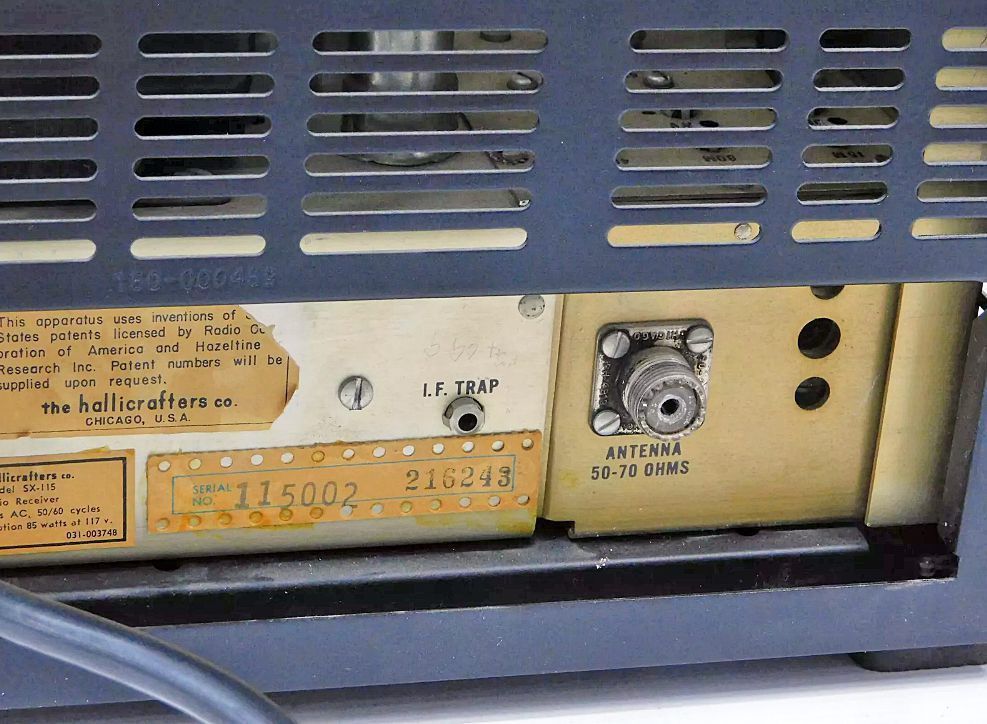

Power Requiements: 105–125 VAC, 50/60 Hz, 85 watts.
References
Review: QST, Mar 1962, p. 54.

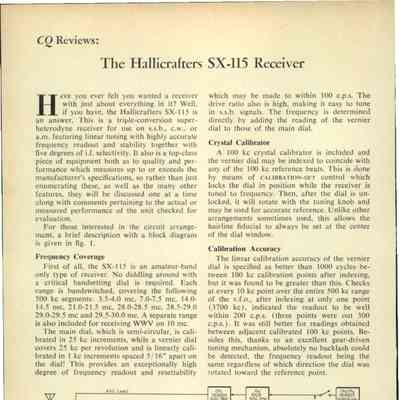

Review: CQ, Mar 1964, p. 48.
